Delta C2000 Plus Series User Manual

Chapter 7 Optional AccessoriesC2000 Plus
7-65

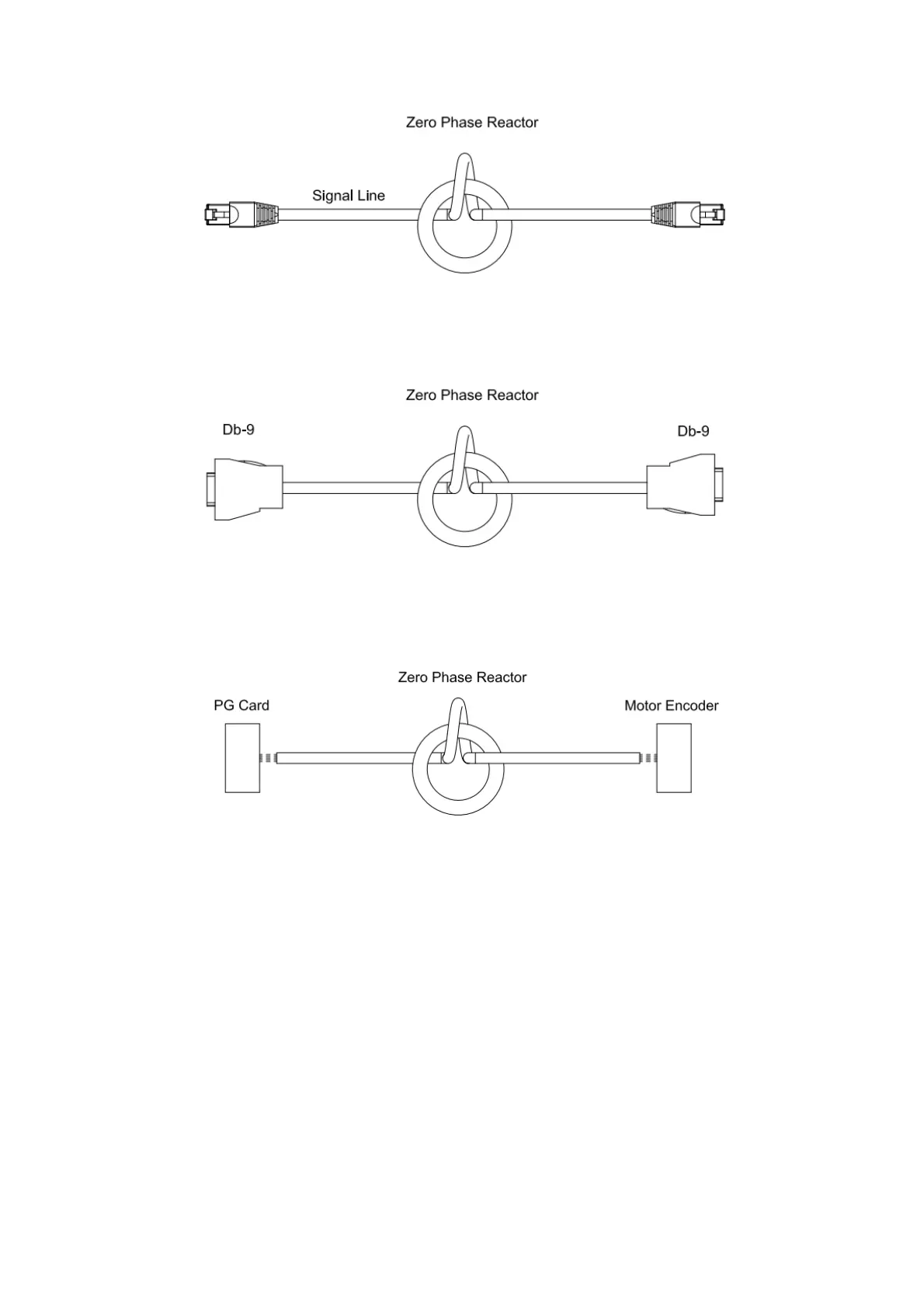

Diagram C
Figure 7-41
Diagram D
Figure 7-42
Diagram E
Figure 7-43
NOTE:
1. The table above gives approximate wire size for the zero phase reactors but the selection is ultimately
governed by the type and diameter of cable fitted, i.e. the cable must fit through the center hole of zero
phase reactors.
2. Only the phase conductors should pass through, not the earth core or screen.
3. For the zero phase reactor used for signal cables, it is recommended to install near to the driver and
well fixed, as to prevent vibration and pulling of the cable.
