Chapter 9 Specification C2000 Plus
9-12
9-5 Environment for Operation, Storage and Transportation
DO NOT expose the AC motor drive in the bad environment, such as dust, direct sunlight, corrosive / inflammable gasses,
humidity, liquid and vibration environment. The salt in the air must be less than 0.01mg / cm
2
every year.
Environment
Installation
location
IEC60364-1 / IEC60664-1 Pollution degree 2, Indoor use only
Surrounding
Temperature
(°C)
Storage /
Transportation
-25 – +70
Non-condensation, non-frozen
Rated Humidity
(%)
Operation
Max. 95
Storage /
Transportation
Max. 95
No condense water
Air Pressure
(kPa)
Operation /
Storage
86–106
Transportation
70–106
Pollution Level
IEC 60721-3-3
Operation
Class 3C3; Class 3S2
Storage
Class 1C2; Class 1S2
Transportation
Class 2C2; Class 2S2
If the AC motor drive is to be used under harsh environment with high level of contamination
(e.g. dew, water, dust), make sure it is installed in an environment qualified for IP54 such as in
a cabinet.
Altitude
Operation
If the AC motor drive is installed at an altitude of 0–1000 m, follow normal
operation restrictions. For altitudes of 1000–2000 m, decrease the drive’s
rated current by 1% or lower the temperature by 0.5°C for every 100 m
increase in altitude. The maximum altitude for corner grounding is 2000 m.
Package Drop
Storage
ISTA procedure 1A (according to weight) IEC60068-2-31
Transportation
Vibration
1.0 mm, peak to peak value range from 2 Hz to 13.2 Hz; 0.7–1.0G range from 13.2 Hz to 55 Hz; 1.0G range
from 55 Hz to 512 Hz. Comply with IEC 60068-2-6
Impact IEC / EN 60068-2-27
Operation
Position
Max. allowed offset angle 10
o
(under normal
installation position)
10 10

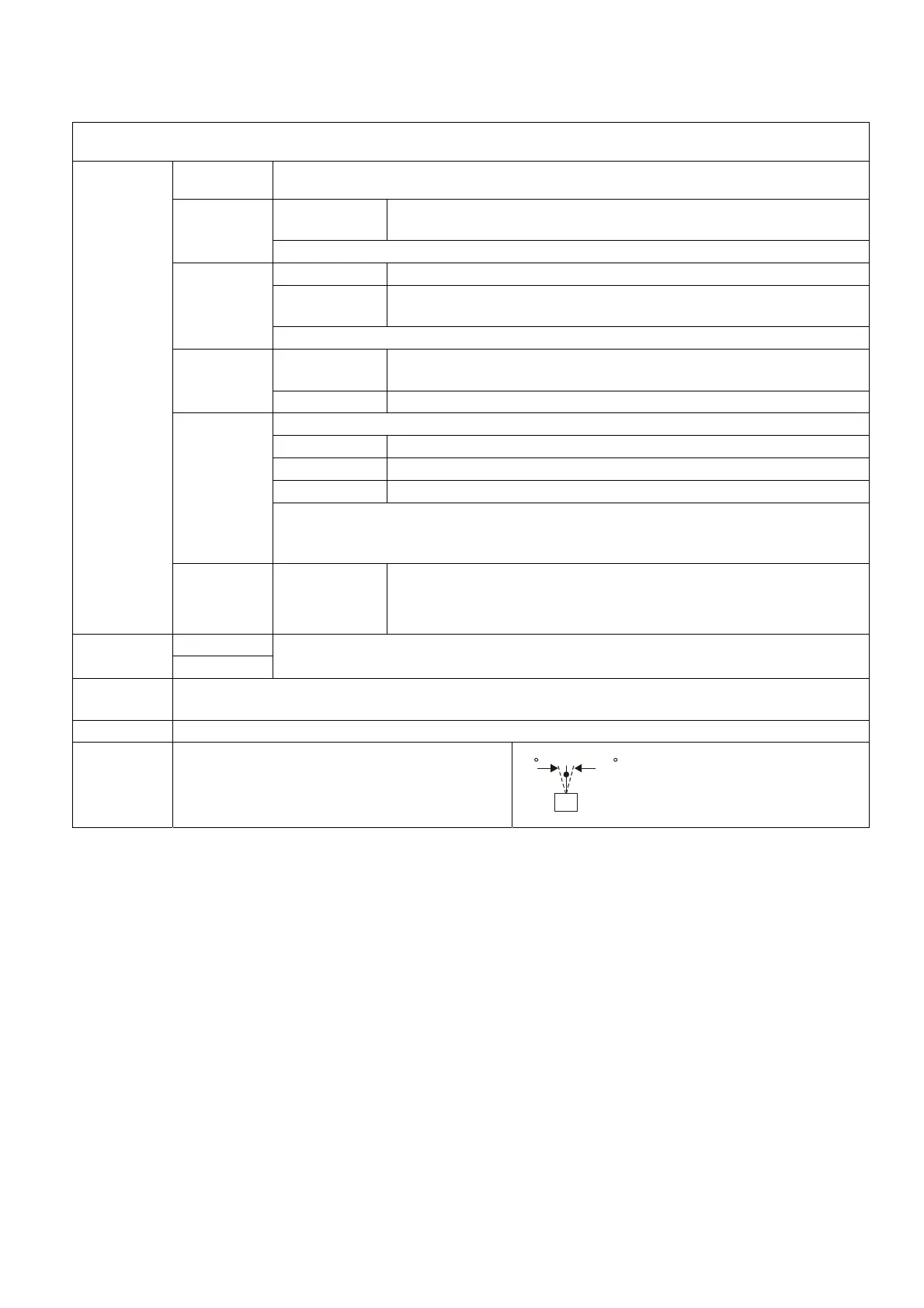

Table 9-9
