DVP-ES3 Series Operation Manual
6-6
6.4.2
Setting the Parameters

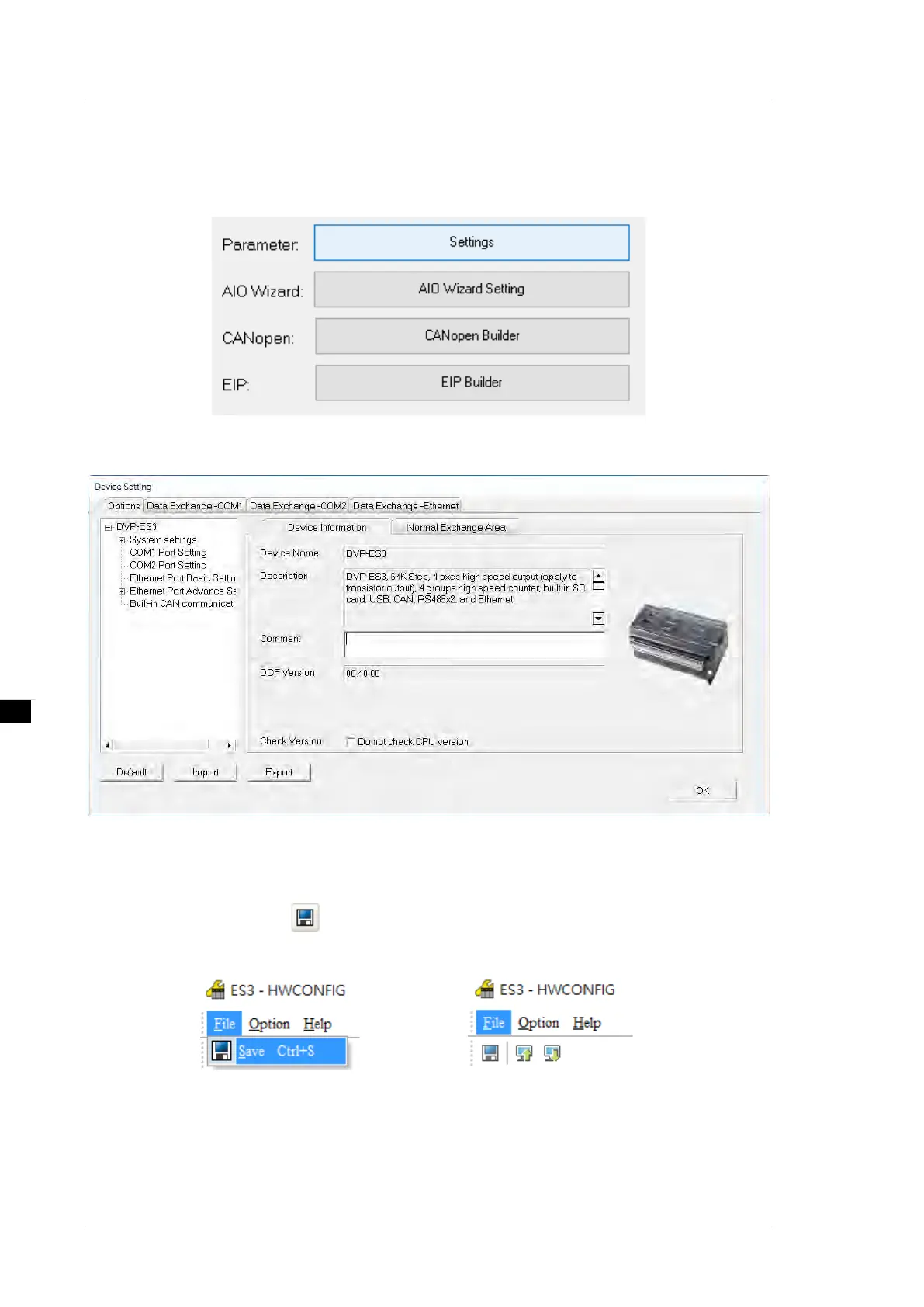

After you double-click the CPU module or the extension module, the Device Setting dialog box appears with
the module information.
Click the setting tabs for specific parts of the setup at the top of the window and then select the setting items on
the left for configuration.
When the hardware configuration is complete, download the configuration and the settings to the CPU module.
Save the configuration and settings, and you can download them with the program later in the project.
On the File menu, click Save or on the toolbar to save the configuration and settings, and then close the
HWCONFIG window.
or
*. Refer to Chapter 8 for more information about HWCONFIG.
