DVP-ES3 Series Operation Manual
2-27
_2
2.6 Extension Cable Interface Module Specifications
2.6.1 General Specifications
DVPAEXT01-E2 (DVPAEXT1R-E2 + DVPAEXT1L-E2) is an extension cable interface module. The extension
distance is 0.7 meters. DVPAEXT01-E2 is only applicable to the connection between DVP-ES2/EX2 series
CPU and the DI/DO or AI/AO extension modules, and the installation does not count as any digital extension
point or analog module.
Model
Item
DVPAEXT01-E2
DVPAEXT1R-E2 DVPAEXT1L-E2
Weight
50 g 55 g

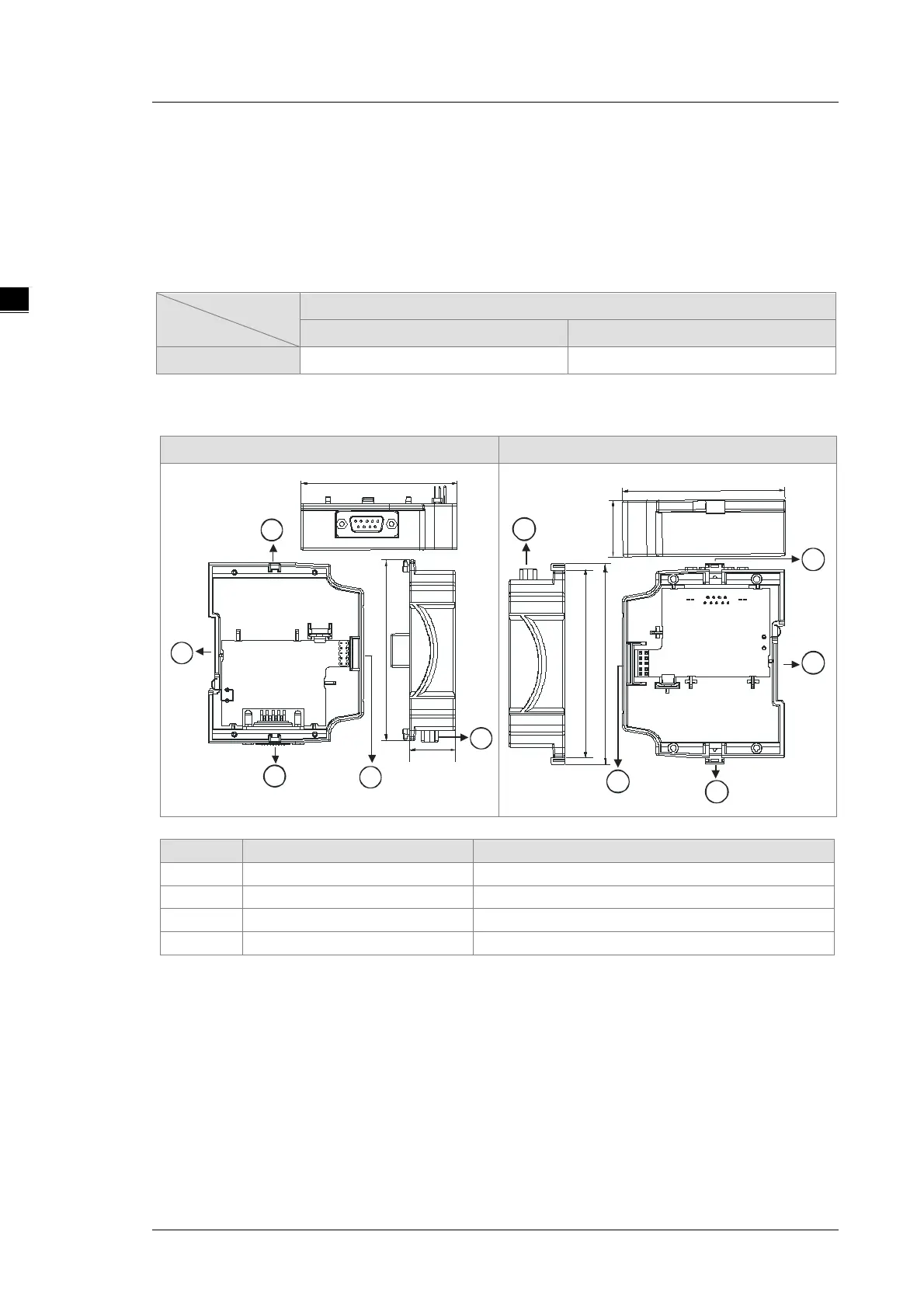

2.6.2 Extension Cable Interface Module Profiles
DVPAEXT1R-E2 (right side, previous one) DVPAEXT1L-E2 (left side, latter one)
78
90
23
1
1
3
2
4
90
96
78
27
4
3
2
1
1
Number
Name
Description
1
I/O module securing clip
Secures the modules
2
External module connection port
Connects the modules
3
DIN rail slot (35 mm)
For the DIN rail
4
Extension cable port
Connects the extension cable
