DVP-ES3 Series Operation Manual
4-24
_4

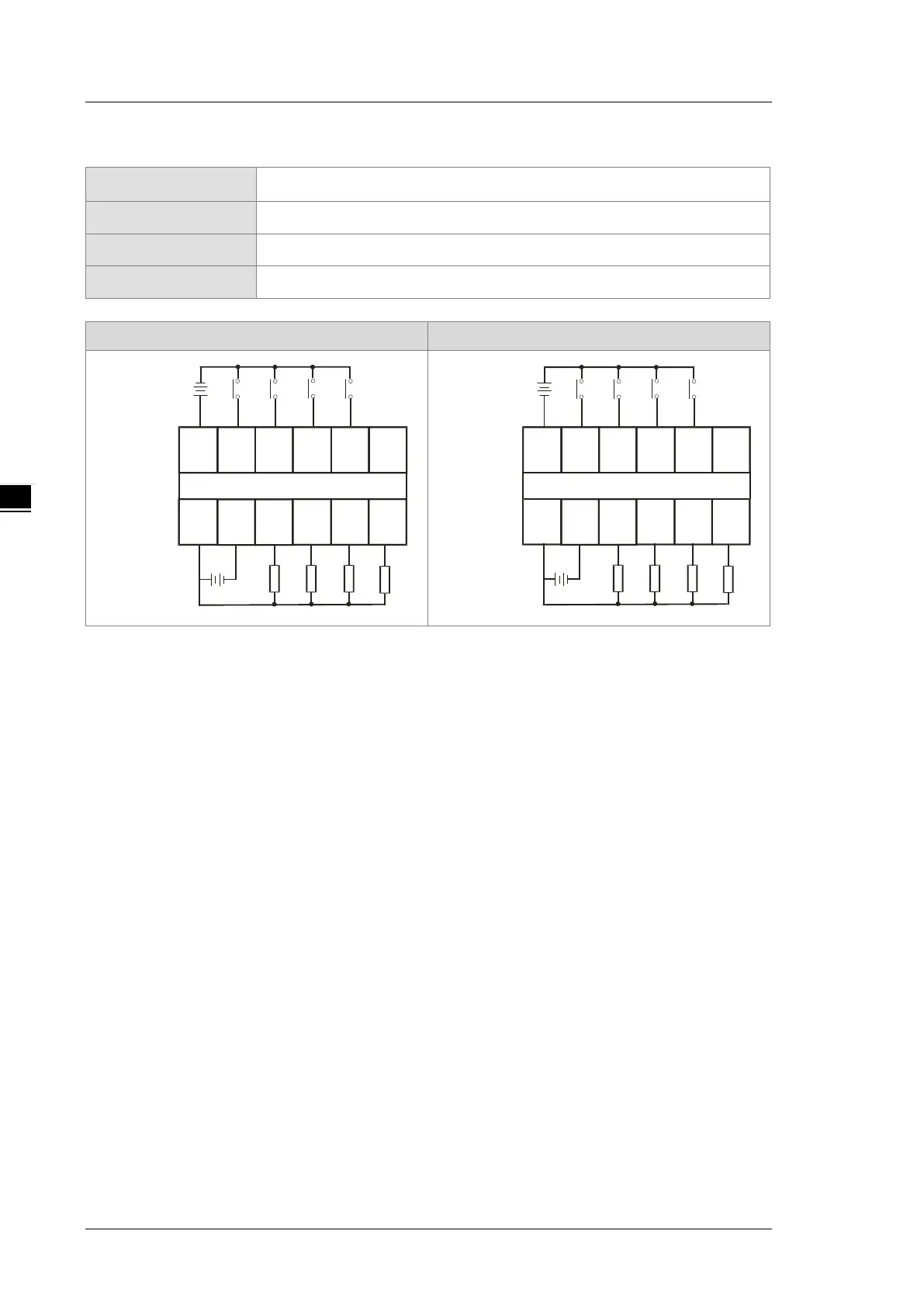

4.7.5 Wiring DVP08XP211T
Input form
Direct current (sinking or sourcing)
Voltage specifications
24 VDC, 5 mA
Output type
Transistor-T (sinking)
Voltage specifications
5 to 30 VDC, 0.5A/output, 4A/COM
Sinking input and output Sourcing input and sinking output
NC
DVP08XP211T ( 4DI/4DO)
OUT
NC
IN
S/S X0 X1 X2 X3
UP Y0 Y1 Y2 Y3ZP
NC
DVP08XP211T ( 4DI/4DO)
OUT
NC
IN
S/S X0 X1 X2 X3
UP Y0 Y1 Y2 Y3ZP
Note: You need to add external power supply 24 VDC (-15% ~ +20%) for UP and ZP; power consumption is up
to 5 mA.
