AVR-1909/789, AVC-1909

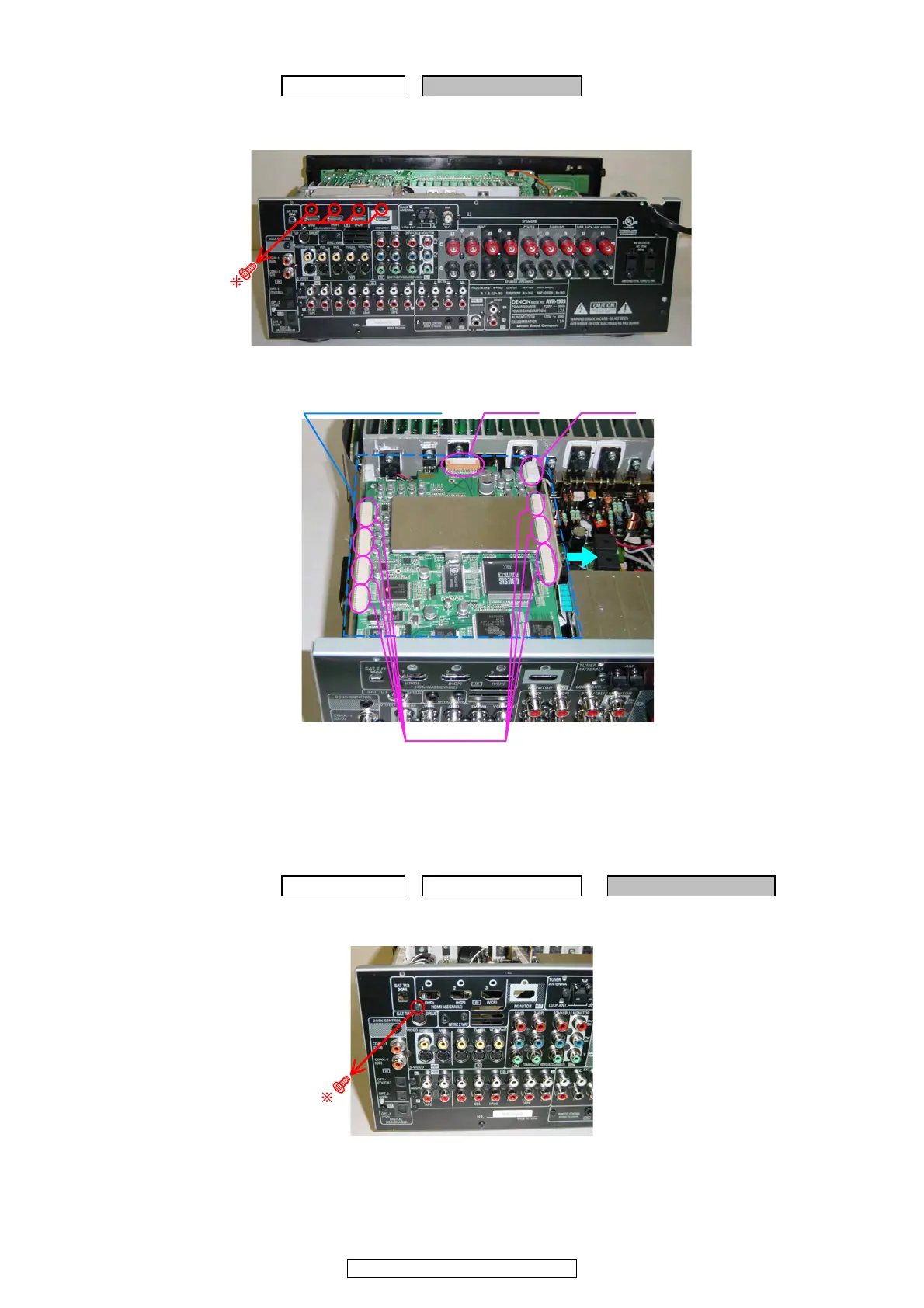

2. HDMI P.W.B.ASSY

(1) Remove the screws.（ねじをはずす。）

(2) Disconnect the connector wires and boards.（コネクタワイヤーとコネクタボードをはずす。）

3. SIRIUS P.W.B ASSY

(1) Remove the screw.（ねじをはずす。）

proceeding (手順): CABINET TOP → HDMI P.W.B ASSY

Picture B

HDMI P.W.B ASSY

Board to board

CP1007 CP1005

proceeding (手順): CABINET TOP → HDMI P.W.B ASSY → SIRIUS P.W.B ASSY

Picture B
