Denon AVR-1909 Service Manual

12
AVR-1909/789, AVC-1909

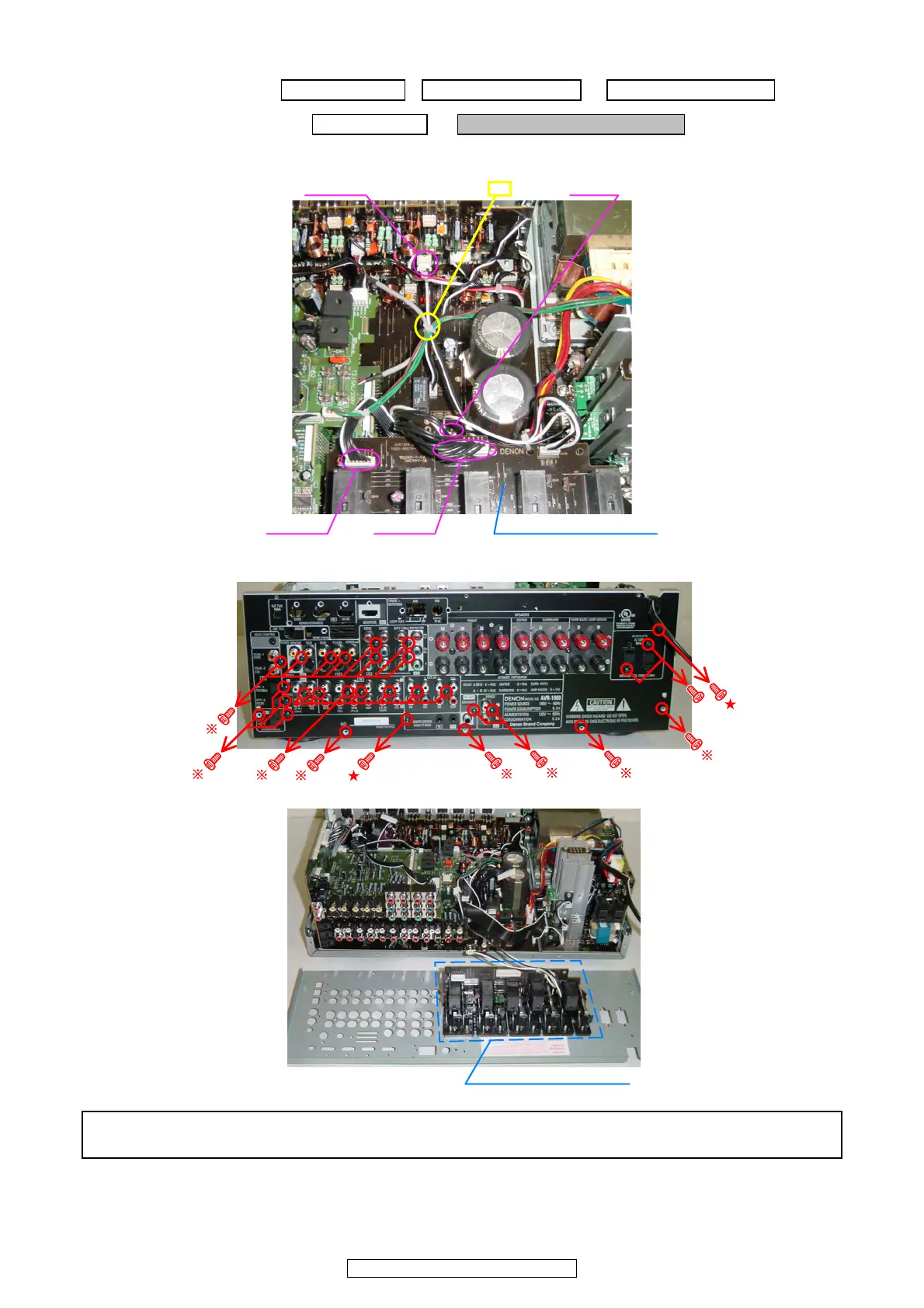

5. CHASSIS BACK SUB ASSY
(1) Disconnect the connector wires. （コネクタワイヤーをはずす。）
(2) Remove the screws.（ねじをはずす。）
proceeding (手順): CABINET TOP → HDMI P.W.B ASSY → SIRIUS P.W.B ASSY
→ TUNER PACK → CHASSIS BACK SUB ASSY
Top view
cut
CP103 CP101
CP102B CP103
SPEAKER P.W.B ASSY
ً
Picture B
Picture B
SPEAKER P.W.B. ASSY
Please refer to "EXPLODED VIEW " for the disassembly method of each P.W.B included in CHASSIS BACK SUB ASSY .
CHASSISBACKSUBASSY の各基板のはずしかたは "EXPLODEDVIEW" を参照してください。

Denon AVR-1909 Specifications

General

Speakers connectivity type	-
HDMI version	1.3a
Product color	Black
x.v.Color support	Yes
Receiver type	Surround
Frequency range	10 - 100000 Hz
Audio output channels	7.1 channels
Power output per channel (1KHz@6 Ohm)	120 W
Power output per channel (20-20KHz@8 Ohm)	90 W
HDMI in	3
Number of HDMI outputs	1
Ethernet LAN	No
