Denon AVR-1909 Service Manual

8
AVR-1909/789, AVC-1909
1. PANEL FRONT SUB ASSY
(1) Remove the screws.（ねじをはずす。）
(2) Disconnect the connector wires.（コネクタワイヤーをはずす。）
Front side
Picture B
Picture A
Picture C
Picture D
Top view

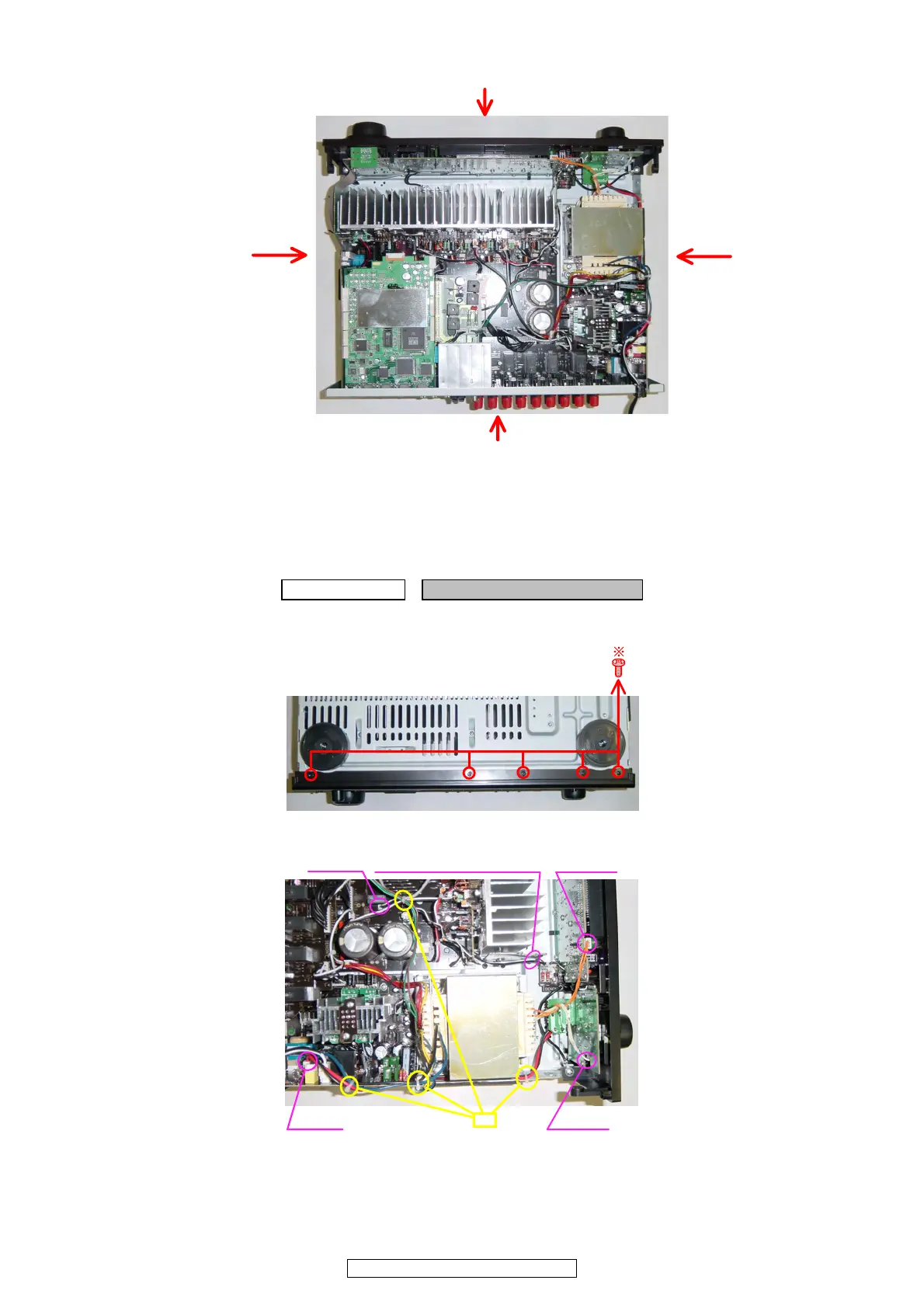

The viewpoint of each photograph
(photography direction)
各図の視点(撮影方向)
proceeding (手順): CABINET TOP → PANEL FRONT SUB ASSY
Bottom view
CORD HOLDER : Loose
CP541
CP503
CP302
CN301
Top view
cut
