Denon AVR-1909 Service Manual

Name: Denon AVR-1909
Brand: Denon
Rating: 4 (1 reviews)

161 pages

To Next Page

To Previous Page

AVR-1909/789, AVC-1909

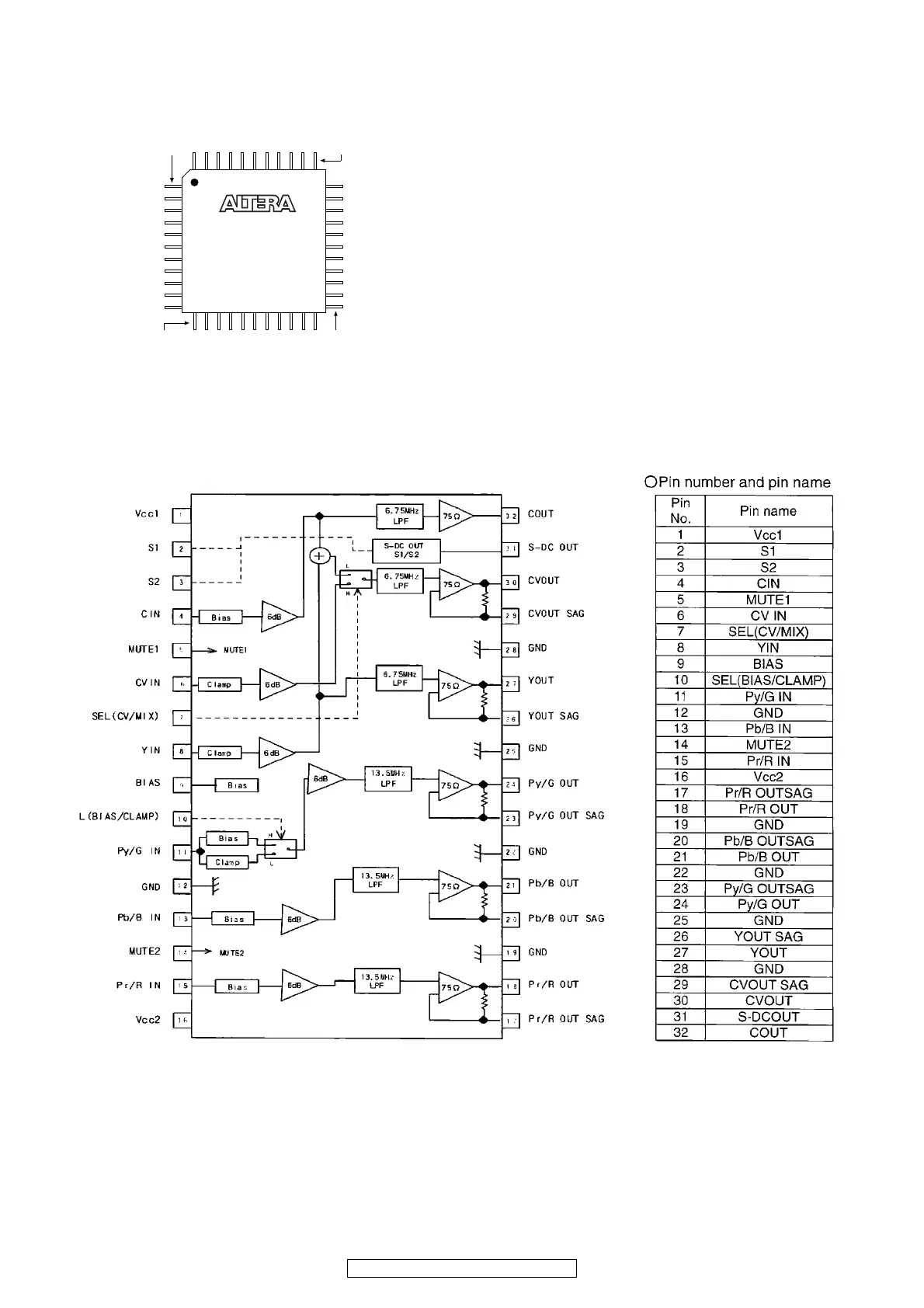

EPM3032A-TC44 (IC1029)

BH7868 (IC1080)

Pin 12 Pin 23

Pin 34

Pin 1

I/O

VCC

INPUT/OE2/GCLK2

INPUT/GCLRn

INPUT/OE1

INPUT/GCLK1

GND

I/O

I/O/TDO

I/O

GND

VCC

I/O

I/O/TCK

I/O

GND

I/O

GND

VCC

I/O

I/O/TDI

I/O

GND

I/O

I/O/TMS

I/O

VCC

I/O

GND

EPM3032A

EPM3064A
