Denon AVR-1911 Service Manual

11

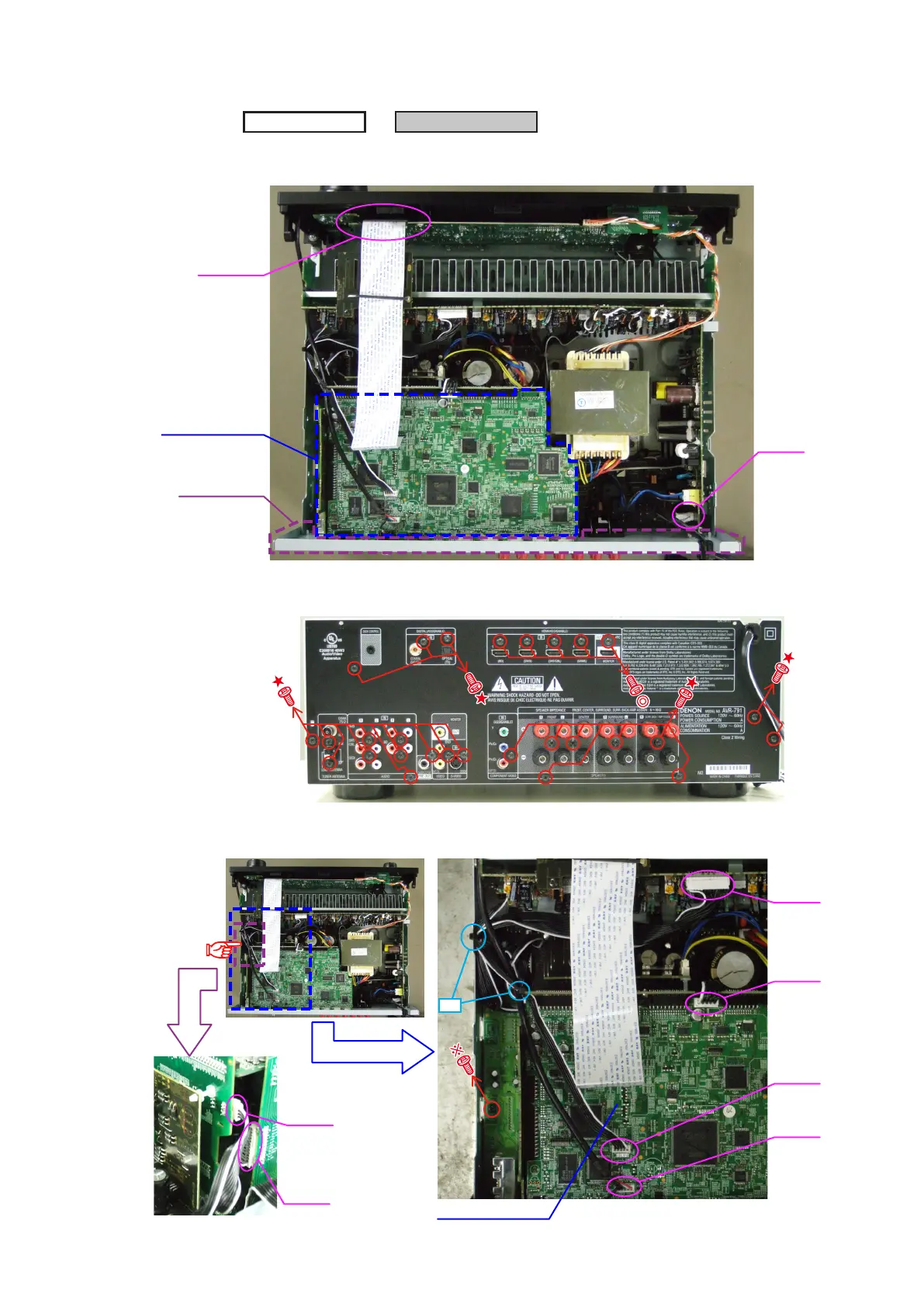

4. HDMI UNIT ASSY
(1) DisconnecttheconnectorwireandFFCcable.
(2) Removethescrews,thenremovetheBACKPANEL.
(3) Cutthewireclampband,thendisconnecttheandconnectorwires.Removethescrew.
CABINET TOP
HDMI UNIT ASSY
→
Proceeding :
BACK PANEL
HDMI UNIT ASSY
CX100
FFC cable
Direction of photograph: A
CP401
N2501
N2706
N4401
HDMI UNIT ASSY
cut
CP13B
CP13A

Denon AVR-1911 Specifications

General

Frequency range	10 - 100000 Hz
Audio output channels	7.1 channels
Audio A/D Converter (ADC)	24-bit/96kHz
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.8 %
HDMI	Yes
Audio system	Dolby TrueHD, Dolby Digital Plus, Dolby Digital EX, Dolby Pro Logic II, Dolby Pro Logic IIx, Dolby Pro Logic IIz, DTS-HD, DTS 96/24
Output power	125 W
Dimensions (WxDxH)	434 x 381 x 171 mm
Power requirements	AC 230, 50 Hz
HDMI ports quantity	5
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
I/O ports	1 x Component in 1 x Composite Monitor out 1 x USB 1 x Microphone 1 x FM Tuner Antenna 1 x AM Tuner Antenna
Connectivity technology	Wired
Headphone outputs	7
Digital audio optical in	1
Product color	Black
Power consumption (standby)	0.1 W
Power consumption (typical)	460 W

Weight and Dimensions

Weight	10200 g
