Denon AVR-1911 Service Manual

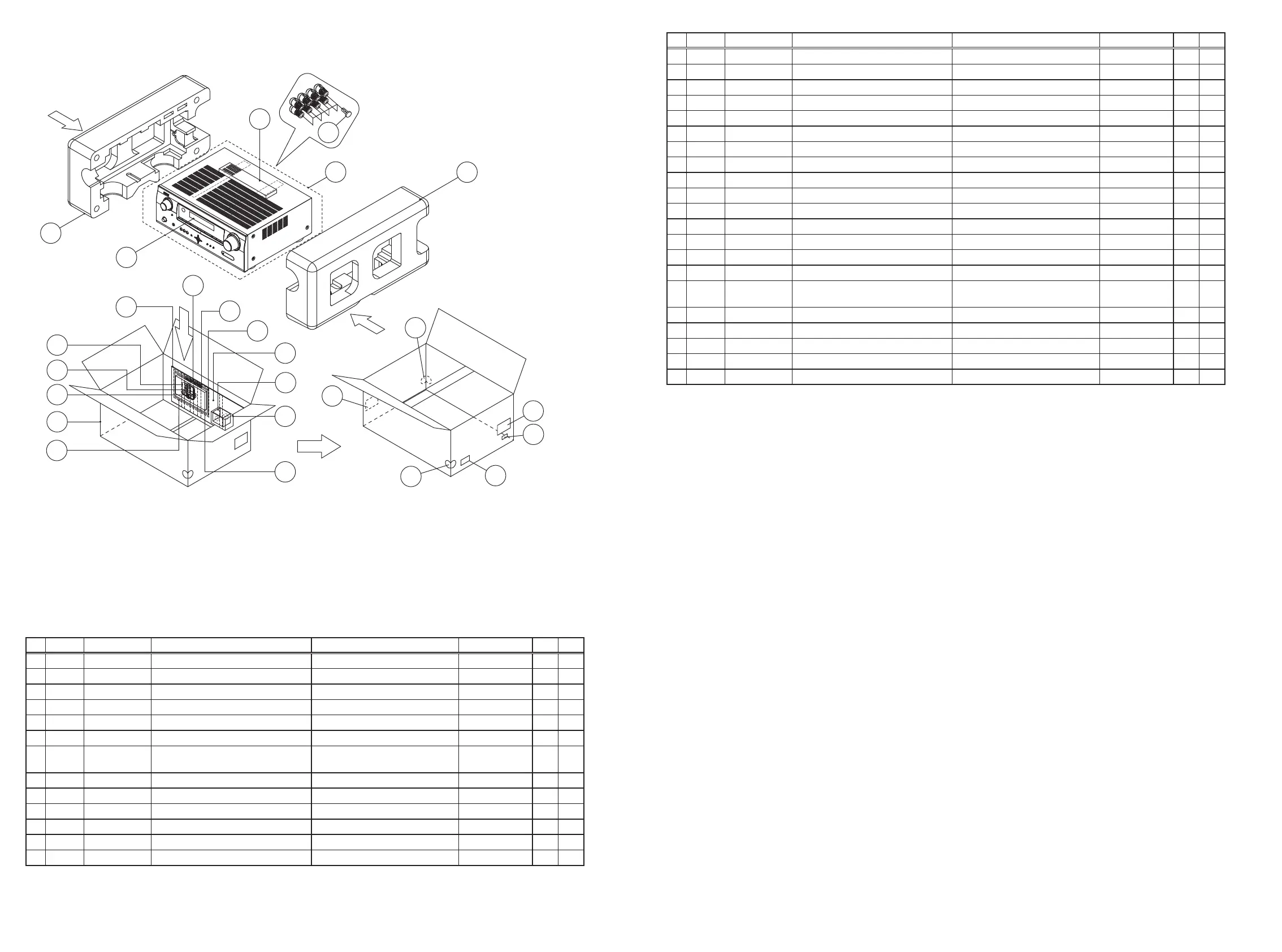

PACKING VIEW
s
PARTS LIST OF PACKING & ACCESSORIES
s
zParts for which "nsp" is indicated on this table cannot be supplied.
zPart indicated with the mark " ★ " is not illustrated in the exploded view.
zThe parts listed below are for maintenance only, might differ from the parts used in the unit in appearances or dimensions.
Note: The symbols in the column "Remarks" indicate the following destinations.
1911E3 : U.S.A. & Canada model 1911E2 : Europe model 1911E1C : China model
791E3 : U.S.A. & Canada model 791EA : Australia model
BK : Black model SP : Premium Silver model
Ref. No. Part No. Part Name Remarks Q'ty New
1 - set - -
2 541110418009D INSTRUCTION MANUAL 791BKE3 5707000003780S 1 *
2 541110420002D INSTRUCTION MANUAL 791BKEA 5707000003790S 1 *
2 541110417006D INSTRUCTION MANUAL 1911BKE3 5707000003800S 1 *
2 541110419002D INSTRUCTION MANUAL 1911SPE2,1911BKE2 5707000003810S 1 *
2 541110421005D INSTRUCTION MANUAL 1911SPE1C 5707000003830S 1 *
3 963116010250S ANTENNA LOOP AM
1911SPE2, 1911BKE2,1911SPE1C,
791BKE3,791BKEA
E601016000010S 1
3 963116011270S ANTENNA LOOP AM 1911E3 : for HD Radio E601016400010S 1
4 963116010260S ANTENNA WIRE FM E605010070001S 1
5 307010070004D REMOCON RC-1146 8300114600010S 1 *
6 nsp POLY BAG 1911BKE3,1911SPE1C,791BKE3 6330000240000S 1
6 nsp POLY BAG 1911SPE2,1911BKE2,791BKEA 6330000240000S 2
7 963533010090D CUSHION SNOW L/R 6230212814000S 1 *
DENON
DENON
1
2
12
3
6
6
E2,EA model
E2,E1C,EA
model
E2,EA model
SP model
SP model
E1C model
E1C model
15
16
8
7
18
18
19
7
5
13
17
4
11
9
14
21
12
20
10
Ref. No. Part No. Part Name Remarks Q'ty New
8 963531010080D BOX GIFT 791BKE3 6007211690100S 1 *
8 963531011390D BOX GIFT 791BKEA 6007211730180S 1 *
8 963531011400D BOX GIFT 1911BKE3 6007211730190S 1 *
8 963531011410D BOX GIFT 1911SPE2,1911BKE2 6007211730200S 1 *
8 963531011420D BOX GIFT 1911SPE1C 6007211730210S 1 *
9 nsp WARRANTY CARD 1911BKE3,791BKE3 5727000003002S 1
9 nsp WARRANTY CARD 1911SPE1C 5777001670010S 1
10 nsp CARD S.S LIST 577700162001GS 1
11 nsp BATTERY DRY (AA) G670001R50190S 2
12 nsp LABEL DENON CONTROL 5507000007000S 1 *
13 nsp PE SHEET SET 6327040059000S 1
14 324010001003D MIC CONDENSER M040000310040S 1
15 nsp PAD BOX BACK 6240210730000S 1
16 963611001490S CORD ASSY 791BKEA L068250100070S 1
16 90M-ZC000600R CORD ASSY 1911SPE2,1911BKE2 L068250160020S 1
17 nsp BUSHING TERMINAL
1911SPE2,1911BKE2,1911SPE1C,
791BKEA
2410040353010S 1
18 nsp COLOR LABEL 1911SPE2,1911SPE1C 5507020170680S 2
19 nsp LABEL PRODUCTION-BOX 1911SPE1C 5507100500970S 1
20 nsp LABEL CRoHS 1911SPE1C 5507000000850S 1
21 nsp POLY BAG ACCESSORY 6330210222000S 1
★
23 nsp LABEL HOT-SURFACE 1911BKE3 5507000003730S 1
-
96

Denon AVR-1911 Specifications

General

Frequency range	10 - 100000 Hz
Audio output channels	7.1 channels
Audio A/D Converter (ADC)	24-bit/96kHz
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.8 %
HDMI	Yes
Audio system	Dolby TrueHD, Dolby Digital Plus, Dolby Digital EX, Dolby Pro Logic II, Dolby Pro Logic IIx, Dolby Pro Logic IIz, DTS-HD, DTS 96/24
Output power	125 W
Dimensions (WxDxH)	434 x 381 x 171 mm
Power requirements	AC 230, 50 Hz
HDMI ports quantity	5
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
I/O ports	1 x Component in 1 x Composite Monitor out 1 x USB 1 x Microphone 1 x FM Tuner Antenna 1 x AM Tuner Antenna
Connectivity technology	Wired
Headphone outputs	7
Digital audio optical in	1
Product color	Black
Power consumption (standby)	0.1 W
Power consumption (typical)	460 W

Weight and Dimensions

Weight	10200 g
