Denon AVR-1911 Service Manual

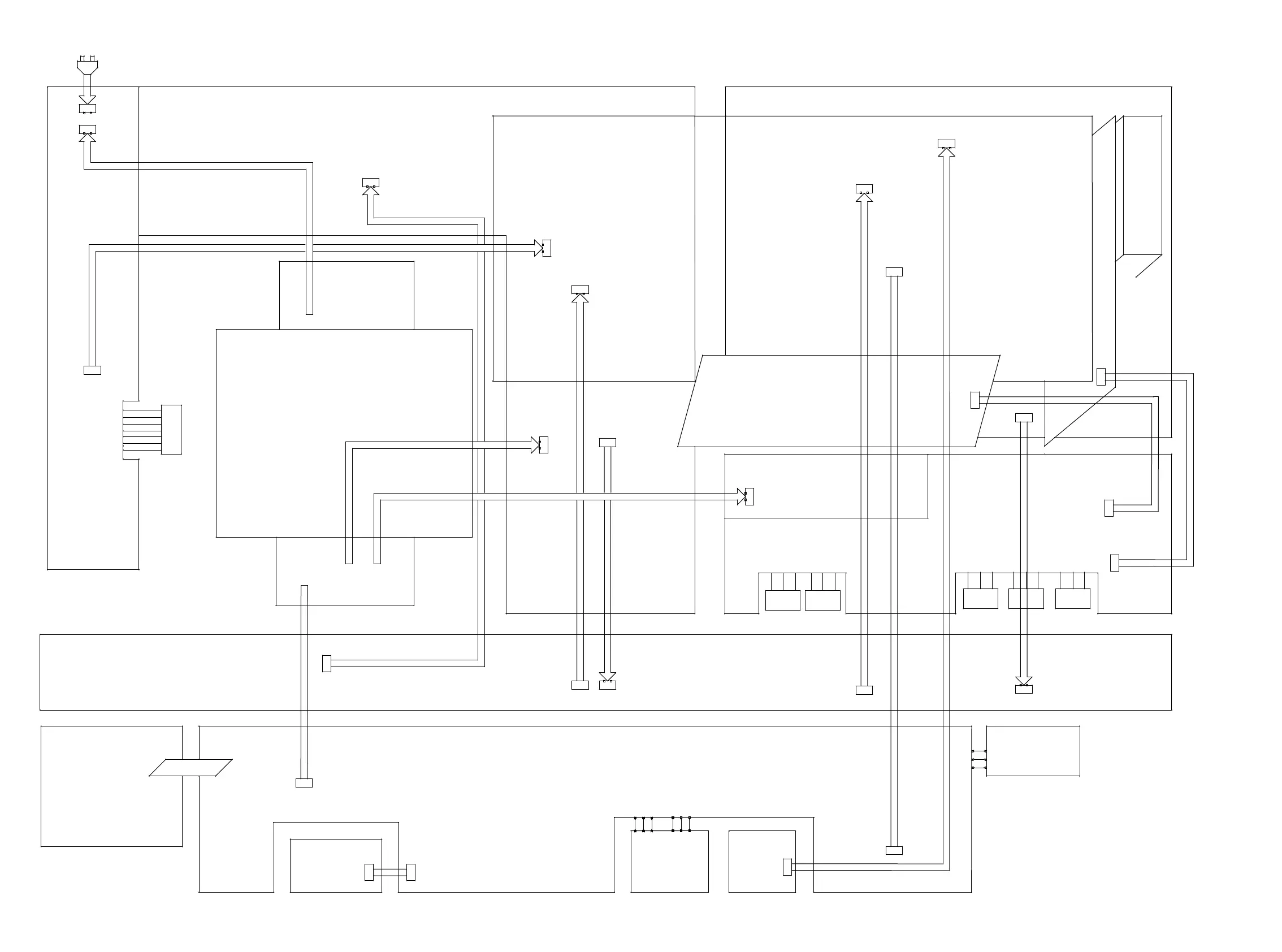

WIRING DIAGRAM
D25SC6M
AC CORD
40P FFC CARD CABLE
5P SHIELD WIRE
13P WIRE
DIGITAL POWER B'D
5P WIRE(AUDIO OUT)
5P WIRE(PROTECTION)
13P WIRE(AUDIO IN)
SPK B'D
5P WIRE
FRONT B'D
2P WIRE(SBL/R)
5P
S2 , S4 TAP
REG CNT B'D
FRONT CNT B'D
VOLUME B'D
AV B'D
(S5,S6)
S1 TAP
V.AUX B'D
USB B'D
REG B'D
SIDE CNT B'D
4P WIRE
TUNER PACK
10P WIRE(+/-B, GND)
H/P B'D
SELECTION B'D
7CH-AMP B'D
MAIN TRANS
HDMI B'D
92

Denon AVR-1911 Specifications

General

Frequency range	10 - 100000 Hz
Audio output channels	7.1 channels
Audio A/D Converter (ADC)	24-bit/96kHz
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.8 %
HDMI	Yes
Audio system	Dolby TrueHD, Dolby Digital Plus, Dolby Digital EX, Dolby Pro Logic II, Dolby Pro Logic IIx, Dolby Pro Logic IIz, DTS-HD, DTS 96/24
Output power	125 W
Dimensions (WxDxH)	434 x 381 x 171 mm
Power requirements	AC 230, 50 Hz
HDMI ports quantity	5
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
I/O ports	1 x Component in 1 x Composite Monitor out 1 x USB 1 x Microphone 1 x FM Tuner Antenna 1 x AM Tuner Antenna
Connectivity technology	Wired
Headphone outputs	7
Digital audio optical in	1
Product color	Black
Power consumption (standby)	0.1 W
Power consumption (typical)	460 W

Weight and Dimensions

Weight	10200 g
