Denon AVR-1911 Service Manual

120
AK4358VQ (HDMI : U2102)

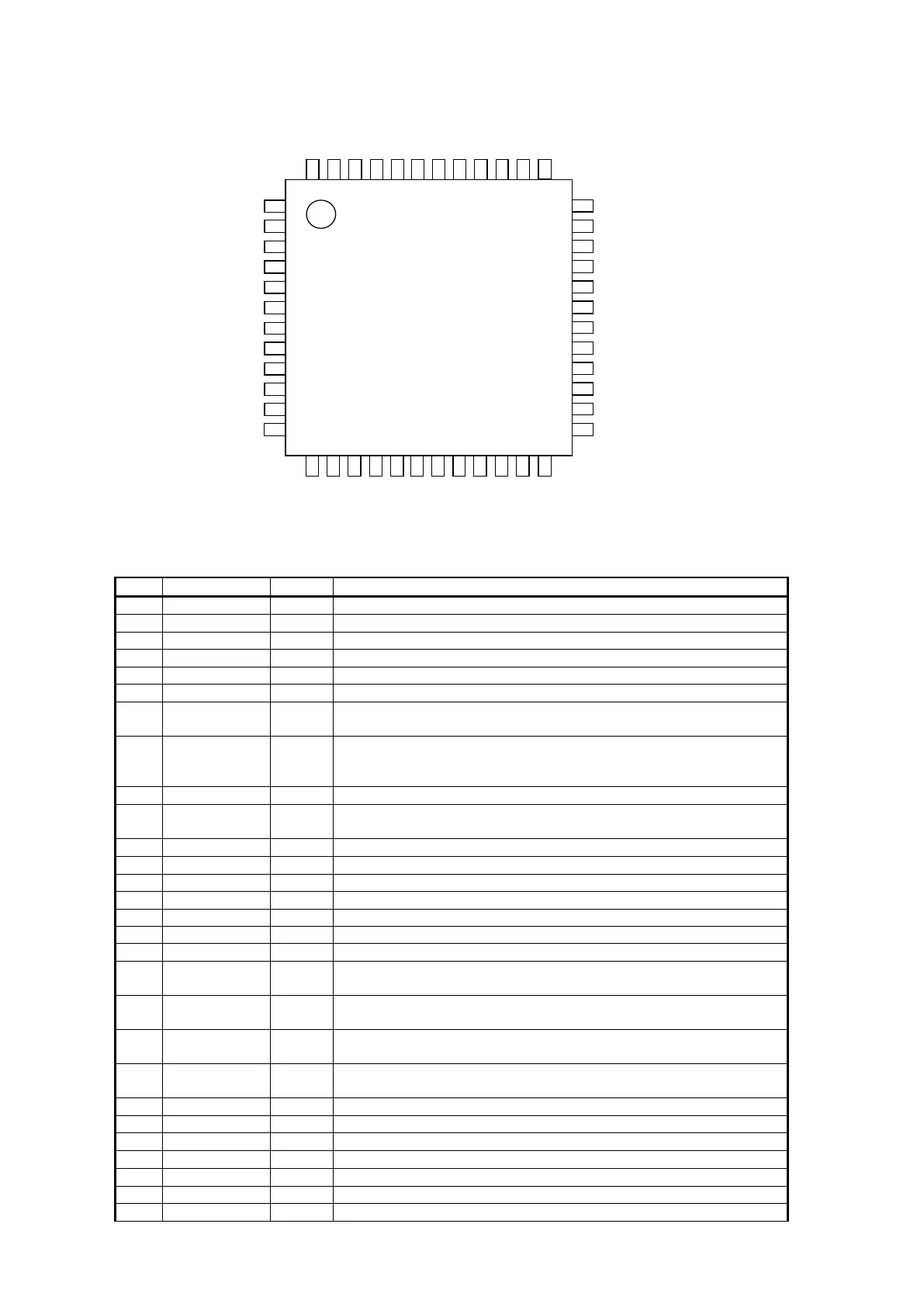

AK4358VQ Pin Function
ASAHI KASEI [AK4358]
MS0203-J-01 2006/02
- 2 -
 オーダリングガイド
AK4358VQ -40∼+85°C 48pin LQFP
AKD4358 評価ボード
 ピン配置
LOUT1-
ROUT1+
1
LOUT1+
48
2
DZF3 3
DZF2 4
DZF1
5
CAD0 6
ACKSN 7
PDN 8
BICK
9
MCLK 10
DVDD
ROUT1-
47
LOUT2+
46
45 44
ROUT2-
43
LOUT3+
42
LOUT3-
41
ROUT3+
40
ROUT3-
39
LOUT4+ 38
SDTI4
13
SDTI1
14
SDTI2
15
SDTI3
16
LRCK
17
18
CCLK/SCL 19
CDTI/SDA
20
CSN/CAD1
21
DCLK
22
DSDL4
23
36
35
34
33
32
31
30
29
28
27
26
AVSS
AVDD
VREFH
ROUT4+
ROUT4-
DIF0
DSDR3
DSDL3
DSDR2
DSDL2
DSDR1
AK4358VQ
Top View
I2C
LOUT2- ROUT2+
LOUT4-
37
DSDR4
24
11
DVSS 12 25 DSDL1
ASAHI KASEI [AK4358]
MS0203-J-01 2006/02
- 4 -
PIN/FUNCTION
No. Pin Name I/O Function
1 LOUT1- O DAC1 Lch Negative Analog Output Pin
2 LOUT1+ O DAC1 Lch Positive Analog Output Pin
3 DZF3 O Zero Input Detect 3 Pin
4 DZF2 O Zero Input Detect 2 Pin
5 DZF1 O Zero Input Detect 1 Pin
6 CAD0 I Chip Address 0 Pin
7 ACKSN I Auto Setting Mode Disable Pin (Pull-down Pin)
“L”: Auto Setting Mode, “H”: Manual Setting Mode
8 PDN I Power-Down Mode Pin
When at “L”, the AK4358 is in the power-down mode and is held in reset.
The AK4358 should always be reset upon power-up.
9 BICK I Audio Serial Data Clock Pin
10 MCLK I Master Clock Input Pin
An external TTL clock should be input on this pin.
11 DVDD -
Digital Power Supply Pin, +4.75∼+5.25V
12 DVSS - Digital Ground Pin
13 SDTI4 I DAC4 Audio Serial Data Input Pin
14 SDTI1 I DAC1 Audio Serial Data Input Pin
15 SDTI2 I DAC2 Audio Serial Data Input Pin
16 SDTI3 I DAC3 Audio Serial Data Input Pin
17 LRCK I L/R Clock Pin
18 I2C I Control Mode Select Pin
“L”: 3-wire Serial, “H”: I
2
C Bus
19 CCLK/SCL I Control Data Clock Pin
I2C = “L”: CCLK (3-wire Serial), I2C = “H”: SCL (I
2
C Bus)
20 CDTI/SDA I/O Control Data Input Pin
I2C = “L”: CDTI (3-wire Serial), I2C = “H”: SDA (I
2
C Bus)
21 CSN/CAD1 I Chip Select Pin
I2C = “L”: CSN (3-wire Serial), I2C = “H”: CAD1 (I
2
C Bus)
22 DCLK I DSD Clock Pin
23 DSDL4 I DAC4 DSD Lch Data Input Pin
24 DSDR4 I DAC4 DSD Rch Data Input Pin
25 DSDL1 I DAC1 DSD Lch Data Input Pin
26 DSDR1 I DAC1 DSD Rch Data Input Pin
27 DSDL2 I DAC2DSD Lch Data Input Pin
28 DSDR2 I DAC2 DSD Rch Data Input Pin
29 DSDL3 I DAC3 DSD Lch Data Input Pin
30 DSDR3 I DAC3 DSD Rch Data Input Pin
31 DIF0 I Audio Data Interface Format 0 Pin
32 ROUT4- O DAC4 Rch Negative Analog Output Pin
33 ROUT4+ O DAC4 Rch Positive Analog Output Pin
34 VREFH I Positive Voltage Reference Input Pin
35 AVDD -
Analog Power Supply Pin, +4.75∼+5.25V
36 AVSS - Analog Ground Pin
37 LOUT4- O DAC4 Lch Negative Analog Output Pin
38 LOUT4+ O DAC4 Lch Positive Analog Output Pin
39 ROUT3- O DAC3 Rch Negative Analog Output Pin
40 ROUT3+ O DAC3 Rch Positive Analog Output Pin
41 LOUT3- O DAC3 Lch Negative Analog Output Pin
42 LOUT3+ O DAC3 Lch Positive Analog Output Pin
43 ROUT2- O DAC2 Rch Negative Analog Output Pin
44 ROUT2+ O DAC2 Rch Positive Analog Output Pin

Denon AVR-1911 Specifications

General

Frequency range	10 - 100000 Hz
Audio output channels	7.1 channels
Audio A/D Converter (ADC)	24-bit/96kHz
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.8 %
HDMI	Yes
Audio system	Dolby TrueHD, Dolby Digital Plus, Dolby Digital EX, Dolby Pro Logic II, Dolby Pro Logic IIx, Dolby Pro Logic IIz, DTS-HD, DTS 96/24
Output power	125 W
Dimensions (WxDxH)	434 x 381 x 171 mm
Power requirements	AC 230, 50 Hz
HDMI ports quantity	5
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
I/O ports	1 x Component in 1 x Composite Monitor out 1 x USB 1 x Microphone 1 x FM Tuner Antenna 1 x AM Tuner Antenna
Connectivity technology	Wired
Headphone outputs	7
Digital audio optical in	1
Product color	Black
Power consumption (standby)	0.1 W
Power consumption (typical)	460 W

Weight and Dimensions

Weight	10200 g
