Denon AVR-2312 Owner's Manual

125

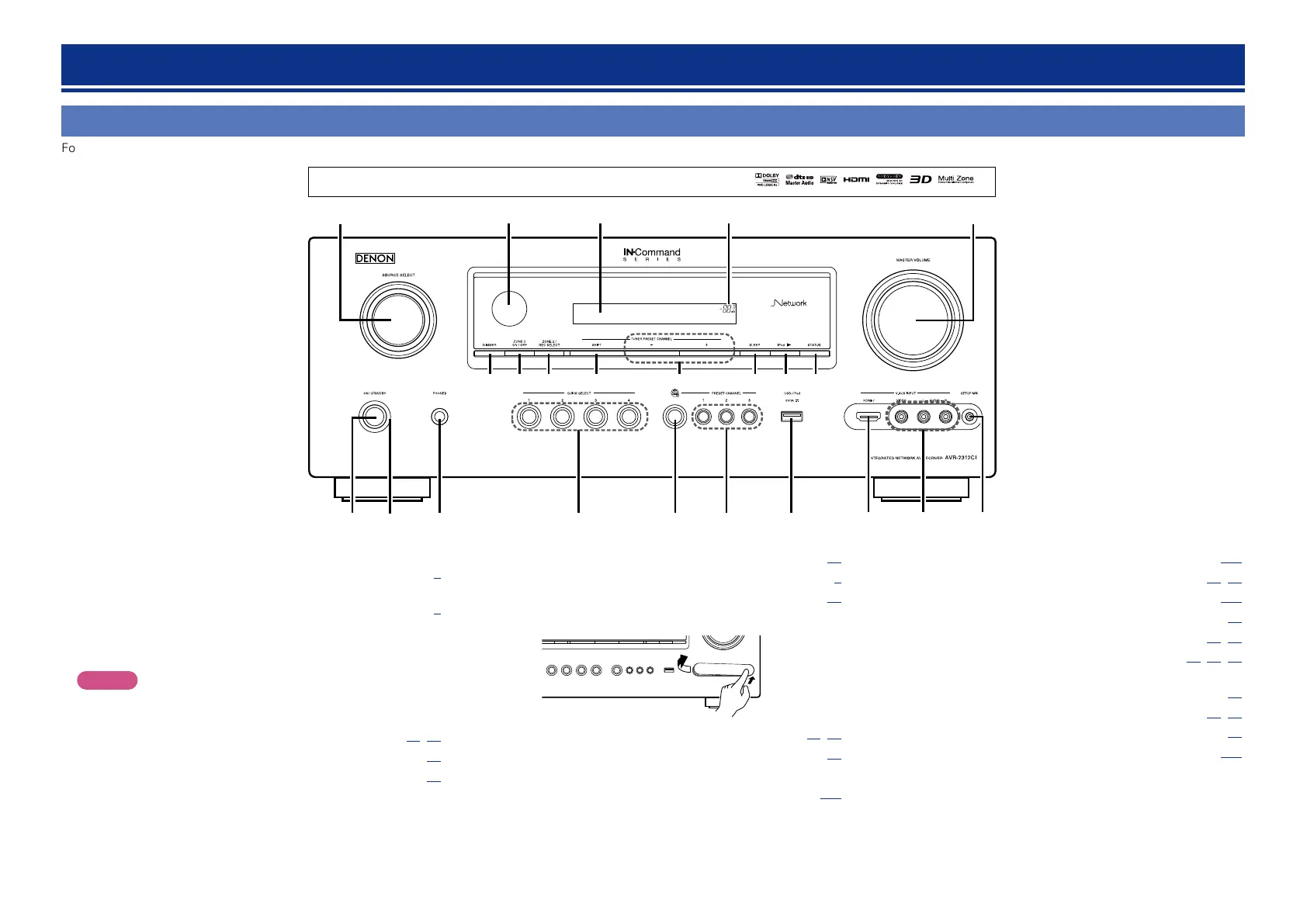

Front panel
For buttons not explained here, see the page indicated in parentheses ( ).
Q6 Q7 Q8 Q9 W0 W3W1 W2
Q5
Q3Q4
Q2 Q1
o Q0
i
utr yewq
q Power operation button
(ON/STANDBY) ································································· (C 5)
Turns power to this unit on and off (standby).
w Power indicator ································································· (C 5)
e Headphones jack (PHONES)
When the headphones are plugged into this jack, audio will no
longer be output from the connected speakers.
NOTE
To prevent hearing loss, do not raise the volume level excessively
when using headphones.
r QUICK SELECT buttons ···················································· (71, 81)
t INTERNET RADIO button (V) ··············································· (37)
y PRESET CHANNEL buttons (1 – 3) ········································· (38)
Q4 Remote control sensor ························································· (129)
Q5 SOURCE SELECT knob ····················································· (26, 80)
Q6 DIMMER button ····································································· (114)
Q7 ZONE2 ON/OFF button ··························································· (80)
Q8 ZONE2 / REC SELECT button ··········································· (72, 80)
Q9 SHIFT button ································································ (33, 38, 85)
W0 Tuner preset channel buttons
(TUNER PRESET CHANNEL +, –) ············································ (34)
W1 SLEEP button ····································································· (69, 81)
W2 iPod play button (iPod 1) ······················································· (32)
W3 STATUS button ····································································· (117)
u USB/iPod port ········································································· (15)
i HDMI connector ········································································· (8)
o V.AUX INPUT connectors ······················································· (14)
Remove the cap covering the connectors when you want to use
them.
Q0 SETUP MIC jack ································································· (21, 65)
Q1 MASTER VOLUME control knob ············································ (27)
Q2 Master volume indicator
Q3 Display ···················································································· (126)
Part names and functions
Basic version
Advanced version
InformationInformation

Denon AVR-2312 Specifications

General

Impedance	8 Ω
Speaker selector	A+B
Input sensitivity	200 mV
Pre-out connectivity	Yes
Audio output channels	7.1 channels
Audio A/D Converter (ADC)	24-bit/96kHz
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.08 %
Power output per channel (1KHz@8 Ohm)	135 W
Power output per channel (20-20KHz@8 Ohm)	105 W
HDMI in	7
Composite video in	4
Ethernet LAN (RJ-45) ports	1
Multichannel audio input type	RCA
Component video (YPbPr/YCbCr) in	2
Headphone connectivity	6.3 mm
Connectivity technology	Wired
Speakers connectivity type	Binding post
Audio formats supported	AAC, FLAC, MP3, WAV, WMA
Image formats supported	JPG
Wi-Fi	No
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Preset stations quantity	56
Internet radio services supported	Last.fm, Napster
Supported video modes	1080i, 1080p, 480i, 480p, 576i, 576p, 720p
Display	VFD
HDMI version	1.4a
Product color	Black
Audio decoders	Dolby Pro Logic IIz, Dolby TrueHD, DTS-HD Master Audio
Volume control	Rotary
Apple docking compatibility	iPad, iPhone, iPod
Number of products included	1 pc(s)
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	600 W

Weight and Dimensions

Depth	382 mm
Width	434 mm
Height	167 mm
Weight	11000 g
