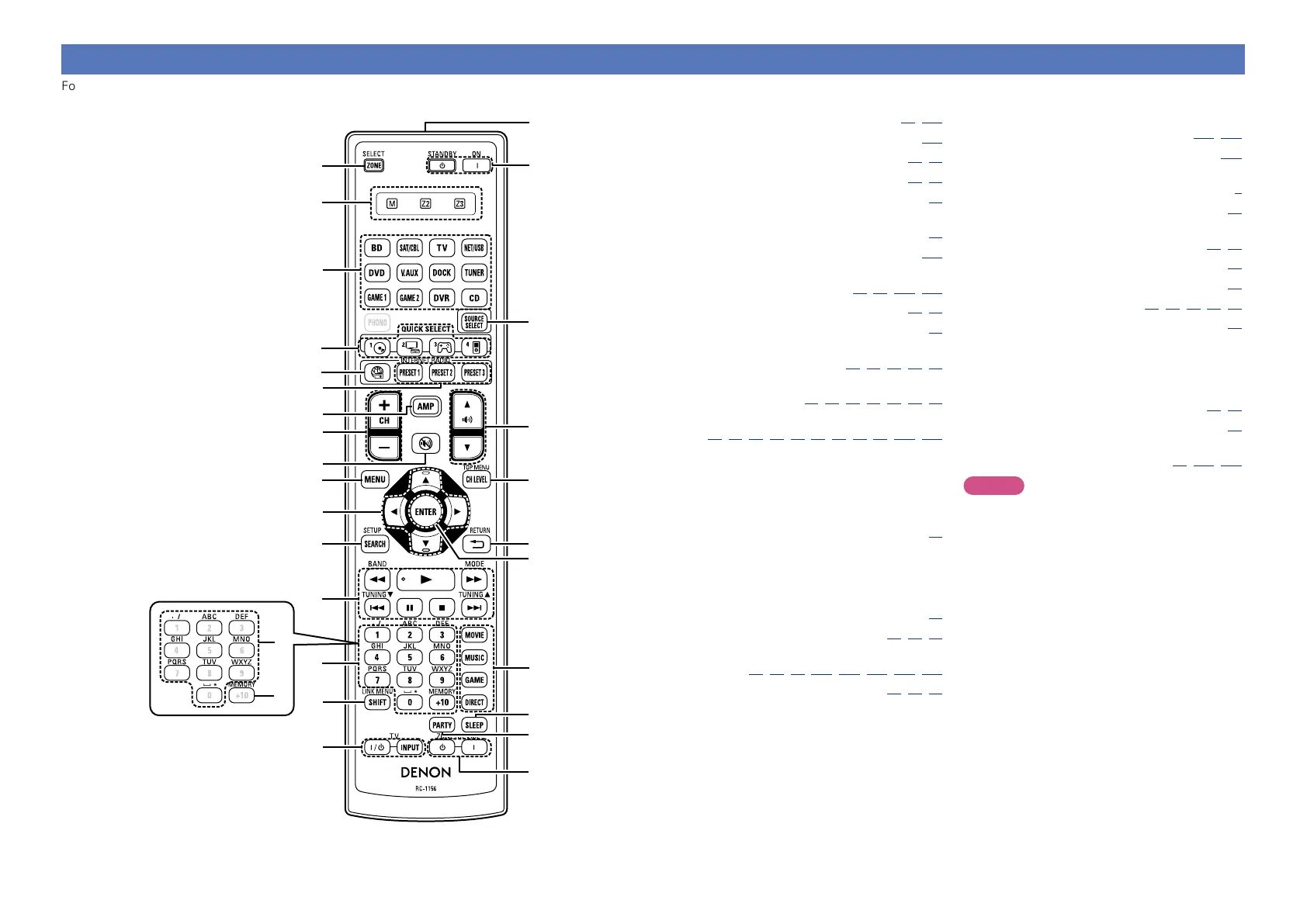

Remote control unit
For buttons not explained here, see the page indicated in parentheses ( ).
q
w
e
r
t
y
u
i
o
Q0
Q1
Q2
Q3
Q4
Q5
Q6
Q8
Q7
W9
W8
W7
W6
W2
W1
W0
Q9
W3
W4
W5
q ZONE SELECT button ························ (80, 118)
w Zone mode indicators ······························ (118)
e Input source select buttons ················· (26, 80)
r QUICK SELECT buttons ······················· (71, 81)
t INTERNET RADIO button (V) ·················· (37)
y Preset channel buttons
(PRESET 1 – 3) ············································· (38)
u AMP button ··············································· (118)
i Channel buttons
(CH +, –) ································· (33, 38, 121, 122)
o Muting button (N) ······························ (27, 80)
Q0 MENU button ·············································· (87)
Q1 Cursor buttons
(uio p) ······························ (83, 84, 85, 86, 87)
Q2 SEARCH button
································· (29, 31, 34, 35, 43, 50, 86)
Q3 System buttons
····· (30,32,39,40,42,44,47,49,51,121,122)
•Search buttons (6, 7)
•Skip buttons (8, 9)
•Play button (1)
•Pause button (3)
•Stop button (2)
Tuner system buttons ································ (34)
•FM/AM band switching button (BAND)
•Tuning mode button (MODE)
•Tuning up / Tuning down buttons
(TUNING df)
Q4 Character buttons ······································ (86)
Q5 MEMORY button ···························· (33, 38, 39)
Q6 Number buttons
················· (33,34,38,119,120,121,122,123)
Q7 SHIFT button ··································· (33, 38, 85)
Q8 TV operation buttons
(TV Z / X / INPUT) ···························· (121, 122)
Q9 Remote control signal transmitter ········· (129)
W0 Power buttons
(ON / STANDBY) ·································· (C 5)
W1 SOURCE SELECT button ··························· (27)
W2 Master volume control buttons
(M df) ················································· (27, 80)
W3 Channel level button (CH LEVEL) ············· (70)
W4 RETURN button (B) ································· (87)
W5 ENTER button ····················· (83, 84, 85, 86, 87)
W6 Surround mode buttons ···························· (52)
•MOVIE button
•MUSIC button
•GAME button
•DIRECT button
W7 SLEEP button ········································ (69, 81)
W8 PARTY button ············································· (74)
W9 ZONE/DEVICE power buttons
····················································· (80, 121, 122)
NOTE
The PHONO button cannot be used.
Basic version
Advanced version
InformationInformation
vSee overleaf

Denon AVR-2312 Specifications

General

Impedance	8 Ω
Speaker selector	A+B
Input sensitivity	200 mV
Pre-out connectivity	Yes
Audio output channels	7.1 channels
Audio A/D Converter (ADC)	24-bit/96kHz
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.08 %
Power output per channel (1KHz@8 Ohm)	135 W
Power output per channel (20-20KHz@8 Ohm)	105 W
HDMI in	7
Composite video in	4
Ethernet LAN (RJ-45) ports	1
Multichannel audio input type	RCA
Component video (YPbPr/YCbCr) in	2
Headphone connectivity	6.3 mm
Connectivity technology	Wired
Speakers connectivity type	Binding post
Audio formats supported	AAC, FLAC, MP3, WAV, WMA
Image formats supported	JPG
Wi-Fi	No
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Preset stations quantity	56
Internet radio services supported	Last.fm, Napster
Supported video modes	1080i, 1080p, 480i, 480p, 576i, 576p, 720p
Display	VFD
HDMI version	1.4a
Product color	Black
Audio decoders	Dolby Pro Logic IIz, Dolby TrueHD, DTS-HD Master Audio
Volume control	Rotary
Apple docking compatibility	iPad, iPhone, iPod
Number of products included	1 pc(s)
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	600 W

Weight and Dimensions

Depth	382 mm
Width	434 mm
Height	167 mm
Weight	11000 g
