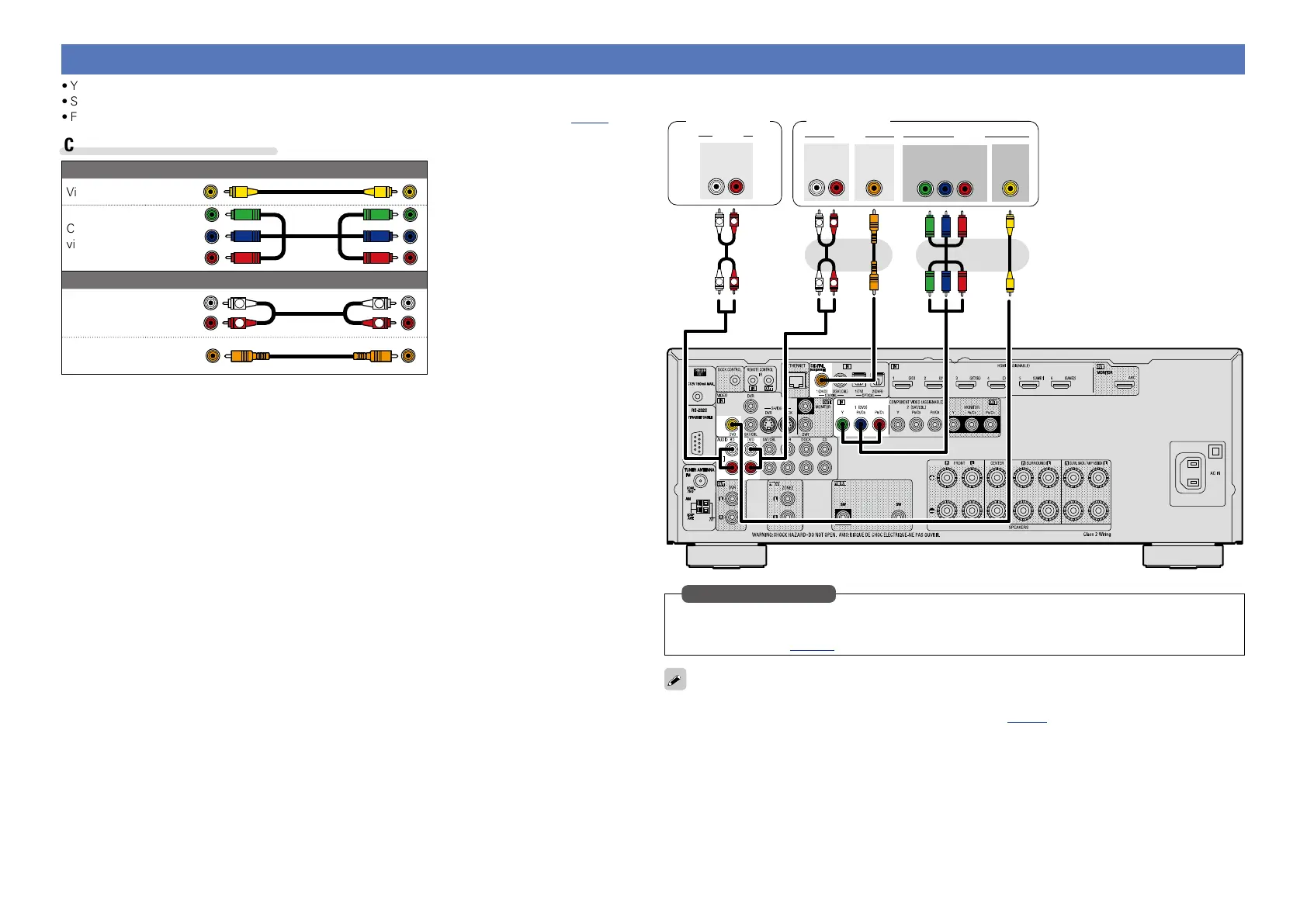

Connecting a Blu-ray Disc player/DVD player
•You can enjoy video and audio from a Blu-ray Disc or DVD.
•Select the connector to use and connect the device.
•For instructions on HDMI connections, see “Connecting an HDMI-compatible device” (vpage7).
Cables used for connections
Video cable (sold separately)
Video cable
Component
video cable
Audio cables (sold separately)
Audio cable
R
L
R
L
Coaxial
digital cable
R
L
R
L
R
L
R
L
AUDIO
AUDIO
RL
OUT
VIDEOAUDIO
AUDIO
RL
OUT
OUT
VIDEO
COMPONENT VIDEO
Y P
B PR
OUT
OUT
COAXIAL
DVD player
Blu-ray Disc
player
Set this to change the digital input connector or component video input connector to which the input
source is assigned.
“Input Assign” (vpage88)
in Set as Necessary
When you want to play back HD Audio (Dolby TrueHD, DTS-HD, Dolby Digital Plus, DTS Express) and Multi-
channel PCM with this unit, use an HDMI connection (vpage 7 “Connecting an HDMI-compatible
device”).
Basic version
Advanced version
Information
Basic version
