Important information
•Make connections as follows before using this unit. Select an
appropriate connection type according to the devices to be
connected.
•You may need to make some settings on this unit depending
on the connection method. Refer to each description for more
information.
•Select the cables (sold separately) according to the devices
being connected.
NOTE
•Do not plug in the power cord until all connections have been
completed (When the Setup wizard is running, follow the instructions
in the Setup wizard screen for making connections. ).
•When running the Setup wizard, turn off the power supply of
connected devices.
•When making connections, also refer to the operating instructions of
the other devices being connected.
•Be sure to connect the left and right channels properly (left with left,
right with right).
•Do not bundle power cords together with connection cables. Doing
so can result in noise.
Connections
Converting input video signals for output (Video conversion function)
This unit is equipped with four types of video input connectors (HDMI, Component video, S-Video and video) and three types of video output
connectors (HDMI, Component video and video).
Use the connectors corresponding to the devices to be connected.
This function automatically converts various formats of video signals input to this unit into the formats used to output the video signals from
this unit to a monitor.

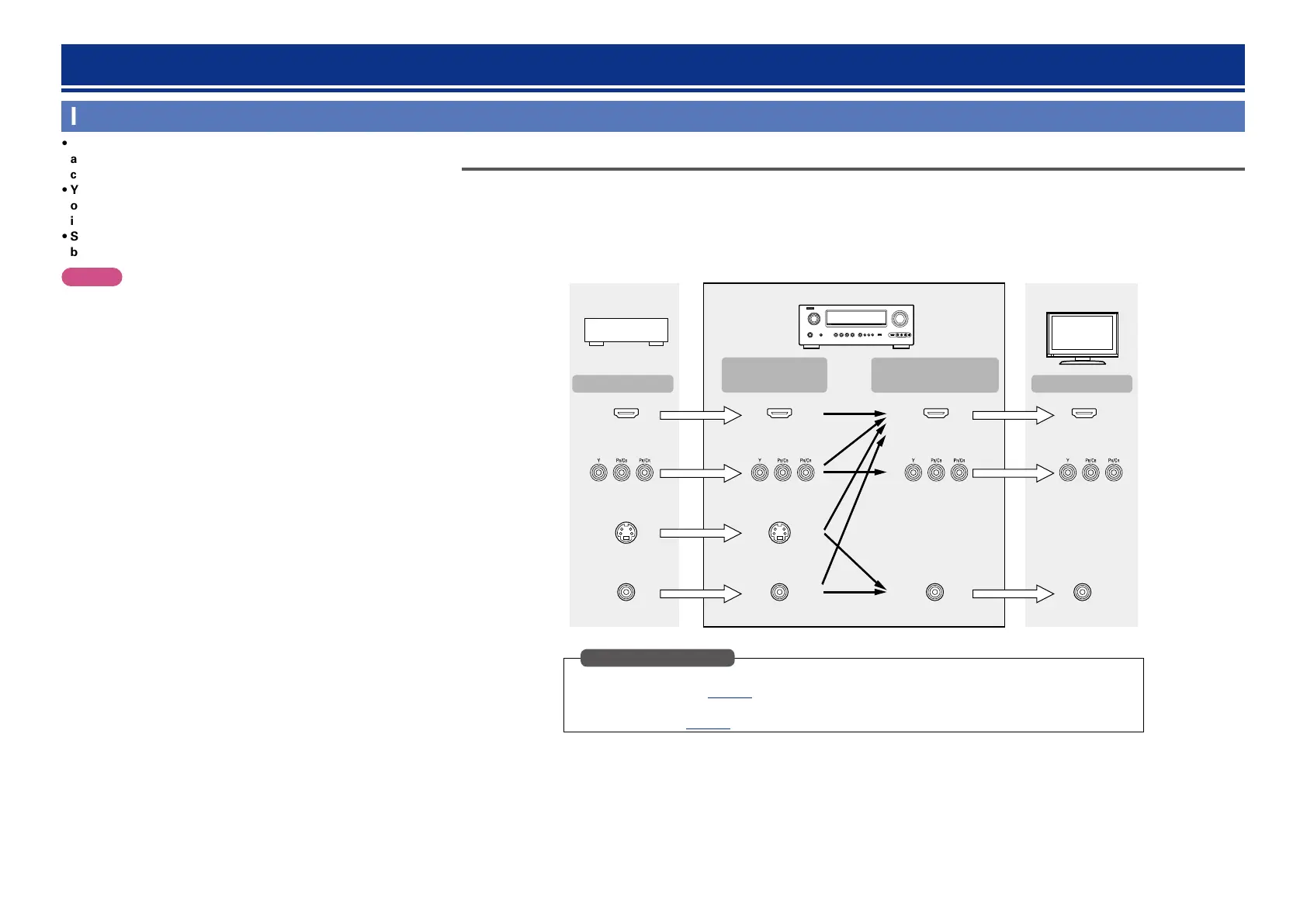

GFlow of video signals for MAIN ZONEH
HDMI connector
Component video
connectors
S-Video connector
Video connector
Monitor (TV)
HDMI connector
Component video
connectors
Component video
connectors
Component video
connectors
S-Video
connector
Video connector
HDMI
connector
Video connector
HDMI connector
Video connector
Video device
This unit
Output
Input
(IN)
Output
(MONITOR OUT)
Input
•Set when not using the video conversion function.
“Video Convert” (vpage90)
•Set when changing the resolution of the video signal.
“Resolution” (vpage90)
in Set as Necessary
Basic version
Advanced version
Information
Basic version
vSee overleaf

Denon AVR-2312 Specifications

General

Impedance	8 Ω
Speaker selector	A+B
Input sensitivity	200 mV
Pre-out connectivity	Yes
Audio output channels	7.1 channels
Audio A/D Converter (ADC)	24-bit/96kHz
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.08 %
Power output per channel (1KHz@8 Ohm)	135 W
Power output per channel (20-20KHz@8 Ohm)	105 W
HDMI in	7
Composite video in	4
Ethernet LAN (RJ-45) ports	1
Multichannel audio input type	RCA
Component video (YPbPr/YCbCr) in	2
Headphone connectivity	6.3 mm
Connectivity technology	Wired
Speakers connectivity type	Binding post
Audio formats supported	AAC, FLAC, MP3, WAV, WMA
Image formats supported	JPG
Wi-Fi	No
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Preset stations quantity	56
Internet radio services supported	Last.fm, Napster
Supported video modes	1080i, 1080p, 480i, 480p, 576i, 576p, 720p
Display	VFD
HDMI version	1.4a
Product color	Black
Audio decoders	Dolby Pro Logic IIz, Dolby TrueHD, DTS-HD Master Audio
Volume control	Rotary
Apple docking compatibility	iPad, iPhone, iPod
Number of products included	1 pc(s)
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	600 W

Weight and Dimensions

Depth	382 mm
Width	434 mm
Height	167 mm
Weight	11000 g
