Denon AVR-2312 Owner's Manual

14

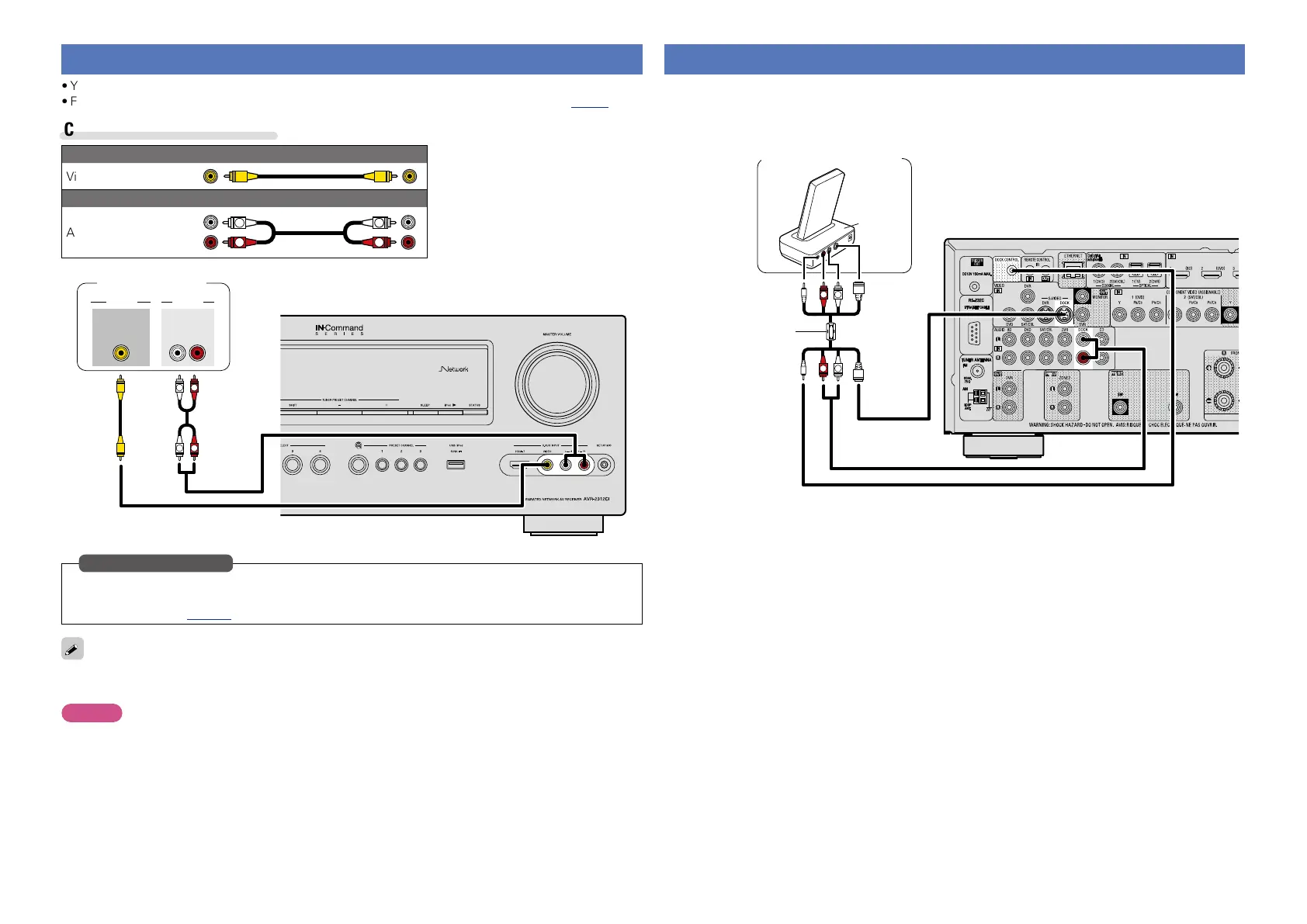

Connecting a digital camcorder
•You can enjoy video and audio from a digital camcorder.
•For instructions on HDMI connections, see “Connecting an HDMI-compatible device” (vpage7).
Cables used for connections
Video cable (sold separately)
Video cable
Audio cable (sold separately)
Audio cable
R
L
R
L
R
L
R
L
OUT
AUDIO
VIDEO
VIDEO
AUDIO
RL
OUT
Digital camcorder
Set this to change the digital input connector or component video input connector to which the input
source is assigned.
“Input Assign” (vpage88)
in Set as Necessary
You can enjoy games by connecting a game machine via the V.AUX input connector. In this case, select
the input source to “V.AUX”.
NOTE
When a non-standard video signal from a game machine or some other source is input, the video conversion
function might not operate. In this case, use the monitor output of the same connector as the input.
Connecting a control dock for iPod
•Connect a control dock for iPod to the unit to enjoy video and music stored on an iPod.
•For a control dock for iPod, use ASD-1R or ASD-11R made by DENON (sold separately).
•For instructions on the control dock for iPod settings, refer to the control dock for iPod’s operating
instructions.
L
L
R
R
ASD-11R
Control dock for iPod
Use the AV/Control
Cable supplied with
the DENON control
dock for iPod.
Basic version
Advanced version
Information
Basic version

Denon AVR-2312 Specifications

General

Impedance	8 Ω
Speaker selector	A+B
Input sensitivity	200 mV
Pre-out connectivity	Yes
Audio output channels	7.1 channels
Audio A/D Converter (ADC)	24-bit/96kHz
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.08 %
Power output per channel (1KHz@8 Ohm)	135 W
Power output per channel (20-20KHz@8 Ohm)	105 W
HDMI in	7
Composite video in	4
Ethernet LAN (RJ-45) ports	1
Multichannel audio input type	RCA
Component video (YPbPr/YCbCr) in	2
Headphone connectivity	6.3 mm
Connectivity technology	Wired
Speakers connectivity type	Binding post
Audio formats supported	AAC, FLAC, MP3, WAV, WMA
Image formats supported	JPG
Wi-Fi	No
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Preset stations quantity	56
Internet radio services supported	Last.fm, Napster
Supported video modes	1080i, 1080p, 480i, 480p, 576i, 576p, 720p
Display	VFD
HDMI version	1.4a
Product color	Black
Audio decoders	Dolby Pro Logic IIz, Dolby TrueHD, DTS-HD Master Audio
Volume control	Rotary
Apple docking compatibility	iPad, iPhone, iPod
Number of products included	1 pc(s)
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	600 W

Weight and Dimensions

Depth	382 mm
Width	434 mm
Height	167 mm
Weight	11000 g
