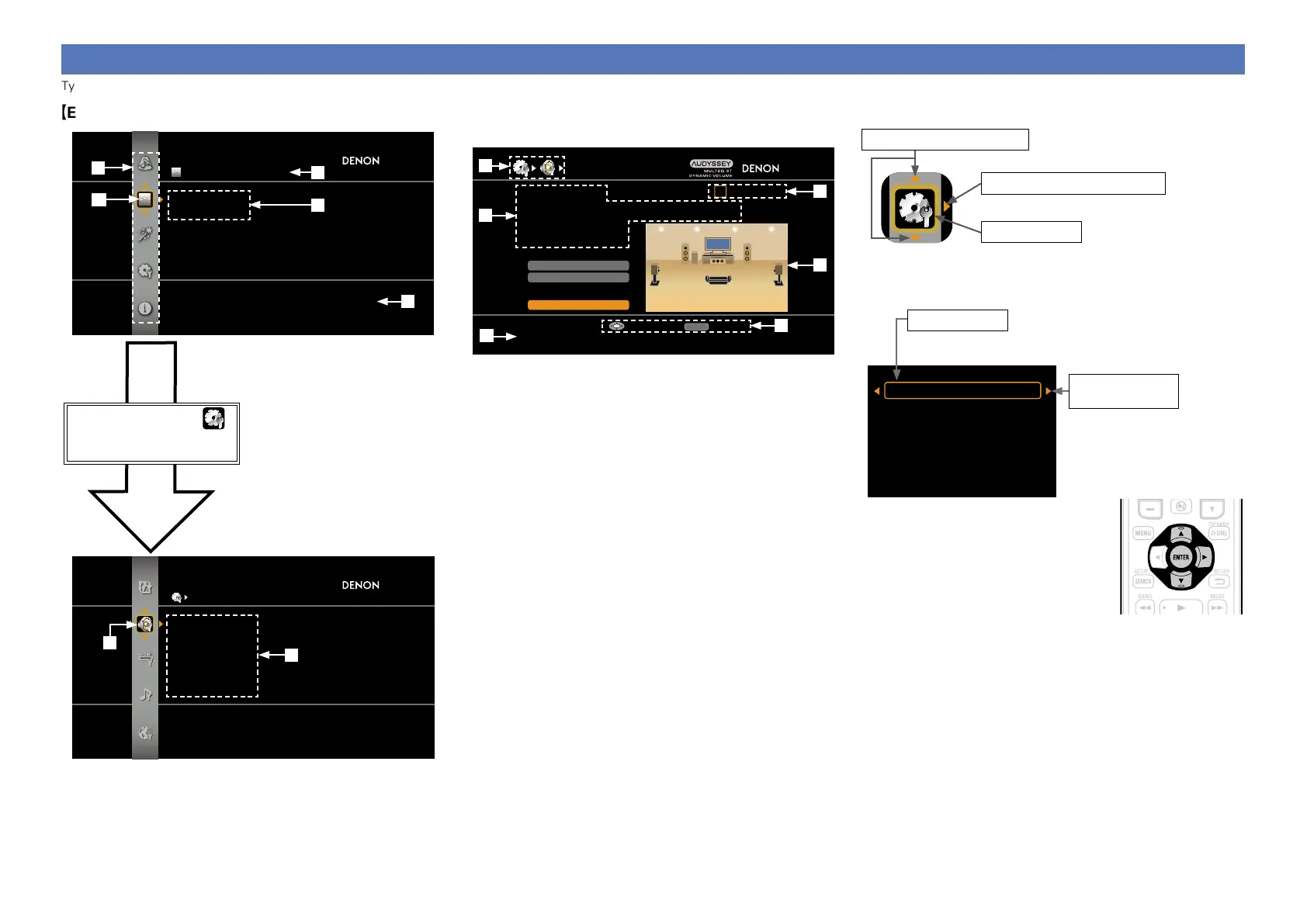

Examples of menu screen displays
Typical examples are described below.
GExample 1H Menu selection screen (Top menu)
SPEAKER SETUP
Auto Setup
Amp Assign
Speaker Config.
Bass Setting
Distance
Channel Level
Make detailed speaker settings
q List of GUI menu setup icons
w Currently selected setup icon
e Currently selected setup item
r List of currently selected setup
subcategory
t Guide text for the currently selected
setup item
Press i to select “ ”
and then press p.
(Or press ENTER.)
y
u
AUDIO/VIDEO ADJUST
Audio Adjust
Picture Adjust
Adjust various audio and video parameters
r
e
q
w
y Selected setup item
u Options of the selected setup icon
t
GExample 2H Audyssey
®
Auto Setup screen
(with illustration)
AUDYSSEY AUTO SETUP
1 2 3 4 5 6
Amp Assign
RETURN
Auto Setup Start
Channel Select
STEP1 Preparation
Connect the speakers and place them according
to the recommendations in the manual,
Set the following items
If necessary.
Start Auto Setup
Enter Cancel
o
Q3
Q1
Q0
Q2
i History icon
o Operation guidance text
Q0 Operation step indicators
Q1 Illustration
Q2 Operation button guidance
Q3 Guide text for the currently selected setup item
i
n Icon
Proceed to the subcategory
Selected item
Switch the selected item
(Use i to switch.)
(Use
p or ENTER to switch.)
(Use
u to switch.)
n List
Input Assign
Video
Input Mode
Rename
Source Level (analog)
Source Level (digital)
Input Setup
Proceed to the
subcategory
•Switch the selected item using ui.
Selected item
(Use p or ENTER to switch.)
Basic version
Advanced version
Information
Advanced version
BD

Denon AVR-2312 Specifications

General

Impedance	8 Ω
Speaker selector	A+B
Input sensitivity	200 mV
Pre-out connectivity	Yes
Audio output channels	7.1 channels
Audio A/D Converter (ADC)	24-bit/96kHz
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.08 %
Power output per channel (1KHz@8 Ohm)	135 W
Power output per channel (20-20KHz@8 Ohm)	105 W
HDMI in	7
Composite video in	4
Ethernet LAN (RJ-45) ports	1
Multichannel audio input type	RCA
Component video (YPbPr/YCbCr) in	2
Headphone connectivity	6.3 mm
Connectivity technology	Wired
Speakers connectivity type	Binding post
Audio formats supported	AAC, FLAC, MP3, WAV, WMA
Image formats supported	JPG
Wi-Fi	No
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Preset stations quantity	56
Internet radio services supported	Last.fm, Napster
Supported video modes	1080i, 1080p, 480i, 480p, 576i, 576p, 720p
Display	VFD
HDMI version	1.4a
Product color	Black
Audio decoders	Dolby Pro Logic IIz, Dolby TrueHD, DTS-HD Master Audio
Volume control	Rotary
Apple docking compatibility	iPad, iPhone, iPod
Number of products included	1 pc(s)
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	600 W

Weight and Dimensions

Depth	382 mm
Width	434 mm
Height	167 mm
Weight	11000 g
