• Speaker system layout

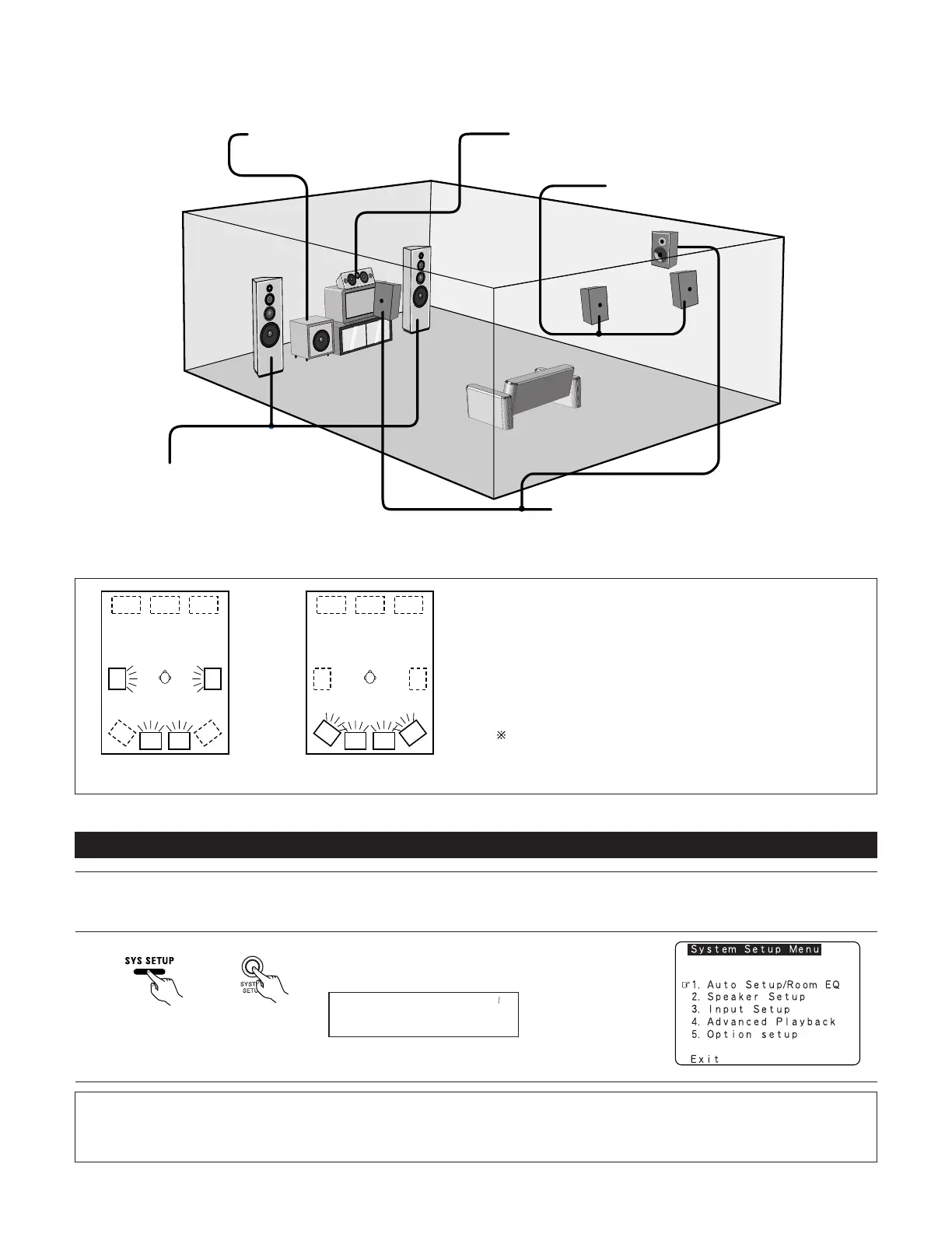

Basic system layout
• The following is an example of the basic layout for a system consisting of eight speaker systems and a television monitor:
With the AVR-3805 it is also possible to use the surround speaker selector function to choose the best layout for a variety of sources and surround
modes.
Subwoofer Center speaker system
Surround speaker systems
Surround back speaker systems
Front speaker systems
Set these at the sides of the TV or screen with
their front surfaces as flush with the front of the
screen as possible.
• Surround speaker selector function
This function makes it possible to achieve the optimum sound
fields for different sources by switching between two systems of
surround speakers (A and B).
Using A only Using B only
SB: SURROUND BACK SPEAKER
Before setting up the system
1
2
Check that all the connections are correct, then turn on the main unit’s power.
Setup will not be possible when the unit is set to Pure Direct ON, the Video Off mode, or when the headphones are plugged in. Therefore,
please cancel the mode or reverse the condition.
Display the System Setup Menu.
(Main unit)
(Remote control unit)
Auto Set/RoomEQ
*System Setup
NOTES:
• The System Setup menu composition is of a layered design that includes the related items below the large table title as contained in the tables of Pages 20 and
21.
• Wherever your position in System Setup, one more press of the System Setup button permits a move to one level higher.
