MULTI ZONE
Multi-zone playback with multi-source
MULTI ZONE MUSIC ENTERTAINMENT SYSTEM
• When the outputs of the “ZONE2 (ZONE3)” OUT terminals are wired and connected to integrated amplifiers installed in other rooms, different
sources can be played in rooms other than the main zone in which this unit and the playback devices are installed. (Refer to ZONE2 (ZONE3)
on the diagram below.)
• MULTI ZONE SPEAKER OUT can be used when “ZONE3” is selected at System Setup Menu “Power Amp Assign”.In this case, Surround Back
Speaker OUT cannot be used for MAIN ZONE. (See page 45.)
• When a sold separately room-to-room remote control unit (DENON RC-616, 617 or 618) is wired and connected between the MAIN ZONE and
ZONE2 (ZONE3), the remote-controllable devices in the main zone can be controlled from ZONE2 (ZONE3) using the remote control unit.
To control playback devices other than the ones above, either use that device’s remote control unit or preset a separately sold programmable
remote control unit.
NOTES:
• For the AUDIO output, use high quality pin-plug cords and wire in such a way that there is no humming or noise.
• For instructions on installation and operation of separately sold devices, refer to the devices’ operating instructions.
• When the PURE DIRECT , VIDEO OFF mode is set for the main zone, no signals are output to the ZONE2 video terminals.
• Signals are output from the ZONE2 video terminals even when ZONE2 is set to “OFF”.
MULTI ROOM MUSIC ENTERTAINMENT SYSTEM
[1] Multi-zone playback using the ZONE2 PREOUT and ZONE3 FIXED-OUT terminals
2 When using the SURR.BACK/MULTI ZONE amplifier as the SURROUND BACK.
The AVR-3805 is equipped with pre-out terminals for which the volume is adjustable (ZONE2) and composite video output terminals as the
ZONE2 output terminals and fixed output level as the ZONE3 output terminals.

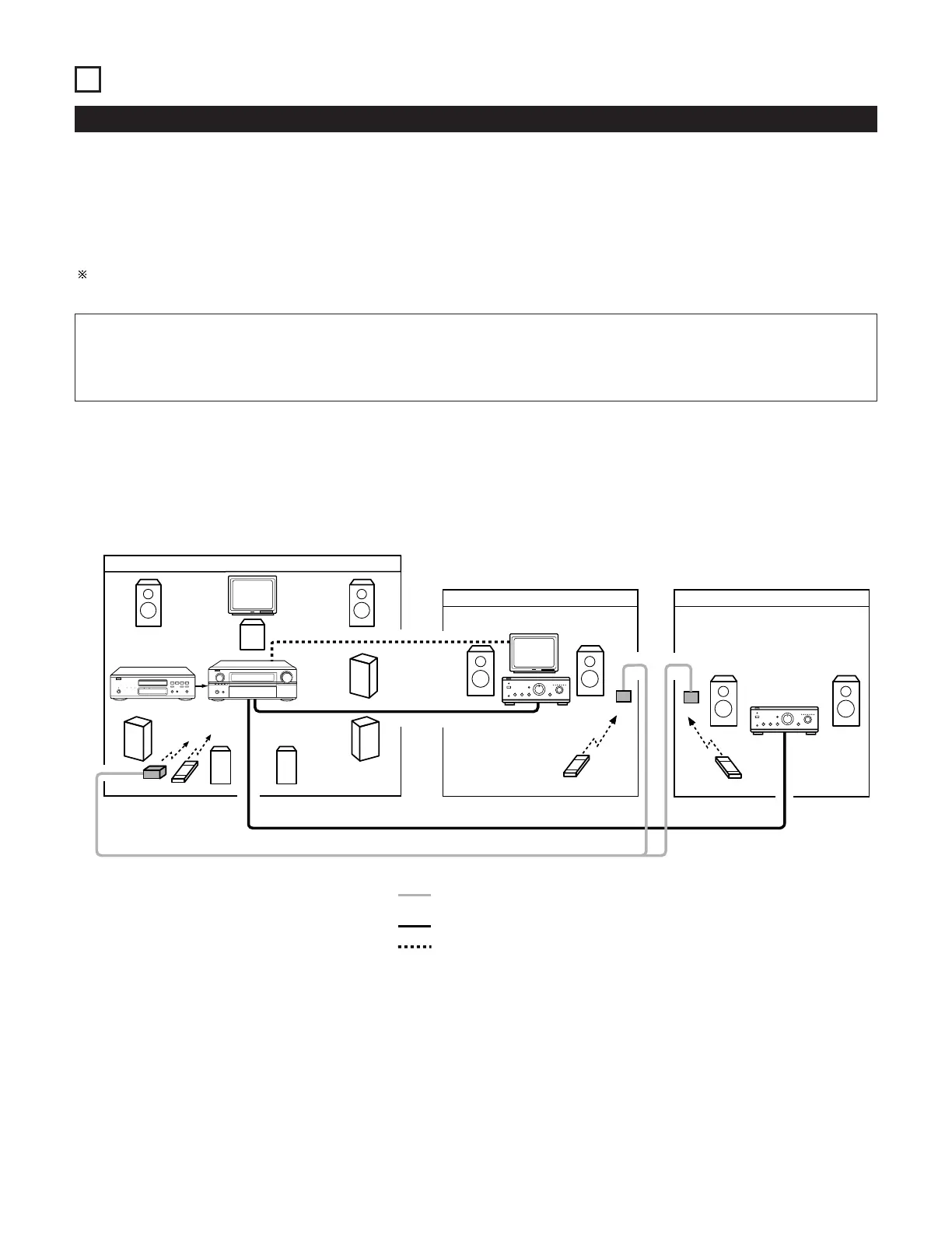

(1) System configuration and connections example.
Using external amplifier
RC-617
RC-617
This unit
Premain
Amplifer
Premain
Amplifer
DVD player
Input
FL FR
Center
SL SR
SW
SBRSBL
RC-616
CH SEL
ENTER
B
PROGRAMMABLE
REMOTE CONTROL UNIT
PROGRAMMABLE
REMOTE
CONTROL UNIT
MAIN ZONE 7.1-channel systems
ZONE 2
ZONE 3
Monitor
Monitor
B
B
ZONE2 AUDIO OUT
(VARIABLE OUT)
MULTI SOURCE AUDIO signal cable
*
Refer to CONNECTIONS on pages 6 to 13.
ZONE2 VIDEO signal cable
ROOM-TO-ROOM REMOTE CONTROL SYSTEM
(separately sold) control line
ZONE2 VIDEO OUT
ZONE3 AUDIO OUT(FIXED OUT)
