25
5

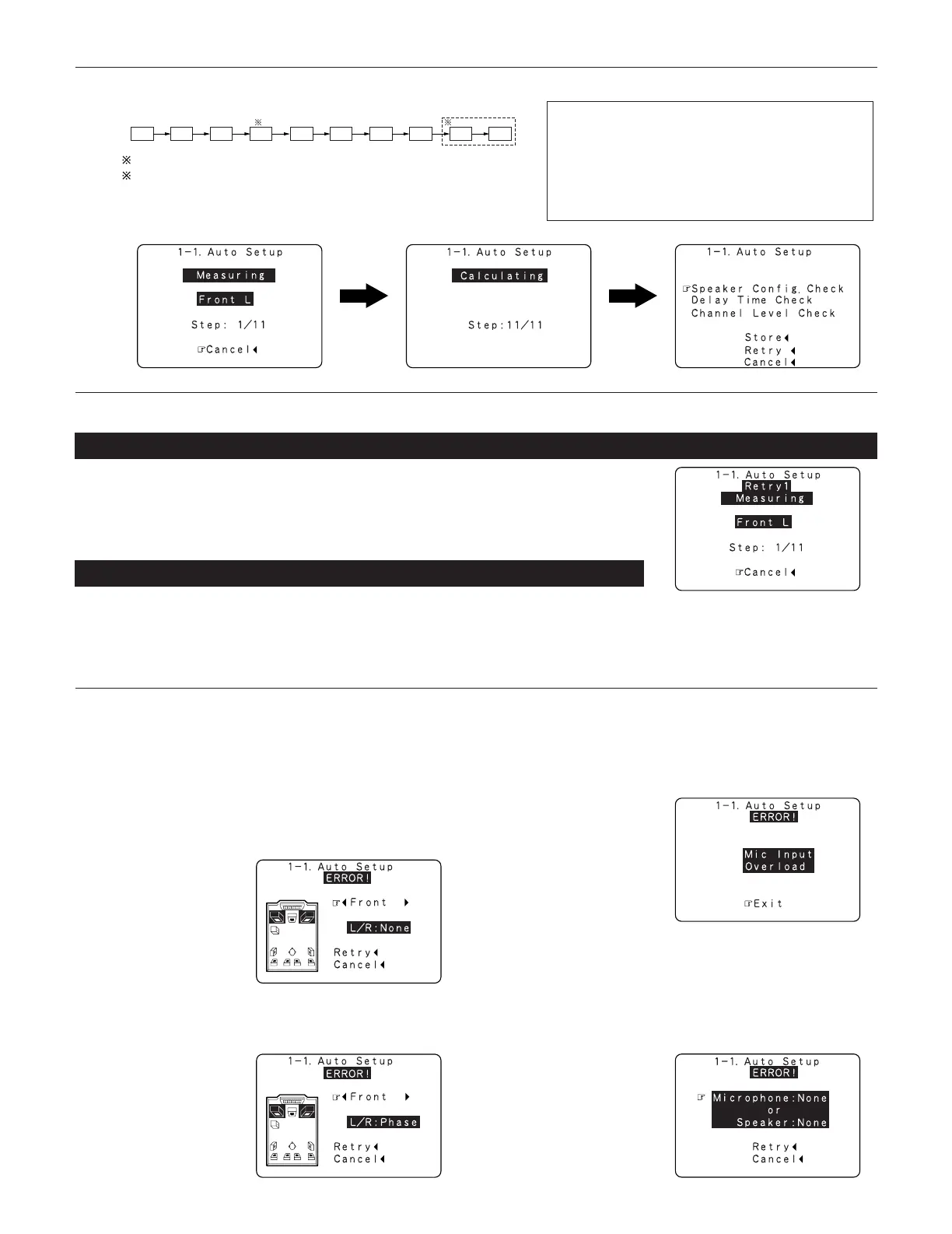

Start the measurements.
Measurement of each channel is performed as follows.
Display
1
Subwoofer speaker is measured twice.
2
When “ZONE2” or ”ZONE3” is selected, this is not displayed.
After each channel is measured, “Calculating” appears.
The display switches to Auto Setup check screen automatically.
FL
FR CSW
1
2
SLA
SRA SLB SRB SBL
SBR
About automatic retry
Remeasurement starts automatically to receive proper result of measurement.
Remeasurement is performed to 2 times, and “Retry1” or “Retry2” is displayed on screen during
remeasurement.
About the error message
These error screens will be displayed when performing the measurements of Auto Setup/Room EQ and the automatic measurements can not be
completed because of the speaker arrangement, measurement environment, or other factors. Please check the following matters, reset the
pertinent items, and measure again.
When there is too much noise in the room, the speakers may not be detected properly. Should this happen, perform the measurements when
the noise level is low, or switch off the power of the equipment that is producing the noise for the duration of the measurements.
NOTES:
• Measurement is canceled when MASTER VOLUME
is operated while the Auto Setup is performed.
• Set the volume to halfway and set the crossover
frequency to the maximum or Low pass filter off if
your subwoofer speaker can adjust the output volume
and the crossover frequency.
q This screen will be displayed when the speakers required for
producing suitable reproduction have not been detected.
• The front L and front R speakers were not properly detected.
• Only one channel of the surround (A) and surround (B) speakers
was detected.
• Sound was output from the R channel when only one surround
back speaker was connected.
• The surround back or the surround (B) speaker was detected, but
the surround (A) speaker was not detected.
Check that the pertinent speakers are properly connected.
(see page 15)
w This screen will be displayed when the speaker polarity is
connected in reverse.
e This screen will be displayed when accurate measurements
cannot be made due to the input level to the microphone being too
high.
Set up the speakers so that their position is farther away from
the listening position.
Lower the volume of the subwoofer speaker.
r This screen will be displayed when the measurement microphone
is not connected, or when all of the speakers have not been
detected.
Connect the measurement microphone to the microphone
connector.
Check the speaker connections.
Check the polarity of the
pertinent speakers.
To Next Page
