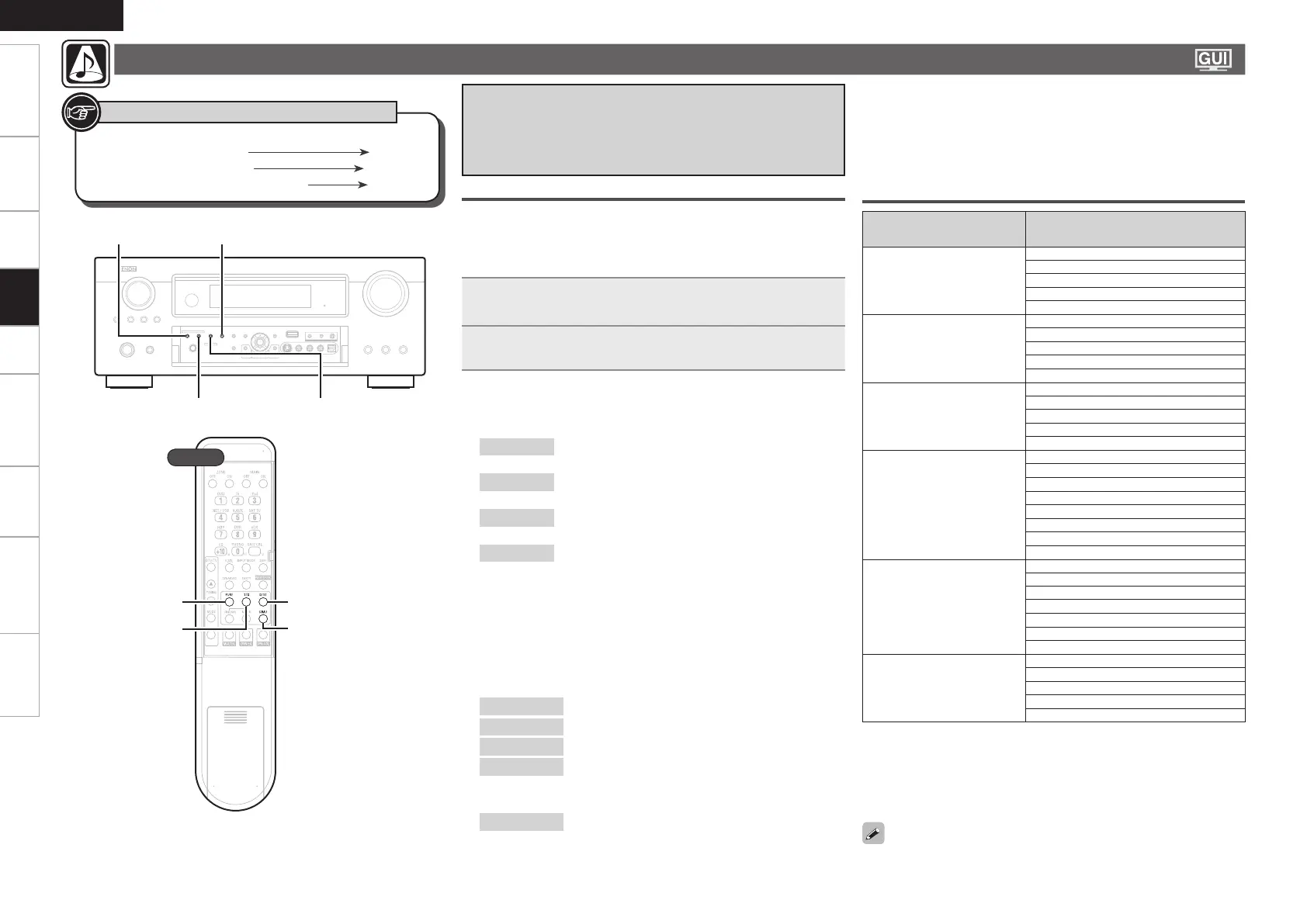

Getting Started Connections Settings Playback Remote ControlZONE2 Information Troubleshooting Specifications
ENGLISH
Surround Playback of 2-channel Sources
q The mode switches as shown below each time STANDARD is
pressed.
n
DOLBY PLgz
DOLBY PLgx
DOLBY PLg
DTS NEO:6
: The signals are decoded in DOLBY PL
gz for
playback.
: The signals are decoded in DOLBY PL
gx for
playback.
: The signals are decoded in DOLBY PL
g for
playback.
: The signals are decoded in DTS NEO:6 for
playback.
z1 : This can be set when “Amp Assign” is set to “Front Height” and
“Speaker Configuration” – “Front Height” is set to something
other than “None”.
z2 : This can be set when “Amp Assign” is set to “Normal” and
“Speaker Configuration” – “Surround Back” is set to something
other than “None”.
w Select the mode for the source at “Mode” (vpage 69).
Cinema
Music
Game
Pro Logic
Height
: This mode is suited for movie sources.
: This mode is suited for music sources.
: This mode is suited for games.
: This is the Pro Logic playback mode. This can
be selected when playing with a DOLBY PLg
decoder.
: This is the Front Height playback mode. Set
“Front Height” to “ON” (vpage 70).
The modes that can be selected depend on the input source being
played.
b
q Playing Sources According to the
Sources’ Audio Signal Format/
Number of Channels (Standard
Playback)
1
Playing the source (vpage 51).
2
Press STANDARD to select the surround mode.
Operations
The selectable surround modes depend on the following:
Format of the audio signals being input
Number of channels of the audio signals being input
The set amplifier assignment (vpage 33)
•
•
•
z1
z2
Surround Playback of Multi-channel Sources
(Dolby Digital, DTS, etc.)
In the case of standard playback of multi channel sources, the AVR-
990 recognizes the format of the multi-channel audio input signal
and automatically operates the appropriate decoder for surround
sound.
n
DSP SIMULATION
DIRECT/STEREO
PURE DIRECT
STANDARD
DSP
SIMULATION
DIRECT/STEREO
PURE DIRECT
STANDARD
Button located on both the main unit
and the remote control unit
BUTTON
Button only on the main unit
<BUTTON>
Button only on the remote control unit
[BUTTON]
Symbols used to indicate buttons in this manual
Selecting the Surround Mode
Input signal
The indication contents of the
display
DOLBY DIGITAL
(other than 2ch) /
DOLBY DIGITAL EX
DOLBY DIGITAL
DOLBY DIGITAL EX
DOLBY DIGITAL+PLgx CINEMA
DOLBY DIGITAL+PLgx MUSIC
DOLBY DIGITAL+PLgz HEIGHT
DOLBY DIGITAL Plus (z4)
DOLBY DIGITAL+
DOLBY DIGITAL
+
+EX
DOLBY DIGITAL
+
+ PLgx CINEMA
DOLBY DIGITAL
+
+ PLgx MUSIC
DOLBY DIGITAL
+
+ PLgz HEIGHT
DOLBY TrueHD (z4)
DOLBY TrueHD
DOLBY TrueHD+EX
DOLBY TrueHD+PLgx CINEMA
DOLBY TrueHD+PLgx MUSIC
DOLBY TrueHD+PLgz HEIGHT
DTS (5.1ch) /
DTS-ES Discrete 6.1 /
DTS-ES Matrix 6.1 /
DTS 96/24
DTS SURROUND
DTS+PLgx CINEMA
DTS+PLgx MUSIC
DTS+PLgz HEIGHT
DTS+NEO:6
DTS ES MTRX6.1 (z1)
DTS ES DSCRT6.1 (z2)
DTS 96/24 (z3)
DTS-HD (z4)
DTS-HD HI RES
DTS-HD MSTR
DTS-HD+NEO:6
DTS-HD+PLgx CINEMA
DTS-HD+PLgx MUSIC
DTS-HD+PLgz HEIGHT
DTS EXPRESS
PCM (multi ch)
MULTI CH IN
MULTI IN+PLgx CINEMA
MULTI IN+PLgx MUSIC
MULTI IN+PLgz HEIGHT
MULTI CH IN 7.1
z1 : This is displayed when the input signal is “DTS-ES Matrix 6.1”
and the AVR-990’s “AFDM” setting is set to “ON”
z2 : This is displayed when the input signal is “DTS-ES Discrete
6.1”.
z3 : This is displayed when the input signal is “DTS 96/24”.
z4 : When a signal is input, the HD AUDIO indicator lights.
For details, see page 93, 94.
Playback
Displaying the Currently Playing Surround Mode
Rear
