Speaker connection
Install speakers and connect them to this unit (vpage25, 28).
Speaker installation

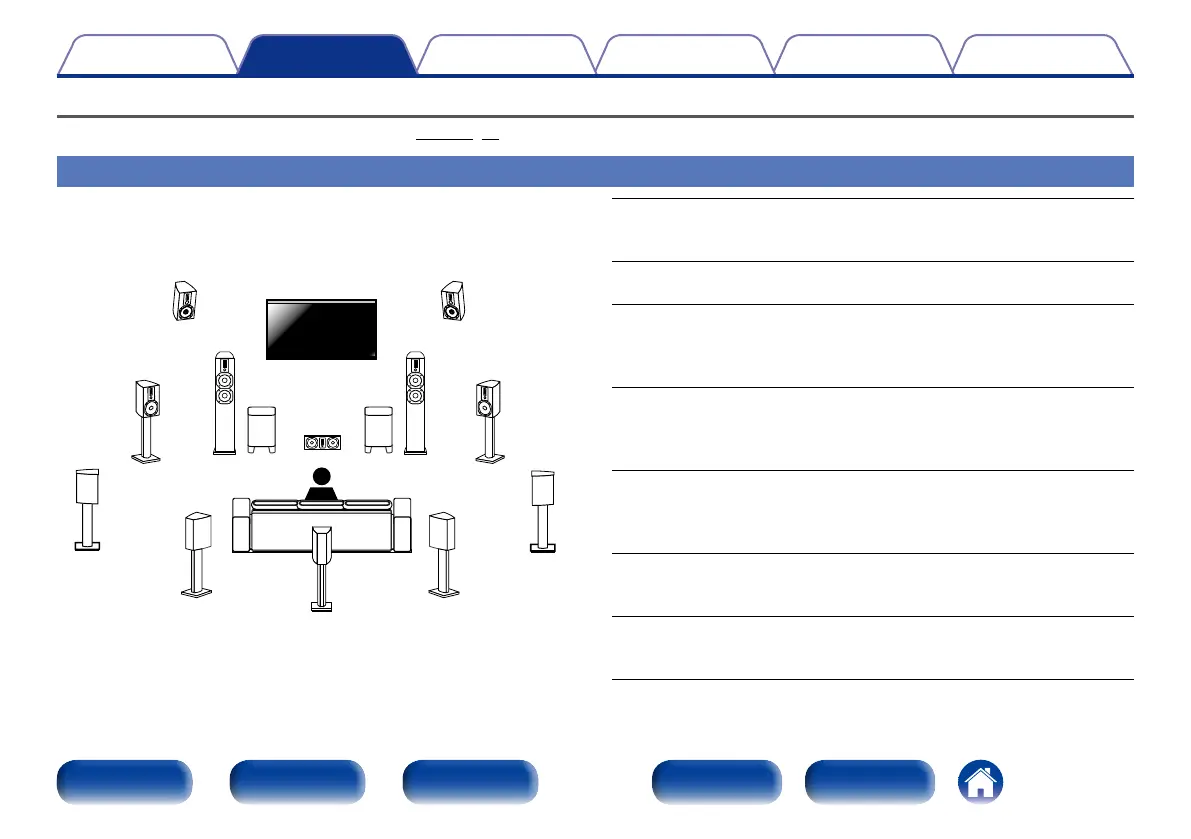

Determine the speaker system depending on the number of speakers you
are using and install each speaker and subwoofer in the room. Here, we
explain how to install the speakers using a typical example.
FHL FHR
FL FR
FWL FWRSW1
C
SW2
SL SR
SBL SB SBR
FL/FR : Place the FRONT left and right speakers an equal distance from
the main listening position. The distance between each speaker
and your TV should also be the same.
C : Place the CENTER speaker in between the front speakers and above
or below your TV.
SL/SR : Place the SURROUND left and right speakers an equal distance
to the left and right sides of the main listening position. If you
don’t have Surround Back speakers, move the surround speakers
slightly behind your listening position.
SBL/SBR (SB) : Place the SURROUND BACK left and right speakers
an equal distance from the main listening position and
directly behind the main listening position. If you only
have one Surround Back speaker, center it.
FHL/FHR : Place the FRONT HEIGHT left and right speakers just outside
of the front left and right speakers. Mount them as close to the
ceiling as possible and aim them towards the main listening
position.
FWL/FWR : Place the FRONT WIDE left and right speakers outside of the
front left and right speakers so that there is an equal distance
between all front speakers.
SW : Place the SUBWOOFER at a convenient location near the front
speakers. If you have two subwoofers, place them symmetrically
across the front of your room.

Denon AVR-X4000 Specifications

General

Receiver type	-
Frequency range	10 - 100000 Hz
Output impedance	16 Ω
Speaker selector	A+B
Input sensitivity	200 mV
Audio output channels	7.2 channels
Signal-to-Noise Ratio (SNR)	102 dB
Total Harmonic Distortion (THD)	0.008 %
Power output per channel (1KHz@6 Ohm)	165 W
Power output per channel (20-20KHz@8 Ohm)	125 W
HDMI in	7
AC (power) in	Yes
Composite video in	4
Ethernet LAN (RJ-45) ports	1
Component video (YPbPr/YCbCr) in	2
Number of HDMI outputs	3
Connectivity technology	Wired
Speakers connectivity type	Banana connector
Audio formats supported	AAC, FLAC, MP3, WAV, WMA
Image formats supported	JPG
Wi-Fi	No
RDS features	PTY, TP
FM band range	87.5 - 108 MHz
Supported radio bands	FM
Internet radio services supported	Spotify, vTuner
Supported video modes	1080i, 1080p, 480p, 576p, 720p
Display	VFL
Color depth	24 bit
Aspect ratio	4:3, 16:9
Product color	Silver
Audio decoders	Dolby Digital, Dolby Digital EX, Dolby Digital Plus, Dolby Pro Logic II, Dolby Pro Logic IIx, Dolby Pro Logic IIz, Dolby TrueHD, DTS-ES (Discrete 6.1), DTS-ES (Matrix 6.1), DTS-HD, DTS-HD Master Audio
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Apple docking compatibility	Not supported
AC input voltage	230 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	670 W

Weight and Dimensions

Depth	379 mm
Width	434 mm
Height	167 mm
Weight	12300 g
