13

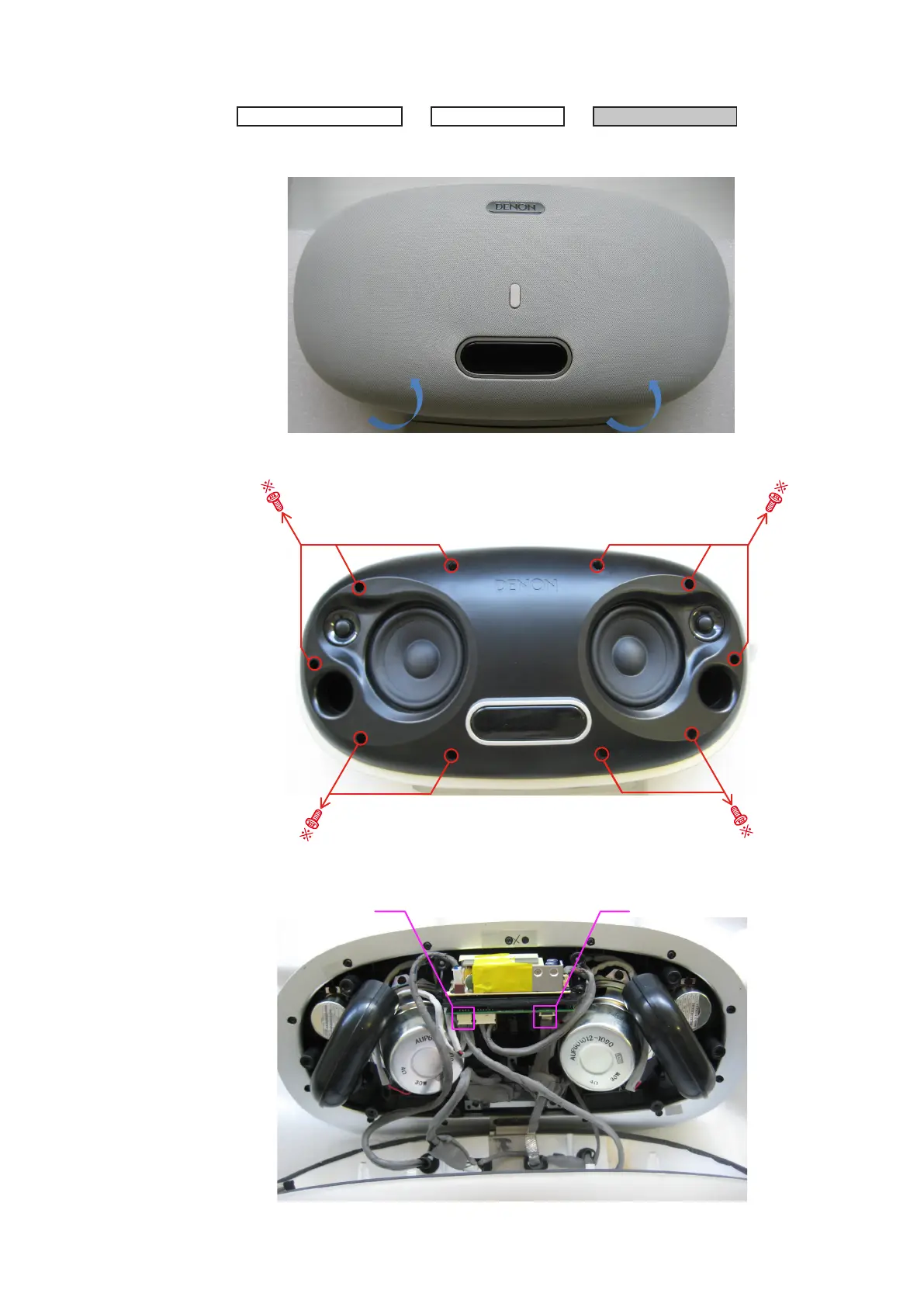

3.
POWER PWB UNIT
(1)
Remove the Speaker grill net.
(2)
Remove the screws of cabinet.
(3)
Remove the wire and FFC.
SPEAKER GRILL NET
→
FRONT CABINET
POWER PWB UNIT
→
Proceeding :
Shooting
direction: A
Shooting
direction: A
Shooting direction: B
FFC
Wire
12
14
Table of Contents
Table of Contents
2
About this Manual
3
What You Can Do with this Manual
3
Using Adobe Reader (Windows Version)
4
Safety Precautions
6
Note for Schematic Diagram
7
Technical Specifications
8
Dimension
8
Disassembly
9
Main Pwb Unit
11
Cx870 Module
12
Power Pwb Unit
13
Speaker Driver (Tweeter)
15
Speaker Driver (Woofer)
16
Dock Connector & Oled Assy
17
Amplifier Pwb Unit
18
Touch Key Pwb Unit
19
Special Mode
20
How to Enter Special Mode
20
Initialization Mode (Factory Reset)
21
Version Display Mode
21
Protection History Mode
22
Block Diagram
23
Power Block Diagram
24
Printed Wiring Boards
25
Amp
25
Ipod
25
Oled
26
Main
26
Touch
27
Procedure for Upgrading the Version of the Firmware
28
Version Upgrade Procedure of Firmware
28
Trouble Shooting
30
Check 20V
30
Check 12V
30
Check VMCU
31
Check 3V3
31
Check 1V9
32
Check 1V2
32
Check 5V
33
Check ADSP_1V1
34
No Sound from Lch/Rch Woofer
35
No Sound from L/Rch Tweeter
36
Schematic Diagrams (1/10)
38
Amplifier
38
Ipod
39
Power
40
Connectors
41
Mcu & Switch
42
Adi Dsp
43
Adc
44
Ethernet Port
45
Touch Board
46
Smps
47
Wiring Diagram
48
Exploded View
49
Parts List of Exploded View and Pcb
51
Packing View
54
Parts List of Packing & Accessories
55
Semiconductors
56
IC's
56
