8514-296-001 REV K page 11
2.3.4

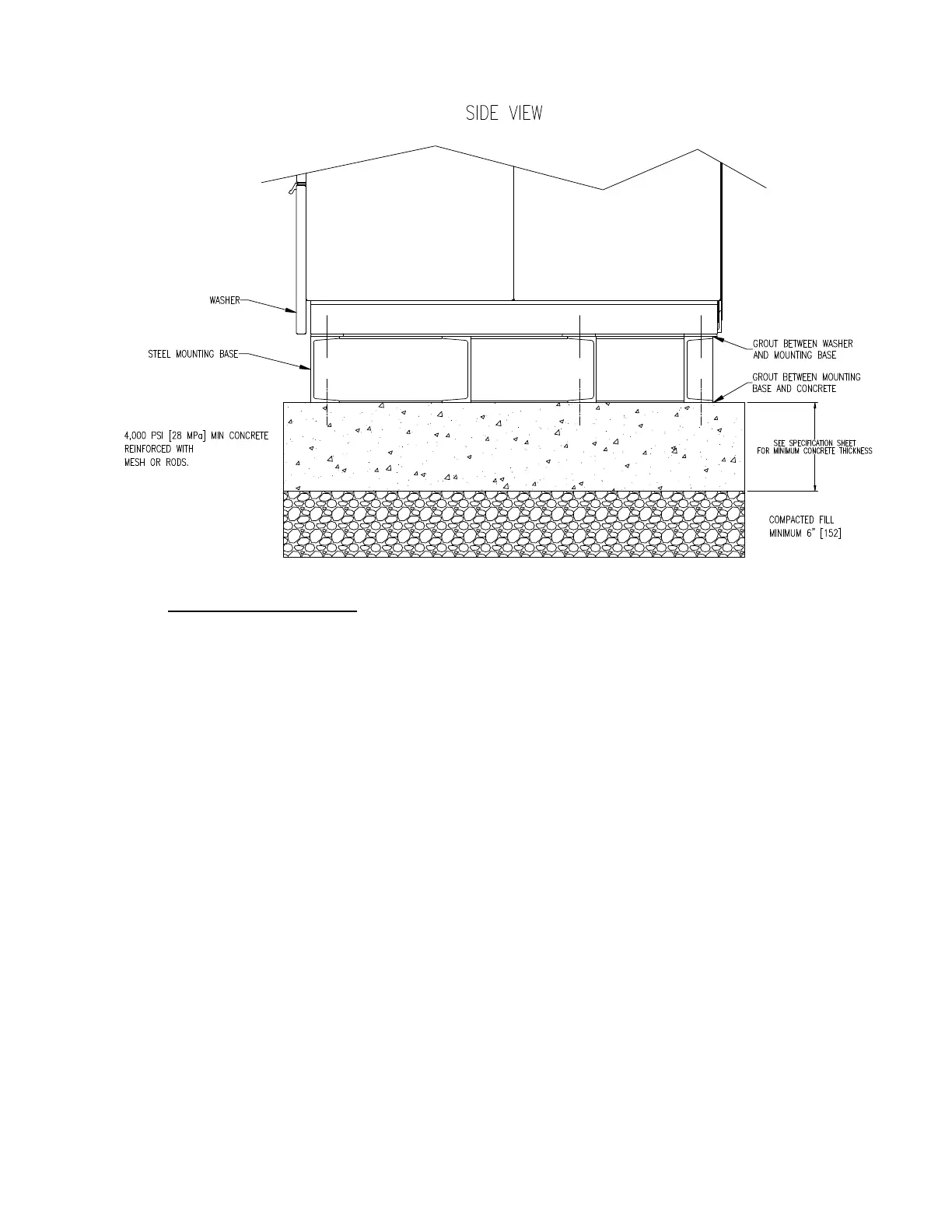

STEEL MOUNTING BASE ON CONCRETE FLOOR:
2.4 MACHINE ANCHORING
All installations require concrete floors and quality grade anchor bolts or
expansion anchors. Mounting hardware is not provided with the
machines. Refer to appropriate model Machine Mounting Detail Figures 1-
1, 1-2 and 1-3 for floor thickness and bolt sizes. See mounting diagram
for overall washer dimensions.
EXPANSION ANCHORS ARE NOT RECOMMENDED FOR USE IN RAISED
CONCRETE PEDESTALS BECAUSE THE ANCHORS ARE TOO CLOSE TO AN
EDGE, CAUSING IT TO BREAK OUT.
ANCHORING OPTIONS:
2.4.1
Cast in place bolts headed by square fish plates. See Machine Mounting
Detail Figures 1-1 thru 1-3 for exact washer model.
Or after concrete has completely cured:
2.4.2
Use Hilti Adhesive System ‘HAS’ Rods and adhesive capsules. See
Machine Mounting Detail Figures 1-1 thru 1-3 for exact washer model.
2.4.3
Or use an equivalently rated epoxy or acrylic adhesive anchor.
As an installation aid, the anchor pattern can be found on the back
panel of the washers and can be used as a template. Compare
panel to the mounting dimension drawing to find the right holes.
Example:
