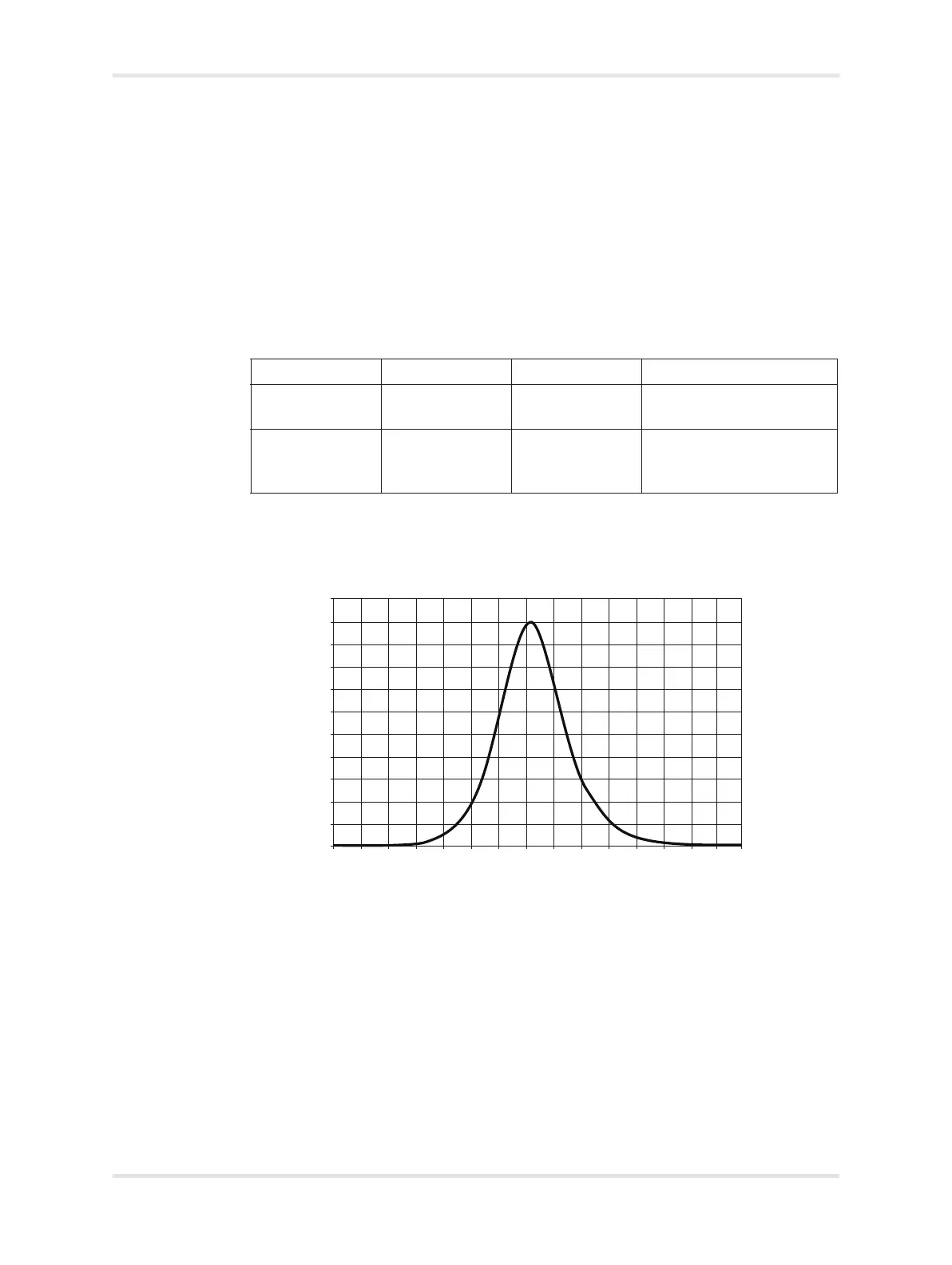

14.7 Irradiance
The effective irradiance for bilirubin disassociation Ebi depends on the distance
between the patient and the phototherapy light. The values below are at the 100%
irradiance setting.
Values are typical.
14.7.1 Spectral irradiance distribution graph
Pin assignment
Pin 2 RXD
Pin 3 TXD
Pin 5 GND
30 cm 40 cm 50 cm
Ebi [mW/cm
2
]
(400-550 nm)
3.42 2.01 1.34
Eλ
mean
[µW/cm
2
/nm]
(460-490 nm)
85.5 50.1 33.4
Relative irradiance
Wavelength (nm)
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1
1.1
400 410 420 430 440 450 460 470 480 490 500 510 520 530 540 550
