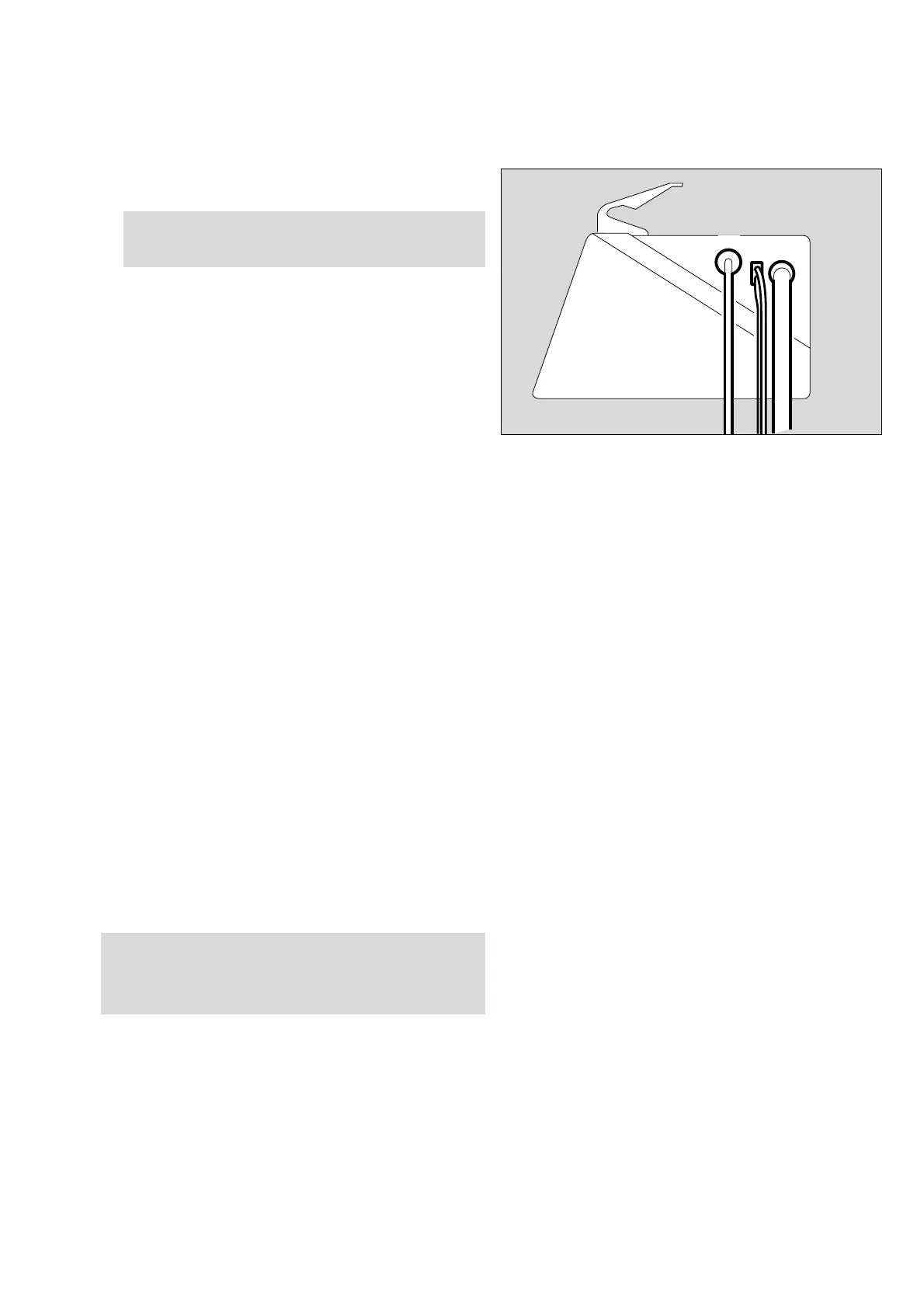

1 Screw medical gas hose firmly into place by hand.
2 Plug flow measuring hoses into Oxylog 2000.
Do not allow pressure to build up at the connector
for flow measurement, otherwise the internal
sensor may be destroyed!
3 Connect ventilation hose to socket on Oxylog 2000.
Connecting power supply
Oxylog 2000 is designed to operate on power supplies
with different voltages:
Internal supply
Internal rechargeable NiCd battery pack
or
alkaline manganese batteries.
Additional external power supply
DC voltage from the on-board power supply via
DC/DC converter
or
power supply unit.
To recharge the NiCd battery pack
and
to extend the electrical operation time when using NiCd
or alkaline manganese batteries.
A fully charged NiCd battery pack or fresh alkaline
manganese batteries must always be installed for
safety reasons, even when operating from an external
power supply!
When operating with internal NiCd battery pack
Fit NiCd battery pack, see page 38.
21
Preparation
Assembly
Connecting power supply
23
1
02329033
