GETTING TO KNOW YOUR DREMEL LC40 LASER CUTTER
21 3
5
4

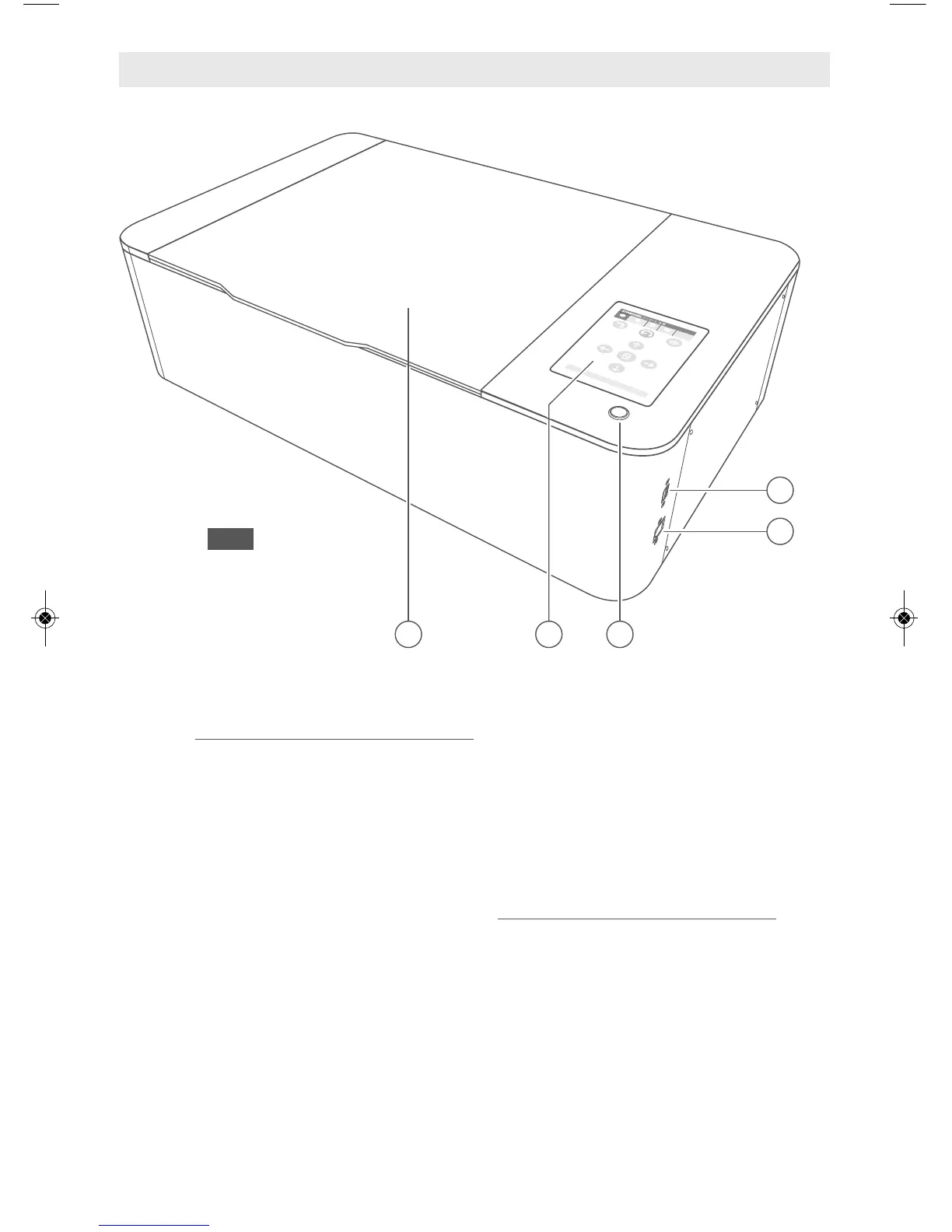

Fig. 1
Dremel LC40 Laser Cutter
1. Lid
2. LCD Touchscreen
3. Start Button
4. USB Port (for service only)
5. Ethernet Port
6. LED Lights
7. Laser Tube Guard
8. Honeycomb Plate
9. Gantry
10. Mirror 1
11. Beam Combiner Lens
12. Mirror 2
13. Laser Head
a. Mirror 3
b. Focus Lens
c. Air Assist Nozzle
d. Laser Head Knob
e. Wide Angle Camera
14. Power Switch
15. Power Cord
16. Hex Box™ Power Outlet
17. Air Inlet
18. Exhaust Shroud
19. Water Outlet
20. Water Inlet
Hex Box™
21. Water Tank Cap
22. Water Tank
23. Power Inlet
24. Air Outlet
25. Water Outlet
26. Water Inlet
