Dremel DIGILAB LC40 Operating And Safety Instructions

23

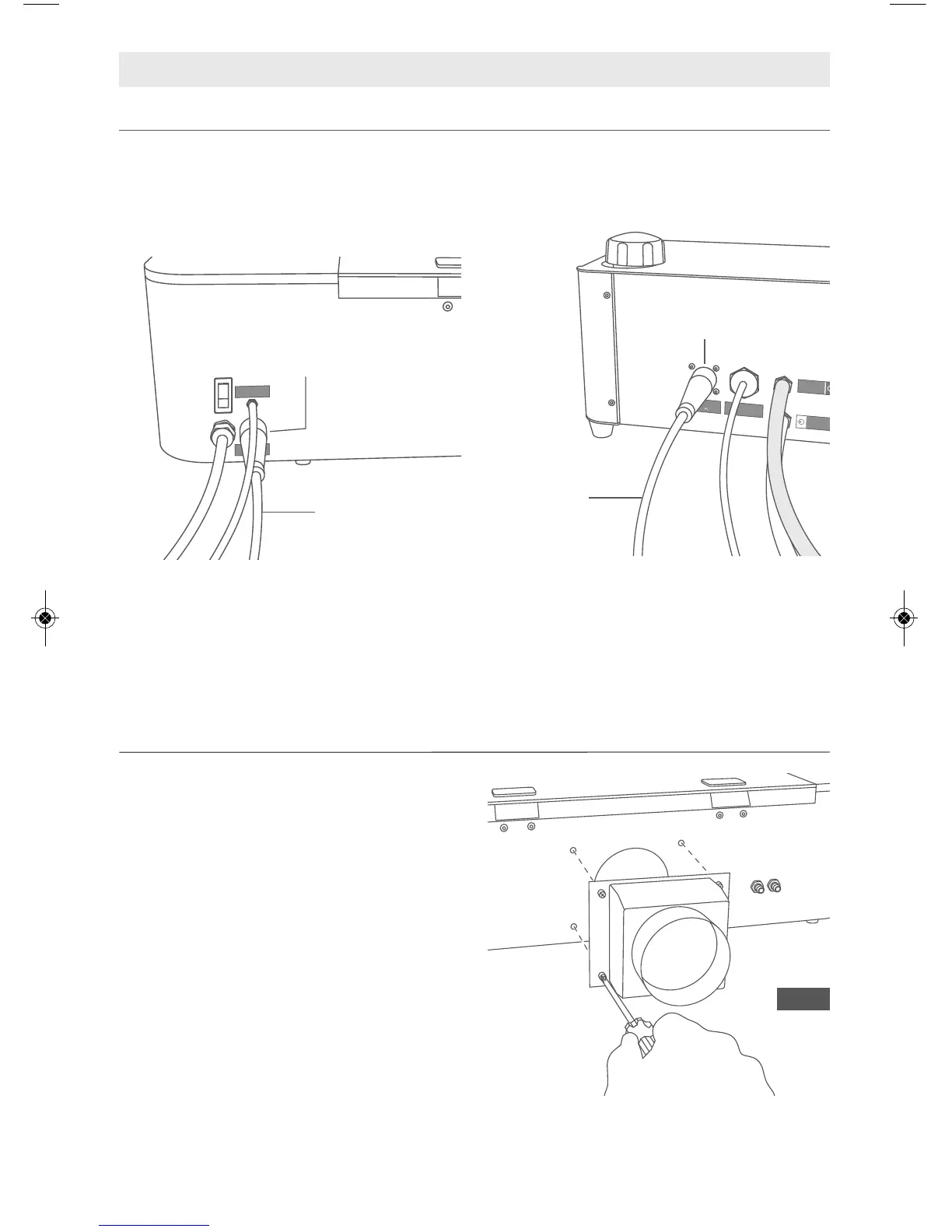

Connect the Hex Box™ connector cord to
the Dremel LC40 Laser Cutter and the
Hex Box™. Fig. 12 & 13.
Connect Hex Box™ Connector Cord
AIR TUBE
TUYAU À AIR
TUBO DE AIRE
WATER IN
ENTRÉE D’EAU
ENTRADA DE AG
WATER OUT
SORTIE D’EAU
SALIDA DE AGUA
Hex Box
12V
Connector
Cord
AIR TU
BE
TUYA
U À AIR
TUBO DE AIRE
Hex Box
12V
Connector
Cord
SETUP
Connector
Fitting
Connector
Fitting
Fig. 12 — Rear of Dremel LC40 Laser Cutter
Fig. 13 — Rear of Hex Box™
Attach Exhaust Shroud
Fig. 14
Using a screwdriver, attach the Exhaust
Shroud to the back of the Dremel LC40
Laser Cutter, Fig. 14. Ensure that the
Exhaust Shroud is flush and tight against
the back surface of the Dremel LC40
Laser Cutter.
Attachment of the Exhaust Hose to the
Exhaust Shroud is explained in the
Exhaust Management section.
DM 1600A01CX8 08-18 LC40 EN.qxp_LC40 8/17/18 10:32 AM Page 23
