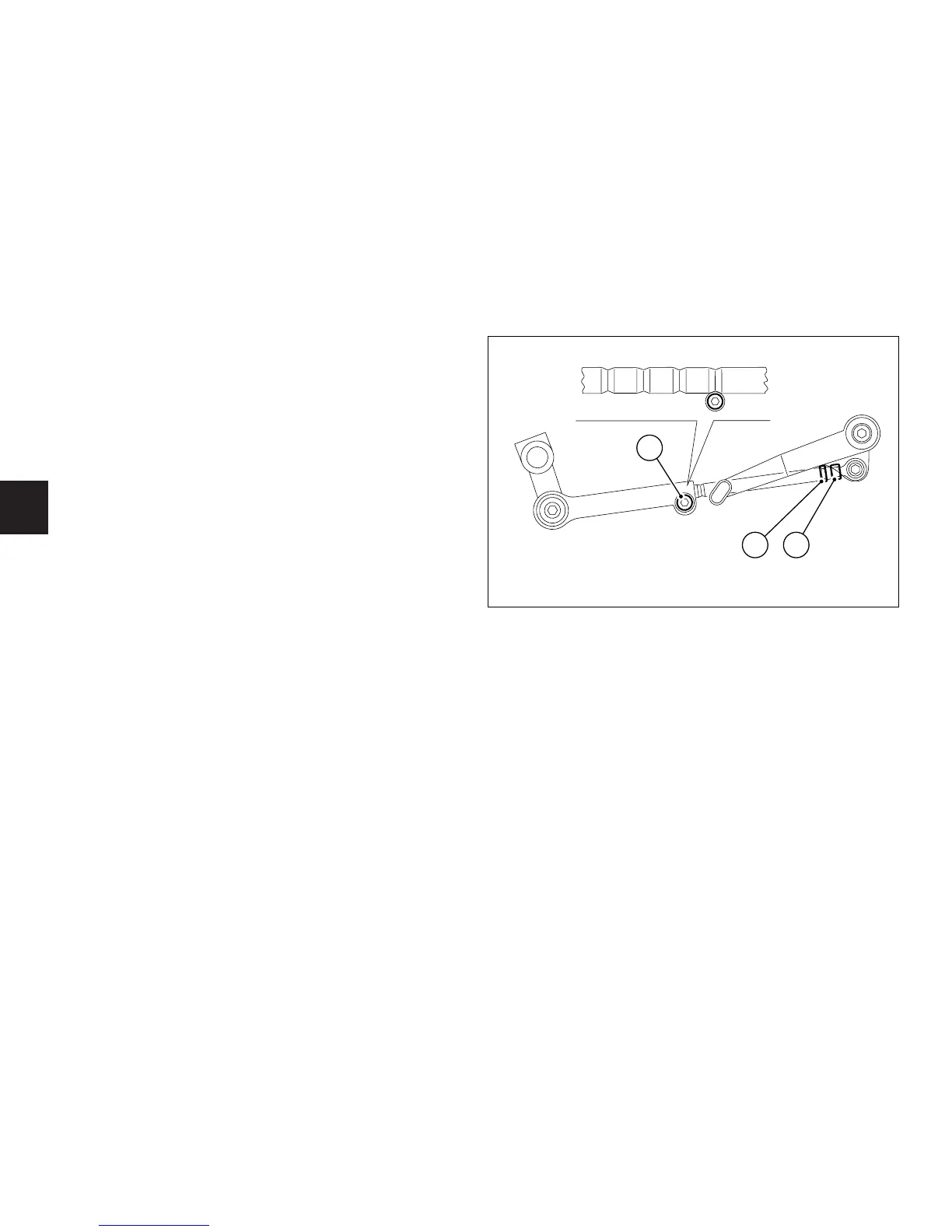

fig. 26
Gear change pedal adjustment (fig. 26)
Gear change pedal position relative to the footpeg may
be adjusted to suit rider preferences.
There are three different adjustments available:
Approximate adjustment of pedal position
Fit a wrench into the socket (1) to lock out removable
linkage rotation and slacken the locknut (3). Release and
remove the screw (2) and adjust the linkage axially so as
to set the gear change pedal in the desired position. The
linkage has four positions determined by the axis of the
screw (2). When finished, tighten the screw (2) and the
locknut (3).
Fine adjustment
Fit a wrench into the socket (1) to lock out removable
linkage rotation and slacken the locknut (3). Rotate the
linkage working the socket (1) so as to set pedal in the
desired position. When finished, tighten the locknut (3).
Combined adjustment
Both adjustment techniques may be used together. Make
sure to tighten locknut (3) and screw (2) when finished.

Ducati 999S Specifications

General

Displacement	998 cc
Transmission	6-speed
Rear Brakes	Single 240 mm disc, 2-piston caliper
Bore x Stroke	100 mm x 63.5 mm
Frame	Tubular steel trellis
Engine Type	L-twin, 4 valves per cylinder, Desmodromic
Front Suspension	Showa 43 mm fully adjustable upside-down fork
Rear Suspension	Fully adjustable Ohlins monoshock
Front Brakes	2 x 320 mm discs, 4-piston calipers
Fuel Capacity	15.5 liters
Fuel Injection	Marelli electronic fuel injection
Exhaust	2-1-2 system with catalytic converter
Torque	106 Nm @ 8, 000 rpm
