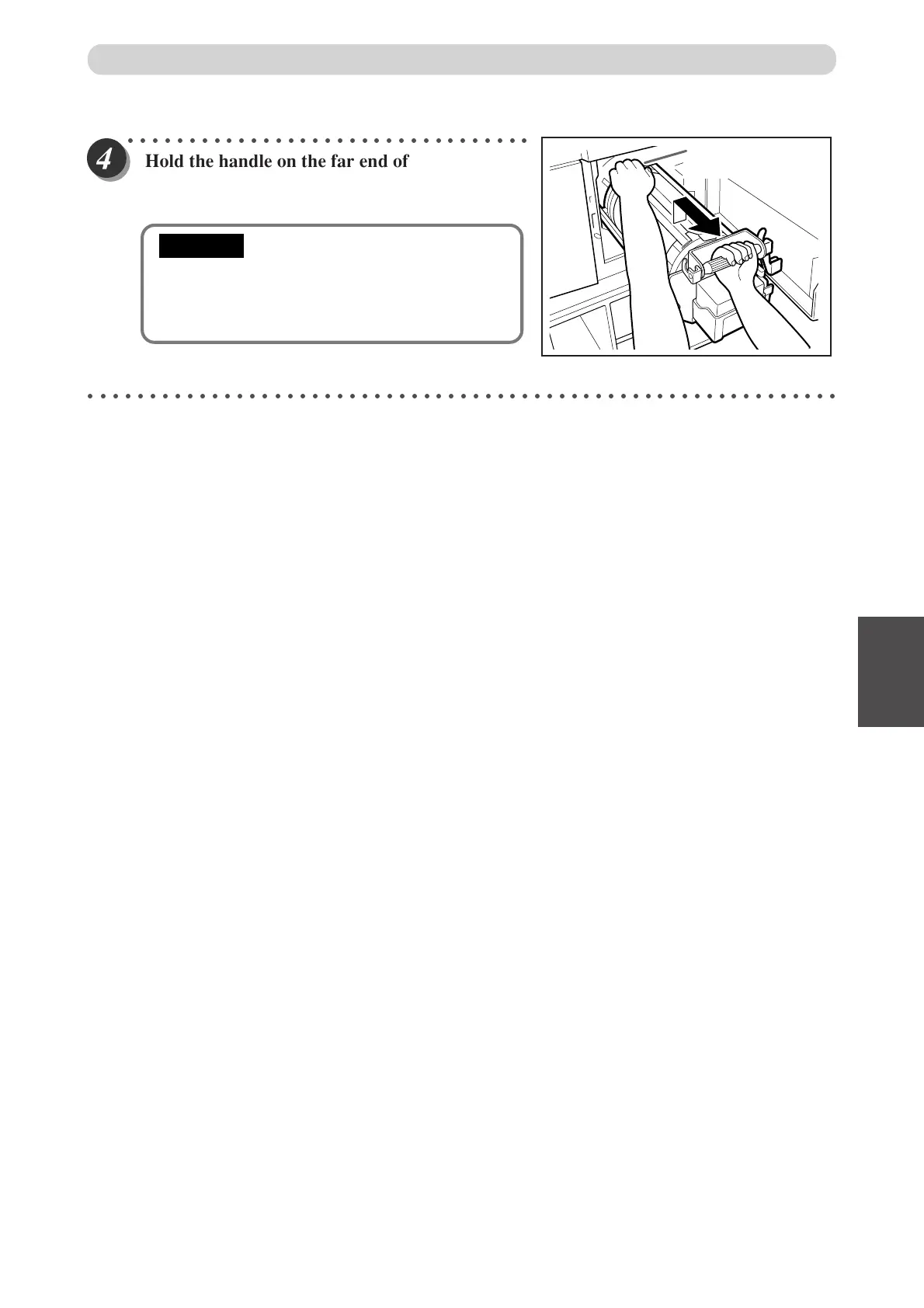

Replacing Consumables
Handle for end
of drum
○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Hold the handle on the far end of the drum, and
lift the fr
ont end of the drum slightly to pull the
drum toward you.
•
Do not touch the drum surface. Ink may
transfer to your clothes.
•
Hold the drum level and place it on a flat,
solid surface.
○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Replacing the Drum Unit
IMPORT
ANT
88
90
