Duplo DP - M420 User Manual

86

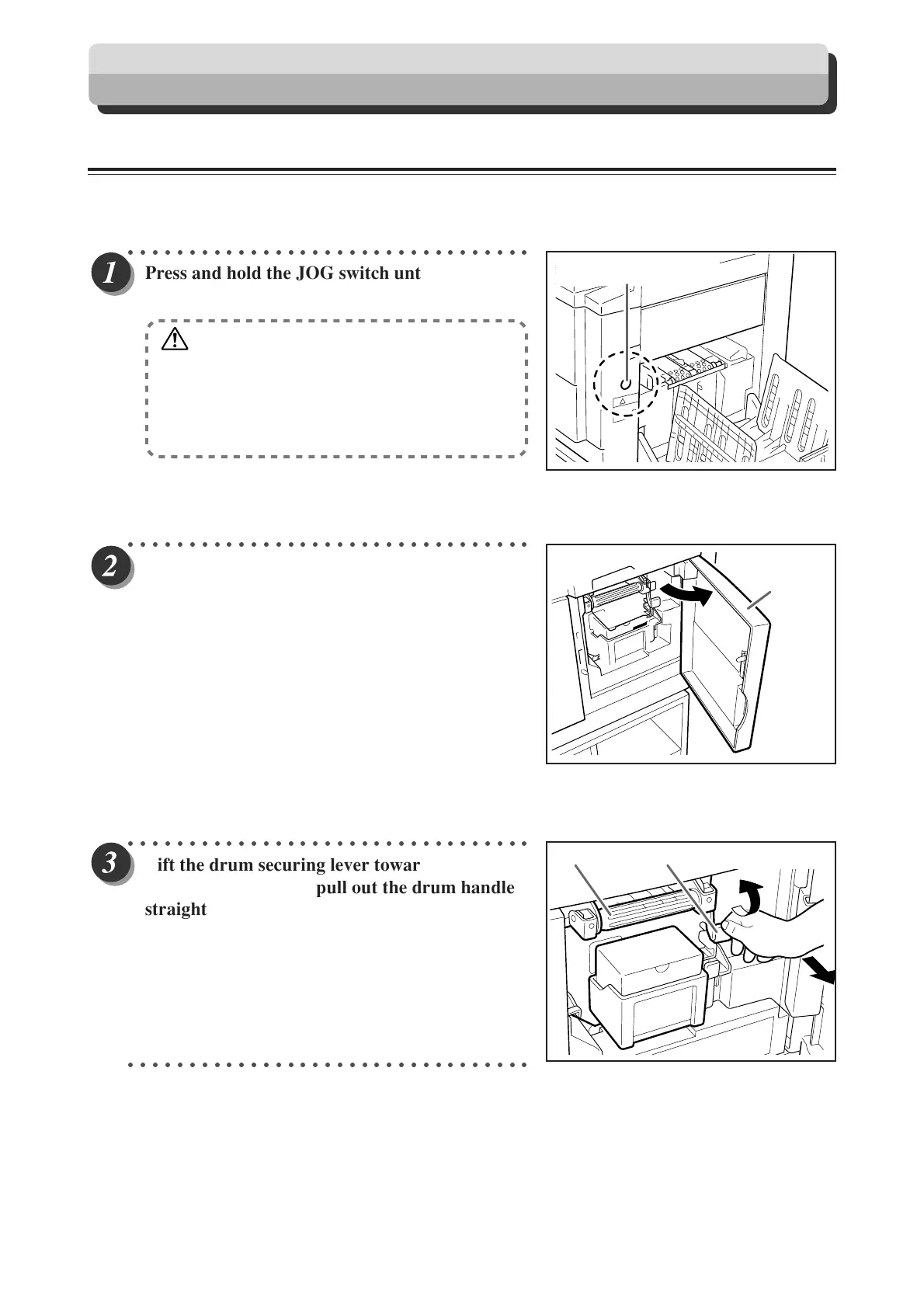

Replacing the Drum Unit
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Press and hold the JOG switch until the drum
comes to a stop with a beep.
WARNING
• Do not touch the drum or rollers when you
operate the JOG switch.
• Do not put your hands or fingers inside the
machine while it is operating. Your hands may
be pulled in or nipped.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Open the front co
ver toward you.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Lift the drum securing lever toward you and,
holding it there
, then pull out the drum handle
straight toward you until it stops.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Removing the Drum Unit
Drum securing leverDrum handle
Front cover
JOG switch
