4.4 SSD 4 Replacement Procedures
Satellite C40-G/Pro-C40-G Maintenance Manual 4-11
4.4 SSD
Removing SSD
Remove SSD according to the following procedures and Figures 4-13.
CAUTION: Do not touch the connectors on SSD and in the computer with your bare
hands. SSD can fail if they are contaminated with sweat, natural oils, etc. from your
hands.
1. Remove thermally conductive pad
2. Remove one M2.0x2.5x5.0 black Phillips head screw securing the SSD.
3. Pull SSD from CN8 on system board.

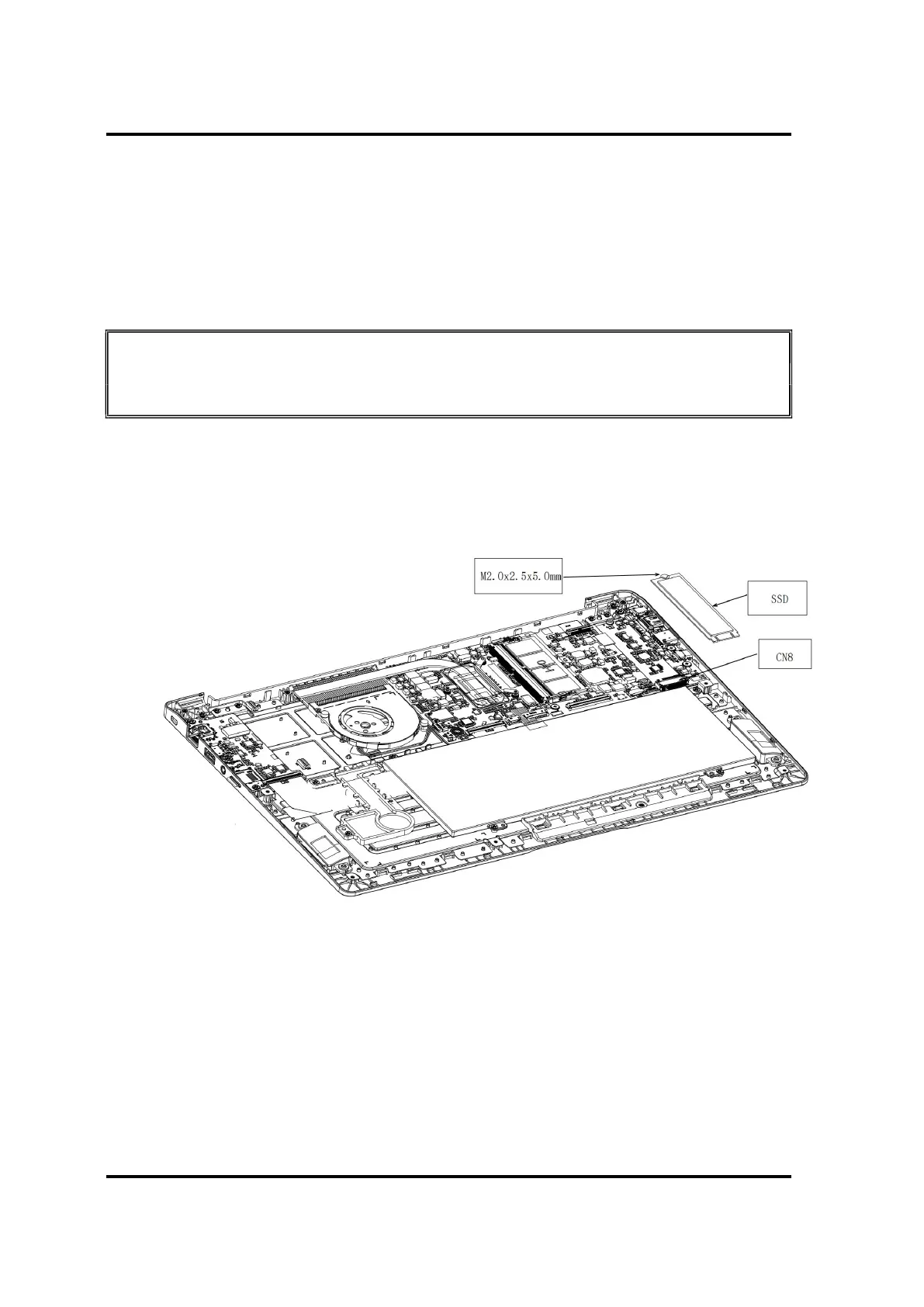

Figure 4-13Removing SSD
To Next Page
