4.9 IO Board 4 Replacement Procedures
Satellite C40-G/Pro-C40-G Maintenance Manual 4-22
4.9 IO Board
Removing IO Board
Remove IO Board according to the following procedures and Figures 4-23.
1. Disconnect the following cable from the connector on IO Board:
- IO Board cable from JDB1
2. Remove three M2.0x3.0x4.5 black Phillips head screw securing IO Board.
3. Remove the IO panel Myla.

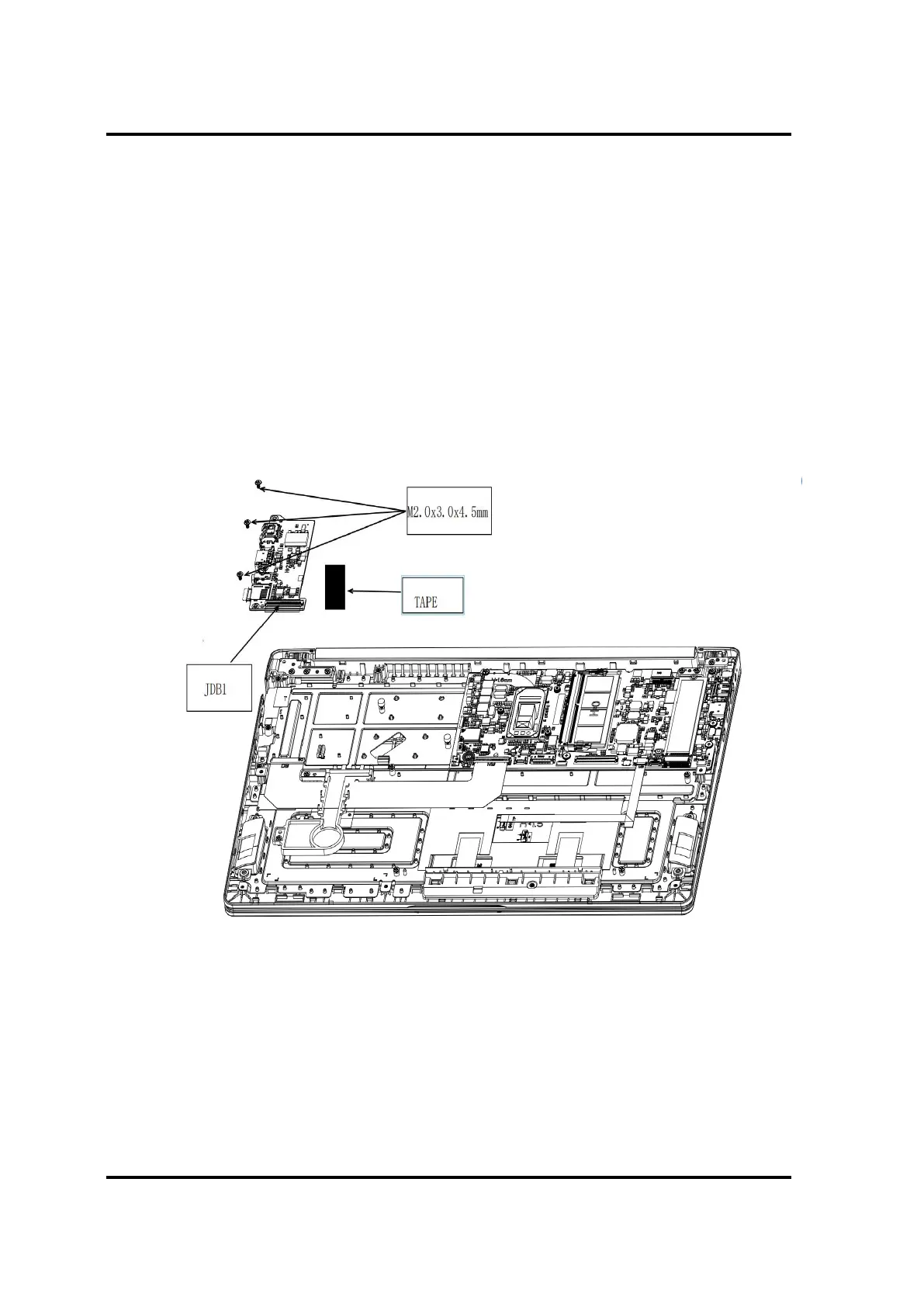

Figure 4-23 Removing IO Board
