Table 3-2: Space reservation for the UPS cabinet
Exhaust Clearance
Above the cabinet D1
300 mm
In front of the cabinet D2
900 mm
Behind the cabinet D3
600 mm
* Wiring might need larger space.
The picture takes a 60kW cabinet as an example

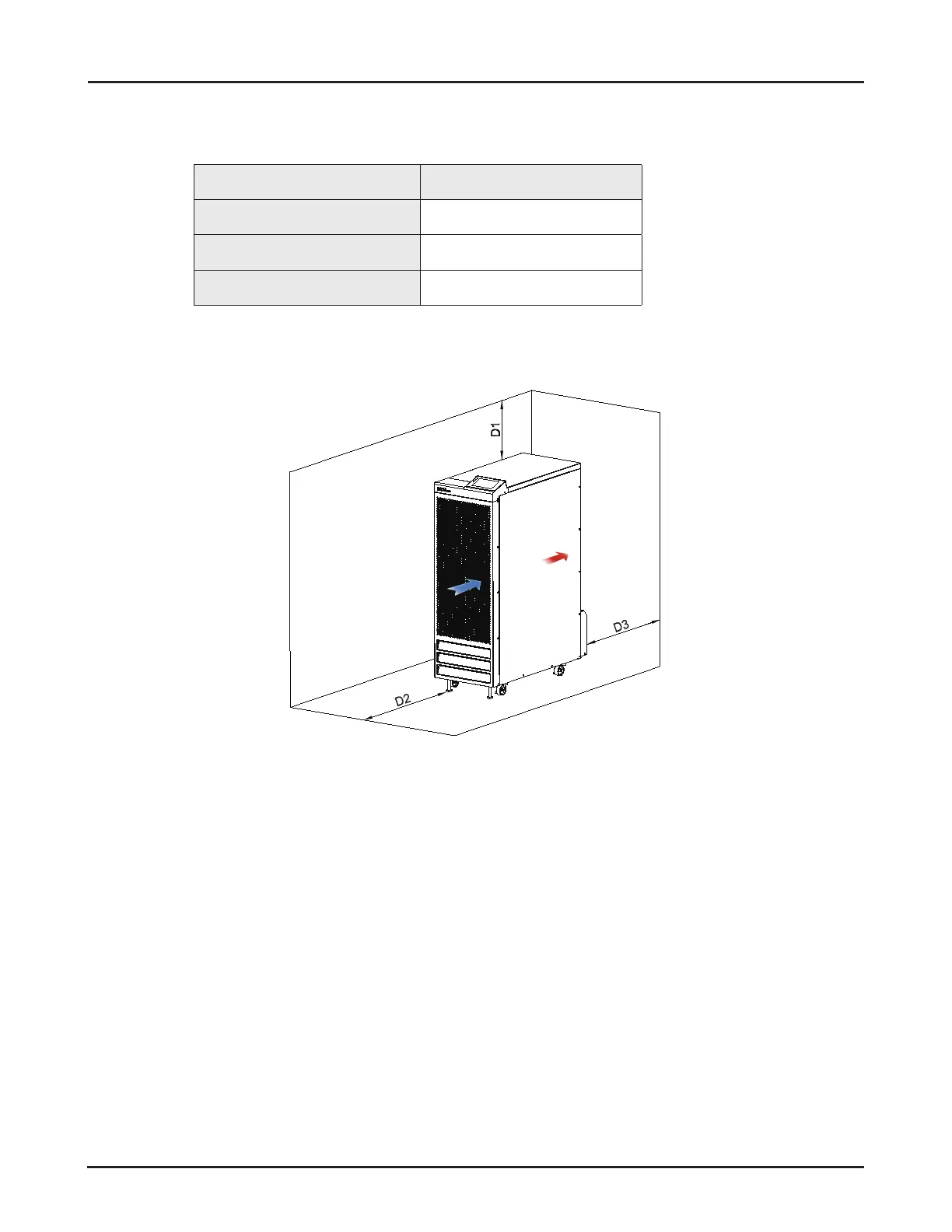

Figure 3-1: Clearance for the UPS cabinet.
• If D3 clearance available is smaller than 600mm, please contact Eaton service team.
• Refer to
Table 3-2
and
Figure 3-1
for clearance details. Please reserve minimum 600mm
clearance on the side of the UPS for maintenance. If there is insufcient space on both
sides, please reserve minimum 800mm cable length at D3 to pull out the UPS to the front for
maintenance.
The UPS and battery can achieve a longer service life if the ambient temperature is maintained
within 20–25
℃.
The ambient temperature of the UPS shall be controlled within 0–40
℃
. If working at temperatures
above 40
℃
, the use shall be derated.
The maximum ambient temperature of the UPS shall not exceed 50
℃
during operation, and high
temperature and high humidity shall be avoided.
