C441 Ethernet module user manual
(C441R, C441T, C441U, C441V)
EATON www.eaton.com
The C441R and C441U provide connection for four AC Input points
the ratings for these inputs are:
Table 6. AC Input Ratings
Specification Value
Number of Inputs 4
Nominal voltage 120 Vac
Nominal Current 15 mA
Operating Range 80 – 140 Vac
Operating Frequency 50/60 Hz
Signal Delay Max 30 ms
Input Type IEC 61131-2, type 1 digital
The C441T and C441V provide connection for four DC Input points.
The ratings for these inputs are:
Table 7. DC Input Ratings
Specification Value
Number of Inputs 4
Nominal voltage 24 Vdc
Nominal Current 5 mA
Type Current Sinking
Input Type IEC 61131-2, type 1 digital
All units provide two output relays. The ratings of the relay outputs
are:
Table 8. Relay Output Ratings
Specification Value
Num Contacts 2 Independent Relays (1 Form C, 1 Form A)
Thermal Contact 5 A
Rated Insulation Voltage 300 Vac
Max Operating Voltage 120 Vac
Max Operation Current 5 A
Electrical Life 110
5
Operations
Mechanical Life 110
6
Operations
3 Mounting and Dimensions
3.1 C441R and C441T
The Ethernet module is designed to be installed on the right side of
the Motor Insight base unit.

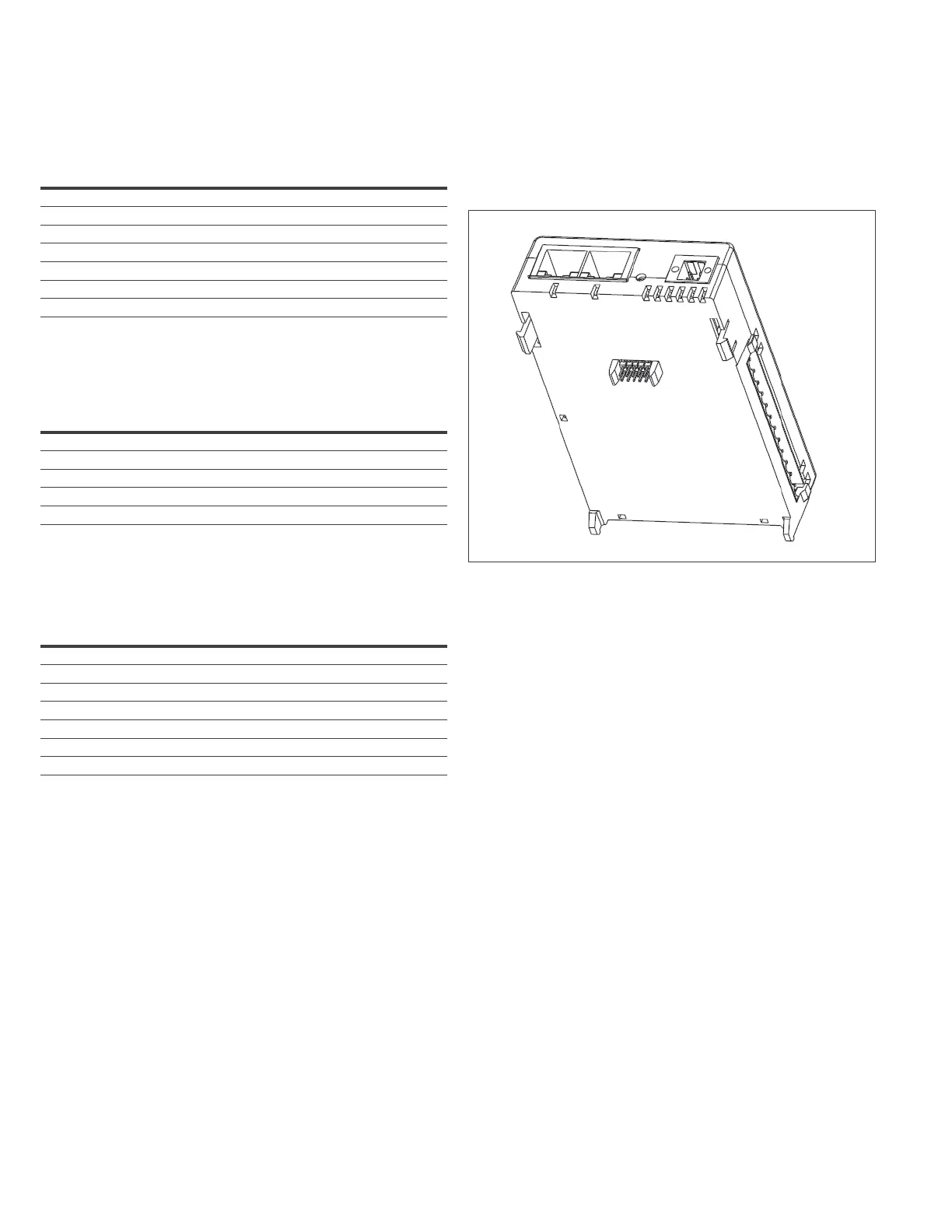

Figure 1. Installation Diagram
1. Align module with side of Motor Insight base unit
2. Slide module bottom pegs in appropriate slots
3. Rotate module up and gently click the base unit and module
together.
The resulting dimensions of the Motor Insight base unit and
Ethernet module is shown in Figure 2.
