6
User Manual
MN042
0000
2E
Effective January 20
16
C441 Ethernet module user manual
(C441R, C441T
, C441U, C441V)
EA
T
ON
www.eaton.com
3.2 C441U and C441V
The C441U and C441V ha
v
e both screw mounting f
eet and a din rail
spring mounting f
eat
ure.
T
o mount the adapter to a din rail place the bot
tom of the de
vice on
the rail first then apply gentle upward f
orce while pushing the de
vice
flat against the din rail.

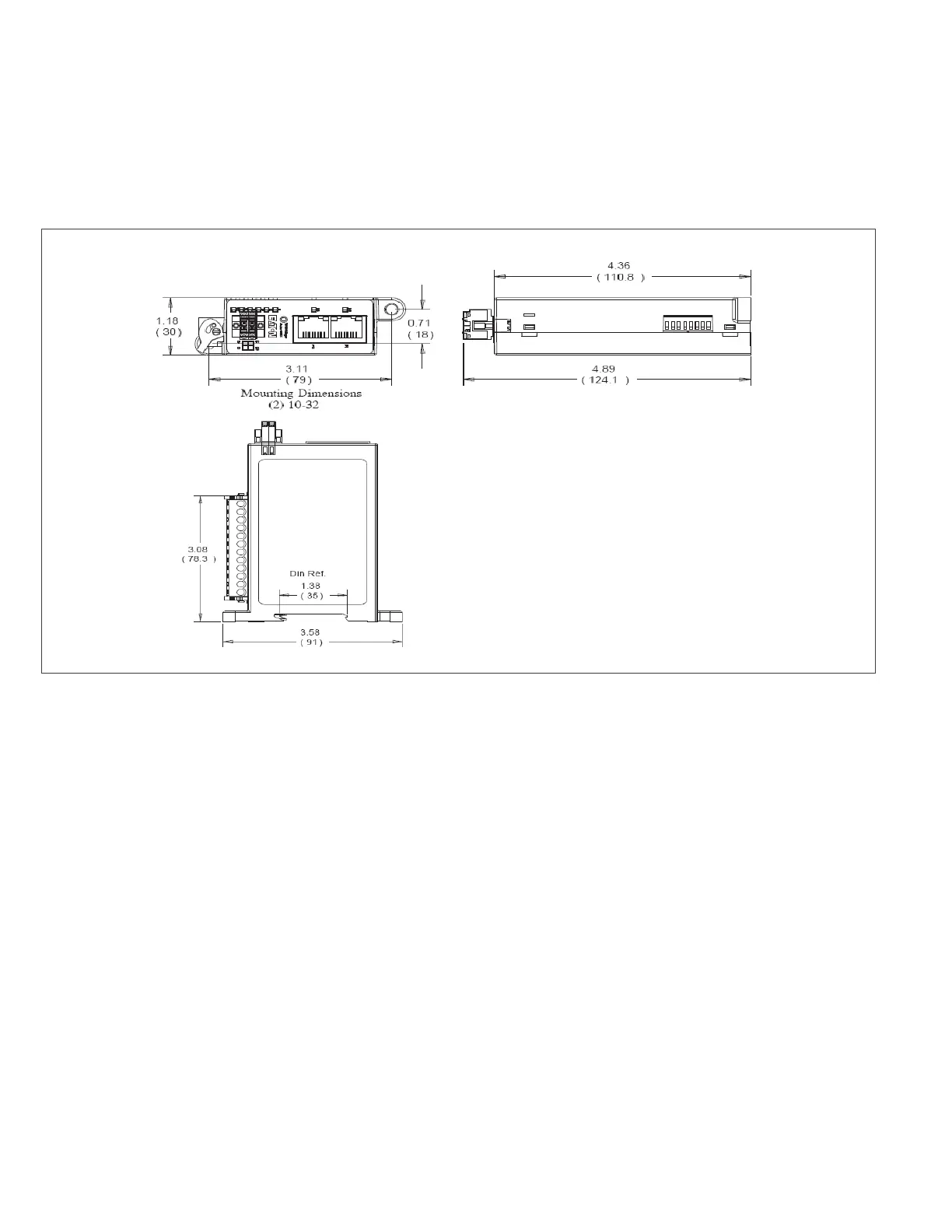

Figur
e 3.
C441U and C441V Dimensions and Mounting
5
7
Table of Contents
Table of Contents
2
Description
3
Introduction
3
Ratings
3
Mounting and Dimensions
4
C441R and C441T
4
C441U and C441V
6
Connections and Switch Settings
7
Connecting to an Ethernet Network
8
Setting the IP Address Mode
10
Connecting to the Modbus Serial Port
10
Connecting the I/O Points and Power Supply
11
S811+ to C441U and C441V
14
Status Indicators
14
Configuration Reset Button
15
Configuration
16
Configuration Using a Web Browser
16
Configuration Using an EDS File
16
Ethernet/Ip Protocol Support
16
Supported Connections
16
Ethernet/Ip Object Model for C441 Motor Insight
16
Ethernet/Ip Object Model for C440 Overload Relay
24
Ethernet/Ip Object Model for S611 Soft Starter
28
Ethernet/Ip Object Model for S811+ Soft Starter
35
Ethernet/Ip Object Model Stand Alone I/O
48
Modbus TCP and Modbus Serial Protocol Support
50
Supported Function Codes
50
Register Definitions for the C441 Motor Insight
50
Register Definition for the C440 Overload Relay
54
Register Definition for the S611 Soft Starter
56
Register Definitions for S811+ Soft Starter
59
Register Definitions for Use as Stand Alone I/O
65
