Operating Instructions

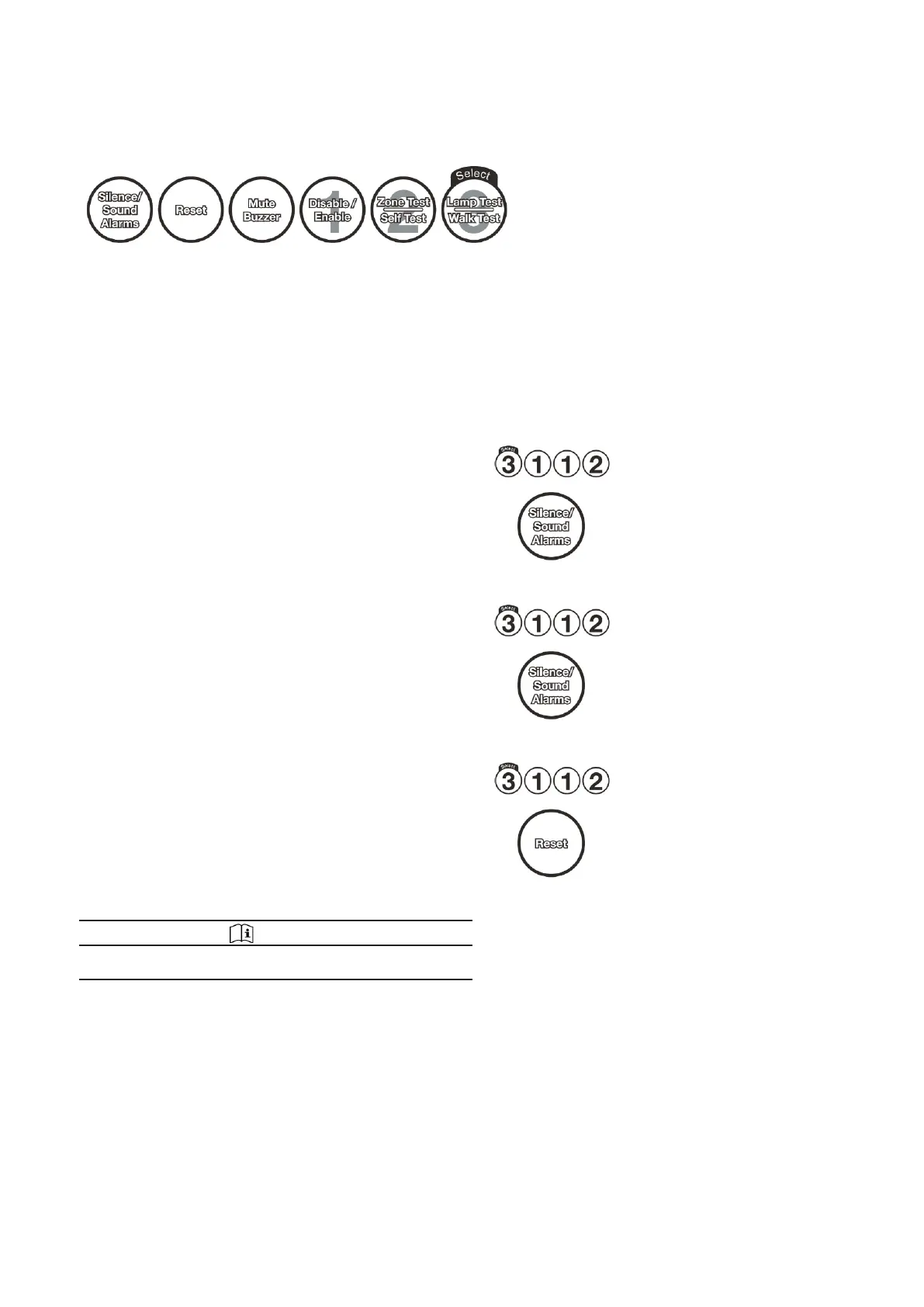

Multi-Function Buttons
The numerical value in the centre of the button is used to enter
access codes for level 2 and 3.
If the text in the centre of the button appears above a line (or
there is no line) then this function is applicable at access level 2. If
the text in the centre of the button appears below a line then this
function is applicable at access level 3.
The text above button 3 indicates that this button is the Select
button during the Disable/Enable and Individual Zone Test
functions.
Silence Fire Alarm Devices
This function is only available at access level 2 and when the
alarms are sounding.
• Enter the access code 3112.
• Press the Silence/Sound Alarms button.
• Only the fire alarm devices will stop sounding, the panel buzzer
will continue sounding.
• This function will immediately exit back to Access Level 1.
Sound Fire Alarm Devices
This function is only available at access level 2 and when the
alarms are silent.
• Enter the access code 3112.
• Press the Silence/Sound Alarms button.
• Only the General Fire indicator will be lit, the panel buzzer will
sound a continuous tone and all fire alarm devices will sound.
• This function will immediately exit back to Access Level 1.
Reset System
This function is only available at access level 2.
•
Enter the access code 3112.
•
Press the Reset button.
•
This will stop all fire alarm devices sounding, will stop the panel
buzzer and will reset the panel.
•
The panel will return to the normal condition after completing
the indicator test routine which turns each indicator on in turn
and then turns them off in turn.
NOTE
WHEN PERFORMING A RESET, ANY TEST CASES WILL BE
CLEARED.
Technical Data 25-16733-A
Effective
October 2019
