Eaton EFCV2Z User Manual

8
Technical Data 25-16733-A
Effective October 2019
Installation and operation manual for
conventional fire panels
EATON www.eaton.com
Control Panel Inputs and Outputs

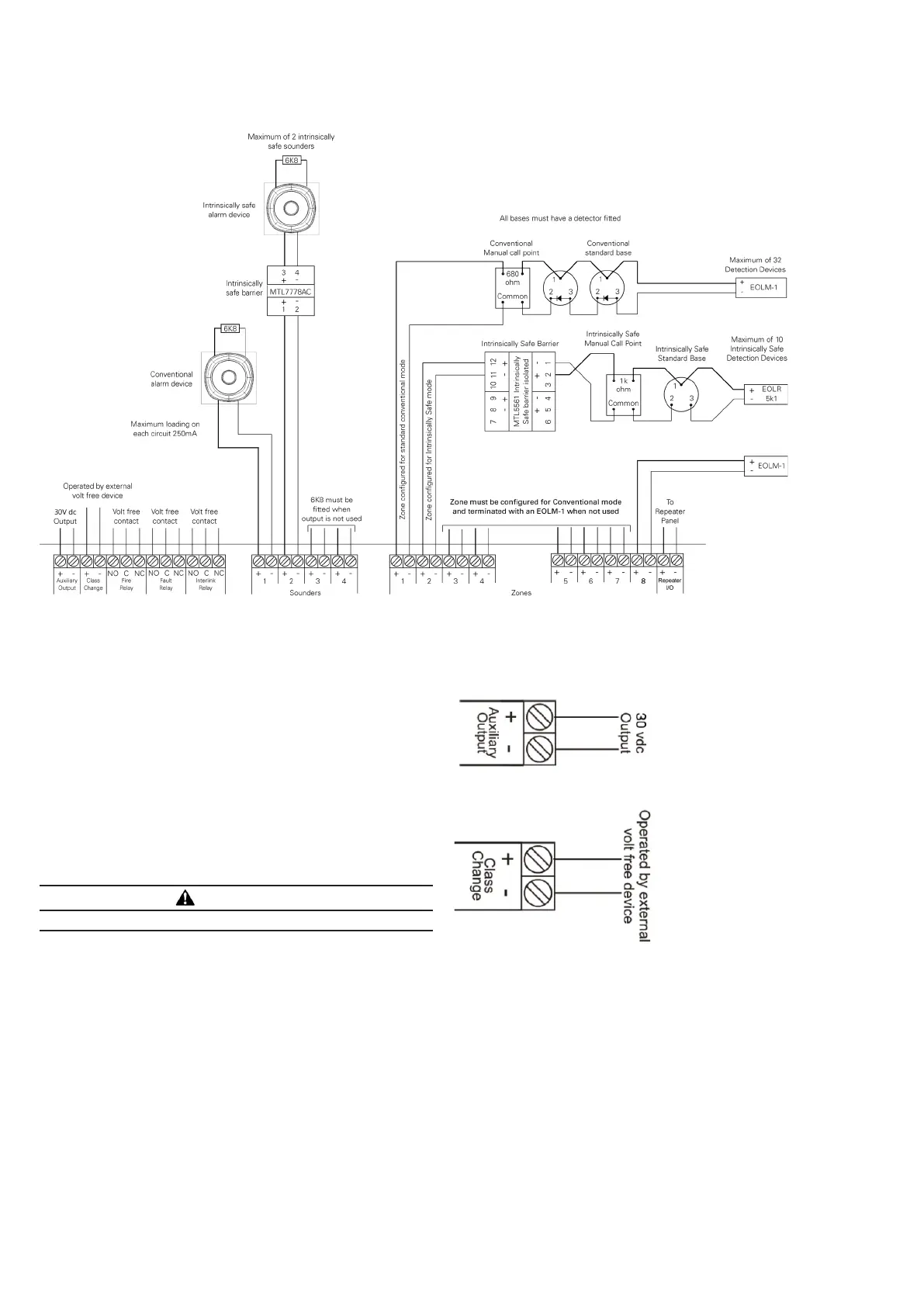

Figure 6. 8 Zone Panel Terminals
Auxiliary Output
The Auxiliary Output is a 30V DC output provided at the panel to
power ancillary equipment (Figure 7). The current consumed by
this output must be considered when calculating battery standby
times. The contacts are not monitored.
Class Change
The sounders can be operated by an external volt free contact
(Figure 8). A short circuit at this terminal will activate non-latching
sounders (no indication will show on the fire alarm panel). The
sounders will automatically silence when the short circuit is
removed. This is sometimes used for schools at class change
times.
WARNING
NO VOLTAGE SHOULD BE APPLIED TO THIS INPUT
Figure 7. Auxiliary output terminal
Figure 8. Class Change input terminal
