Status Indications

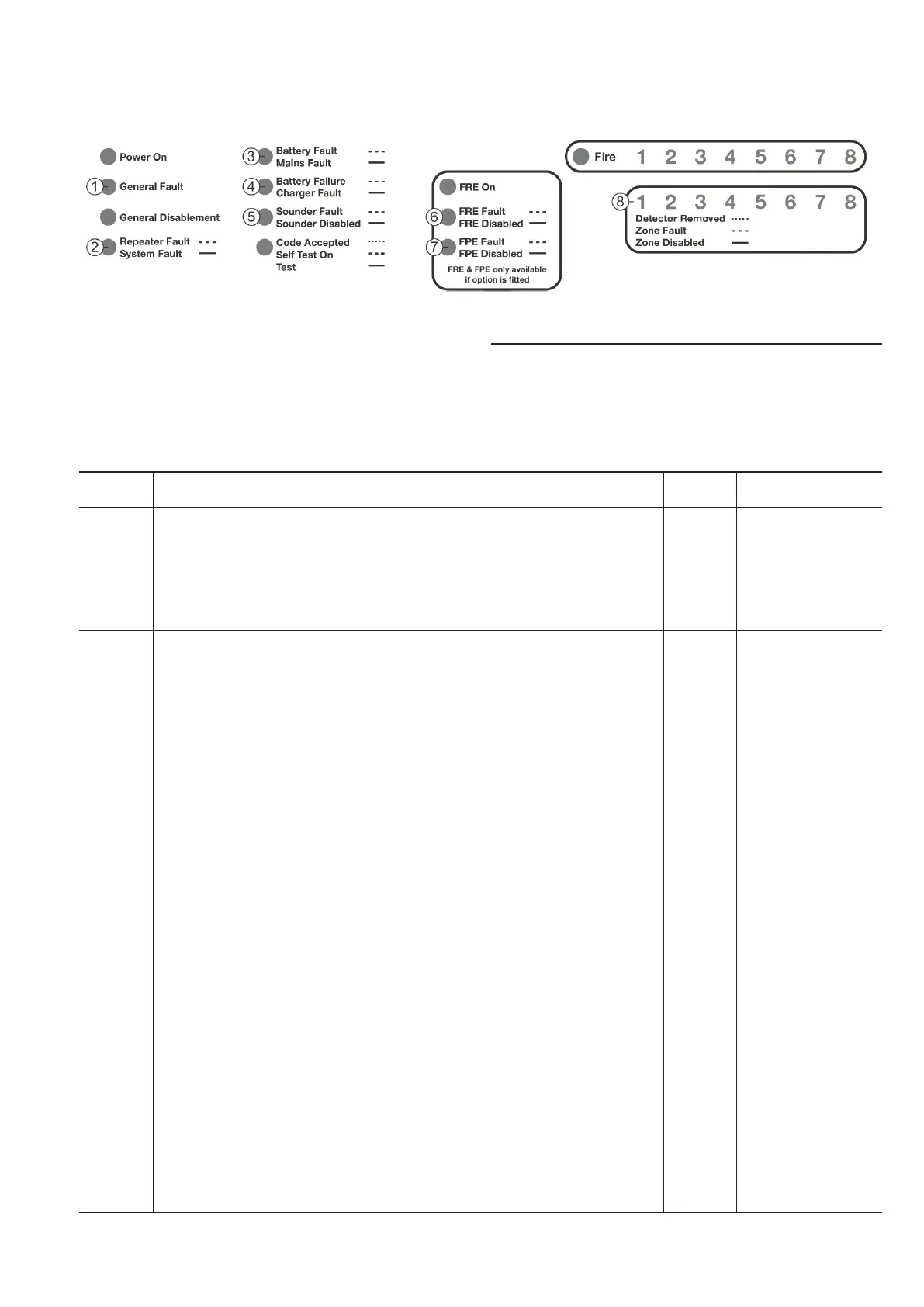

Figure 5. Front panel status indications
This section shows the status indications on the front panel
(Figure 5) with a table to show the meaning.
Visual indications Audible
Indications
Condition
Power ON General Fault General Disable Repeater Fault/ System Fault Battery Fault/ Mains Fault Battery Failure/ Charger Fault Sounder Fault/ Sounder Disabled Self Test On /Test FRE On FRE Fault/ FRE Disabled FPE Fault/ FPE Disabled General Fire Zone Fire (1-8) Detector Removed /Zone Fault/ Zone Disabled Fire Alarm Devices Panel Buzzer
Comments
Normal
Condition
ON OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF Normal condition and at access
level 1
Access Level
2 or 3
ON FAST Access level 2 or 3 pass code
accepted
Fire Condition ON ON ON ON CONT CONT Only the zone in fire will have
its’ zone fire indicator lit
System Fault ON ON ON SLOW Severe fault condition with
the panel
Repeater Fault ON ON SLOW SLOW Problem with the link between
panel and repeater
Battery Fault ON ON SLOW SLOW No battery voltage or battery
voltage too low
Mains Fault ON ON ON SLOW Mains voltage has been lost
Battery Failure ON ON SLOW SLOW Battery impedance fault
Charger Fault ON ON ON SLOW Charger voltage fault
Sounder Fault ON ON SLOW SLOW Short or open circuit condition
on a zone
FRE Fault ON ON SLOW SLOW Short or open circuit condition
on a FRE
FPE Fault ON ON SLOW SLOW Short or open circuit condition
on a FPE
Zone Fault ON ON SLOW SLOW Short or open circuit condition
on the zone
Detector
removed
ON ON
FAST SLOW Detector removed on the zone
Sounder
disabled
ON ON ON All fire alarm devices on all
zones disabled
FRE disabled ON ON ON FRE disabled
FPE disabled ON ON ON FPE disabled
Zone disabled ON ON ON Zone is disabled from fire
detection
Self test active ON SLOW SLOW The panel is in self test mode
Individual Zone
test active
ON ON ON SLOW Individual zone is in test mode
and awaiting fire activation
Walk test
active
ON ON SLOW Panel is in walk test mode and
awaiting fire activation
KEY
ON (---------) Indicator lit
OFF Indicator unlit
SLOW ( - - - - ) Indicator slow flashing, buzzer slow pulsing
FAST ( - - - - - ) Indicator fast flashing, buzzer fast pulsing
SILENT Sounders off, buzzer off
CONT Sounders on, buzzers continuous
Any condition could be indicated
