Installation and operation manual for
conventional fire panels
EATON www.eaton.com
Option Board Specification
EFCV2ZONE EFCV4ZONE EFCV8ZONE
Operating Voltage
18.75-30.7V DC
FRE Output Rating 24V, 50mA
Fuse 50mA PTC
EOLR 6.8KΩ
FPE Output Rating 24V, 50mA
Fuse 50mA PTC
EOLR 6.8KΩ
Number of Auxiliary Relays 2 4 8
Auxiliary Relays
(Un-monitored)
Type Volt-Free, Single Pole Double Throw
Rating 30V DC, 50mA
Fuse 500mA PTC

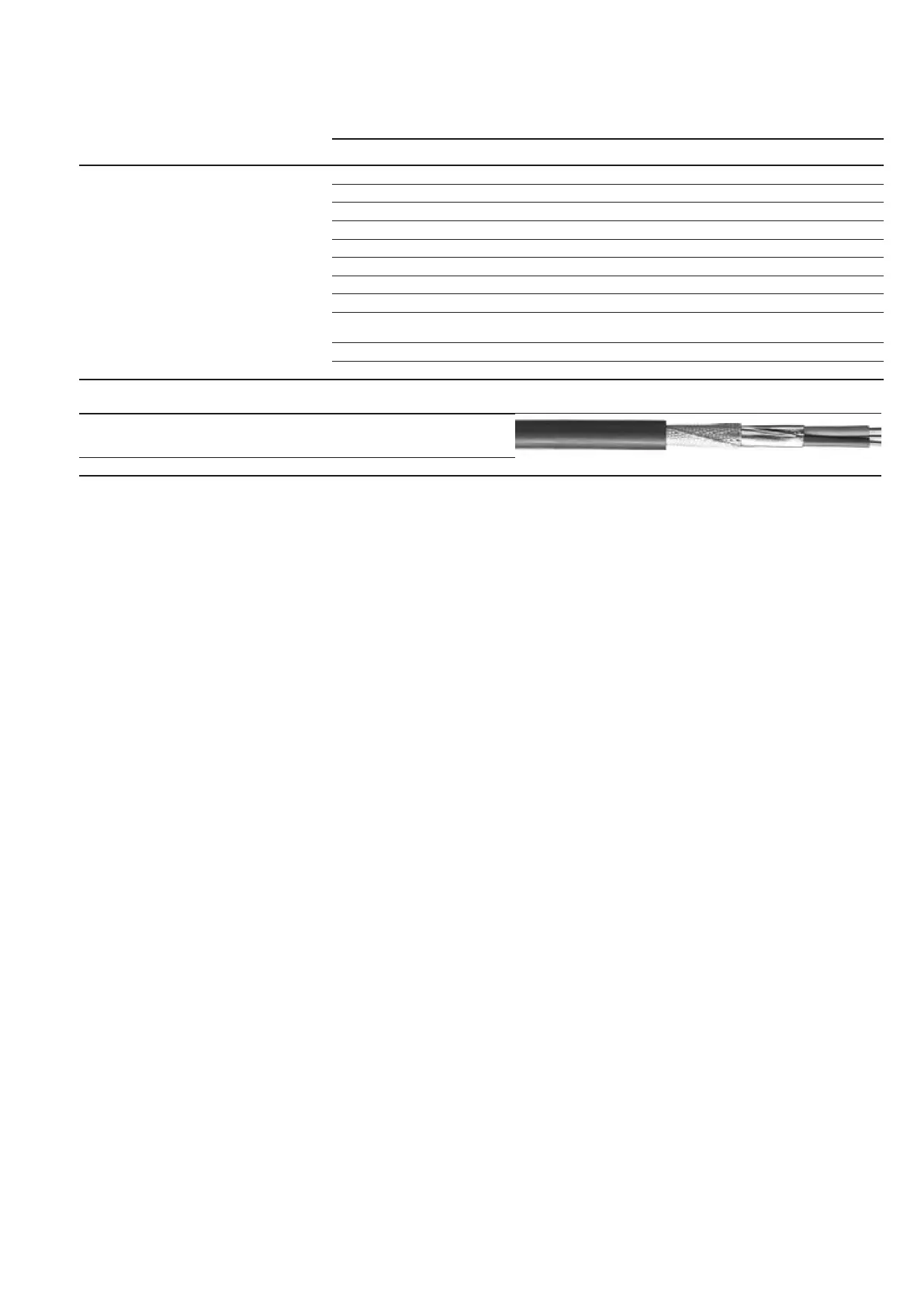

Cable Specification
Recommended Cable size 1-1.5mm2, Cable type - Firetuf FT120 /FP200
Manufacturer Draka UK to Standard - suitable for all applications described in BS5839-1:2013, 6, 8 & 9 and BS5266-1
Technical Data 25-16733-A
Effective
October 2019
