Inverter Static Switch (ISS)

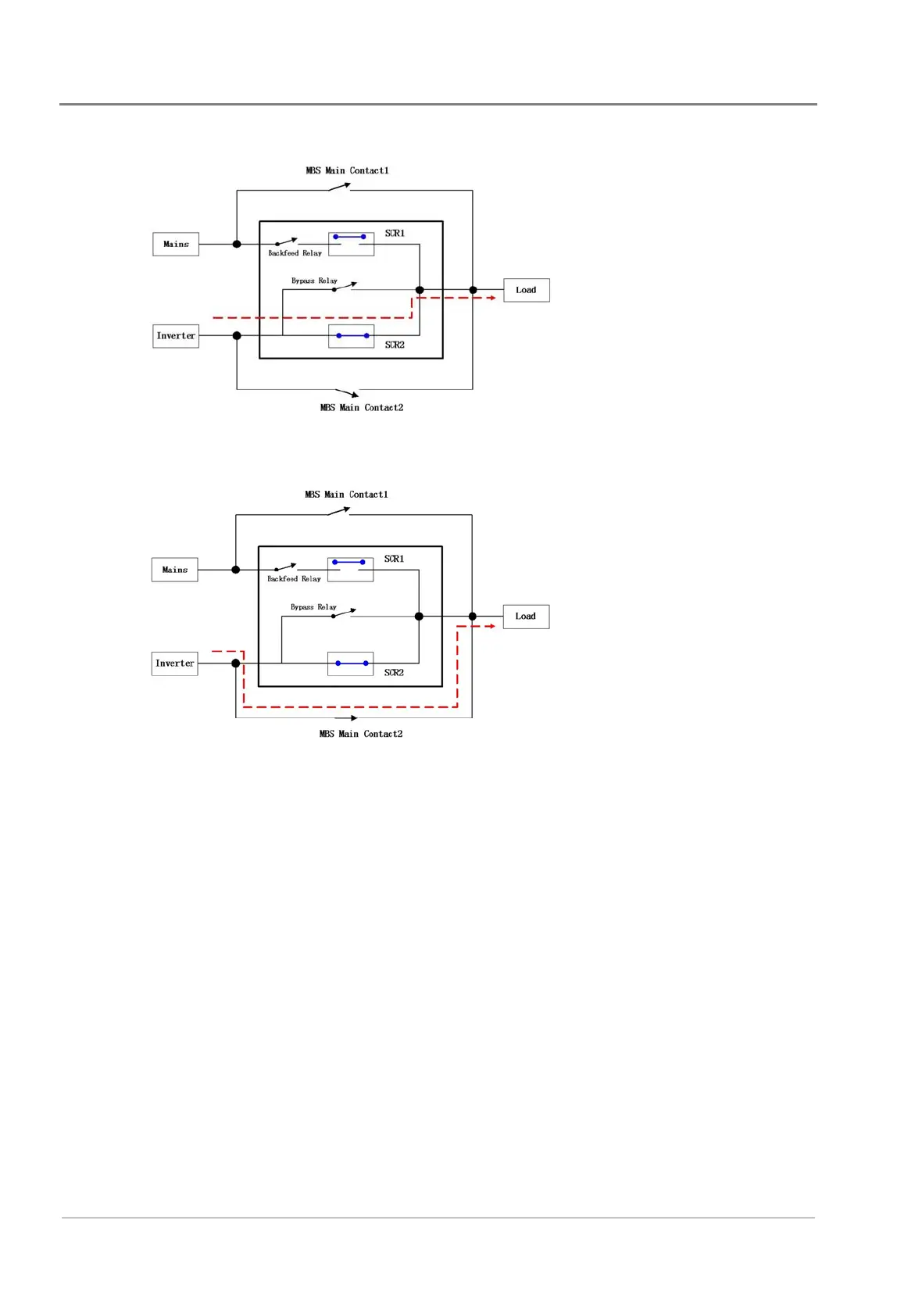

ISS (Inverter Static Switch):
• Inverters power the load
through the STS
• AC mains is disconnected
from the system, and the
STS cannot be removed
from the system
• MBS can be switched to
Normal Operation and
Inverter Bypass position
• Back-feed Relay and SCR1
open, SCR2 closed
Inverter Bypass (IBP)
Inverter Bypass (IBP):
• Load is powered through
the MBS by the inverters.
• STS can be removed from
the system
• MBS can only be switched
to Inverter Static Switch
position
• Back-feed Relay and SCR1
open, SCR2 closed
