107
© 2017 Eaton. All rights reserved
2018.12.12
MHP/MXP/VHP/VXP Auxiliary Section Assembly and Installation | Service Procedures TRSM0940
Auxiliary Mainshaft Assembly

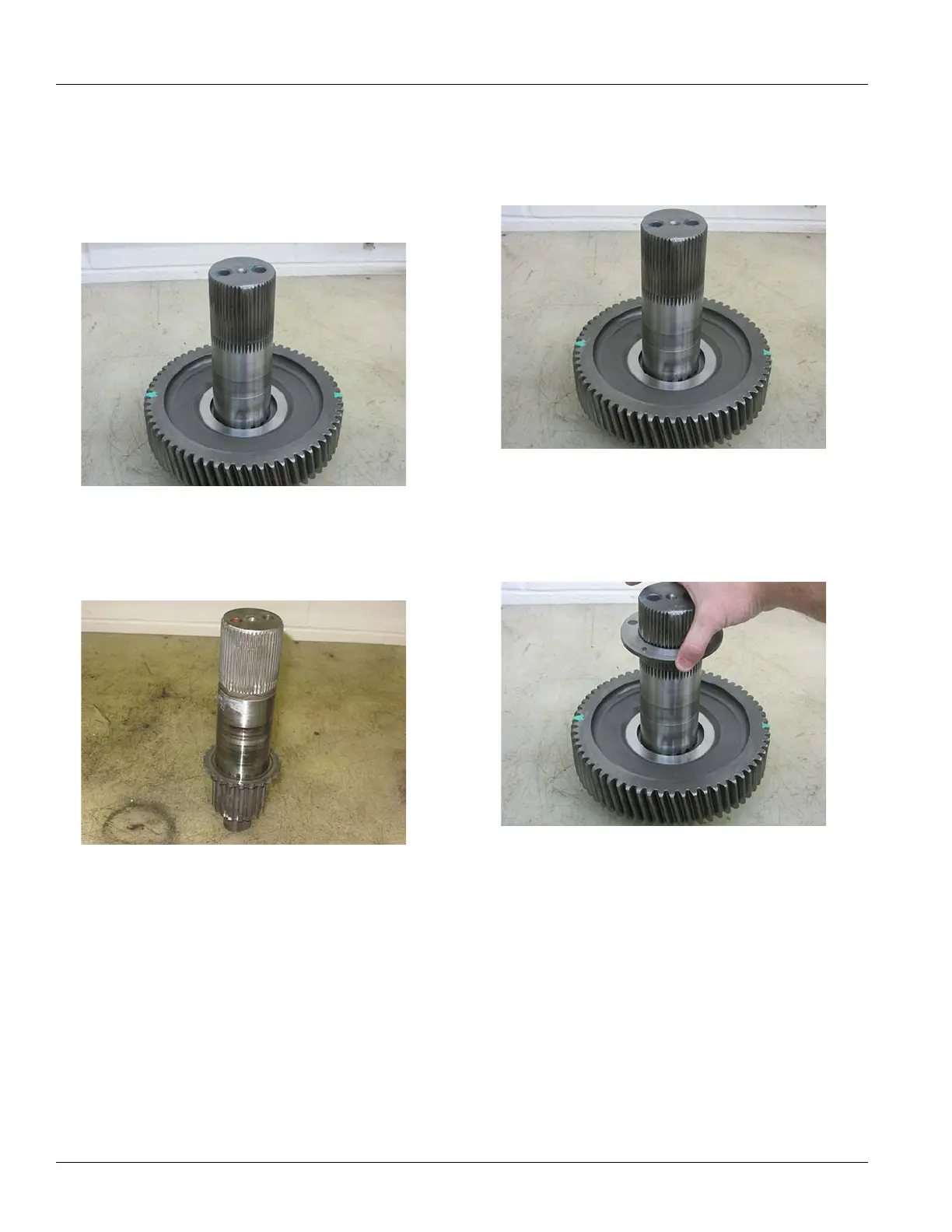

1. Prepare the Reduction Gear for timing. Mark any one
tooth on the gear and repeat on the tooth directly
opposite of the first marked.
2. With the splined washer
facing up, place the washer on
the Output Shaft shoulder
3. Position the
Reduction Gear on the Output Shaft with
the clutching teeth facing down. Engage the washer
splines to fully position the gear.
4. Position the
Reduction Gear Rear Washer on the Out-
put Shaft with the chamfer side up against
the Reduc-
tion Gear.
