TRSM0940 Service Procedures | MHP/MXP/VHP/VXP Auxiliary Section Assembly and Installation

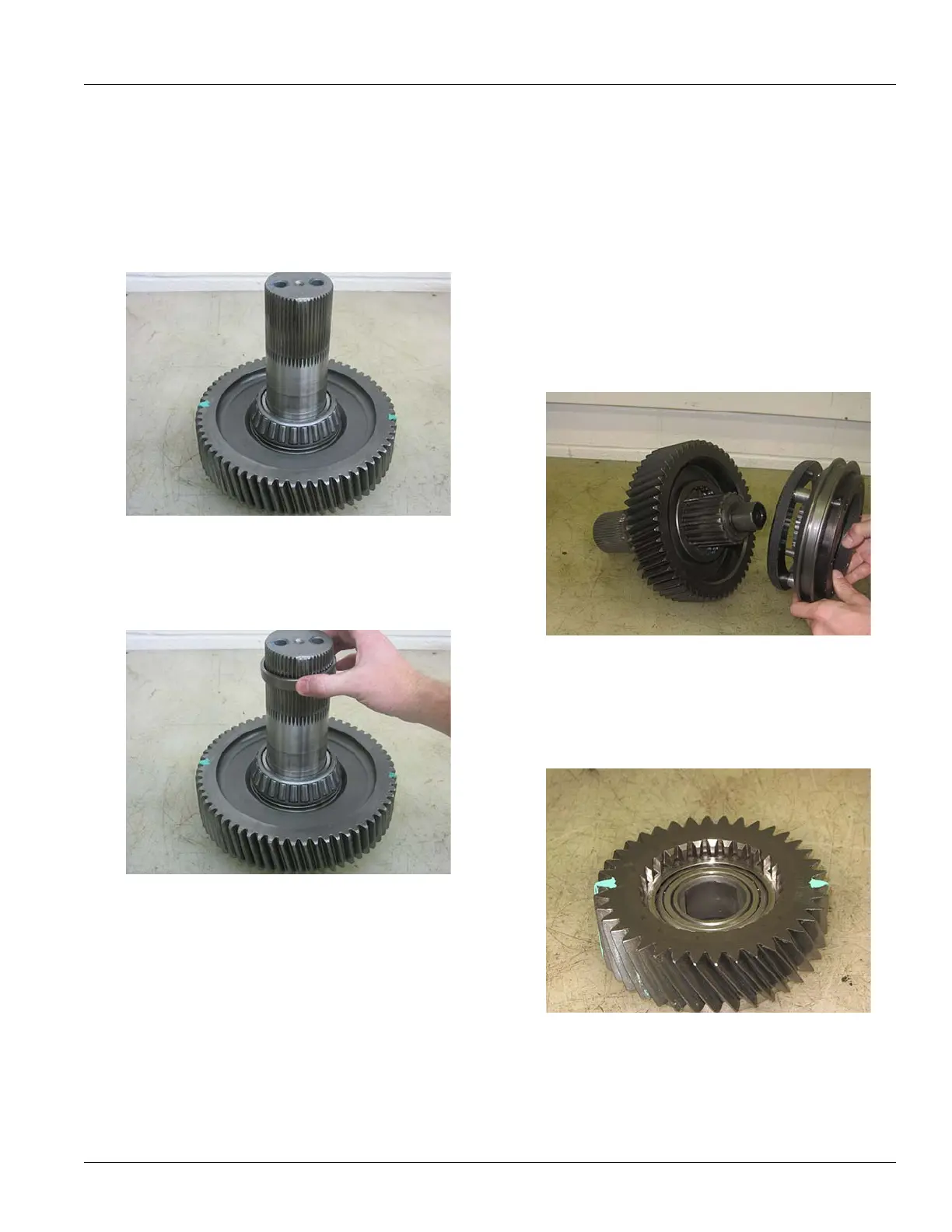

5. With the tapered side up, use heat, or a small punch to
install the Output Shaft Rear Bearing.
Note: A Bearing Driver
can also be used to seat the
bearing, however if using a bearing driver, install the
Bearing inner spacer prior to driving to avoid getting
the driver stuck on the shaft.
6. Install the Bearing
Inner Spacer on the Output Shaft.
Set aside once installed.
Synchronizer Assembly and Splitter Gear
Installation
1. Lay the Auxiliary Mainshaft Assembly on its side.
2. Install
the Synchronizer Assembly on the Auxiliary
Mainshaft Assembly.
Note: Ap
ply light coating of transmission lubricant to
the surface of the synchronizer assembly.
Note: For Synchronizer Assembly/Disassembly,
see
the section, Synchronizer Disassembly and Assembly
in this manual.
3. Prepare the
Splitter gear for timing. Mark any tooth
splitter gear and repeat on the tooth directly opposite
of the first marked.
