Chengdu Ebyte Electronic Technology Co.,Ltd. 【8DO】MA01 -XXCX0080 User Manual
Copyright ©2012–2021，Chengdu Ebyte Electronic Technology Co.,Ltd.
4.Product functions
4.1 Switch output DO
4.1.1 Switch output DO description
Switch output DOwith level mode, pulse mode, follow mode (follow DIonly). With the Type C relay output
(normally on and normally closed), the single output supports a maximum load (contact capacity) of 30V/10A or
250V/10A.
Each DO output is designed with an output indicator (red LED indication) indicating that the output port is off.
When the LED is on, it means that the relay is sucked (normally on, normally closed and disconnected); When the LED
is off, the relay is not sucked (normally open, normally closed).

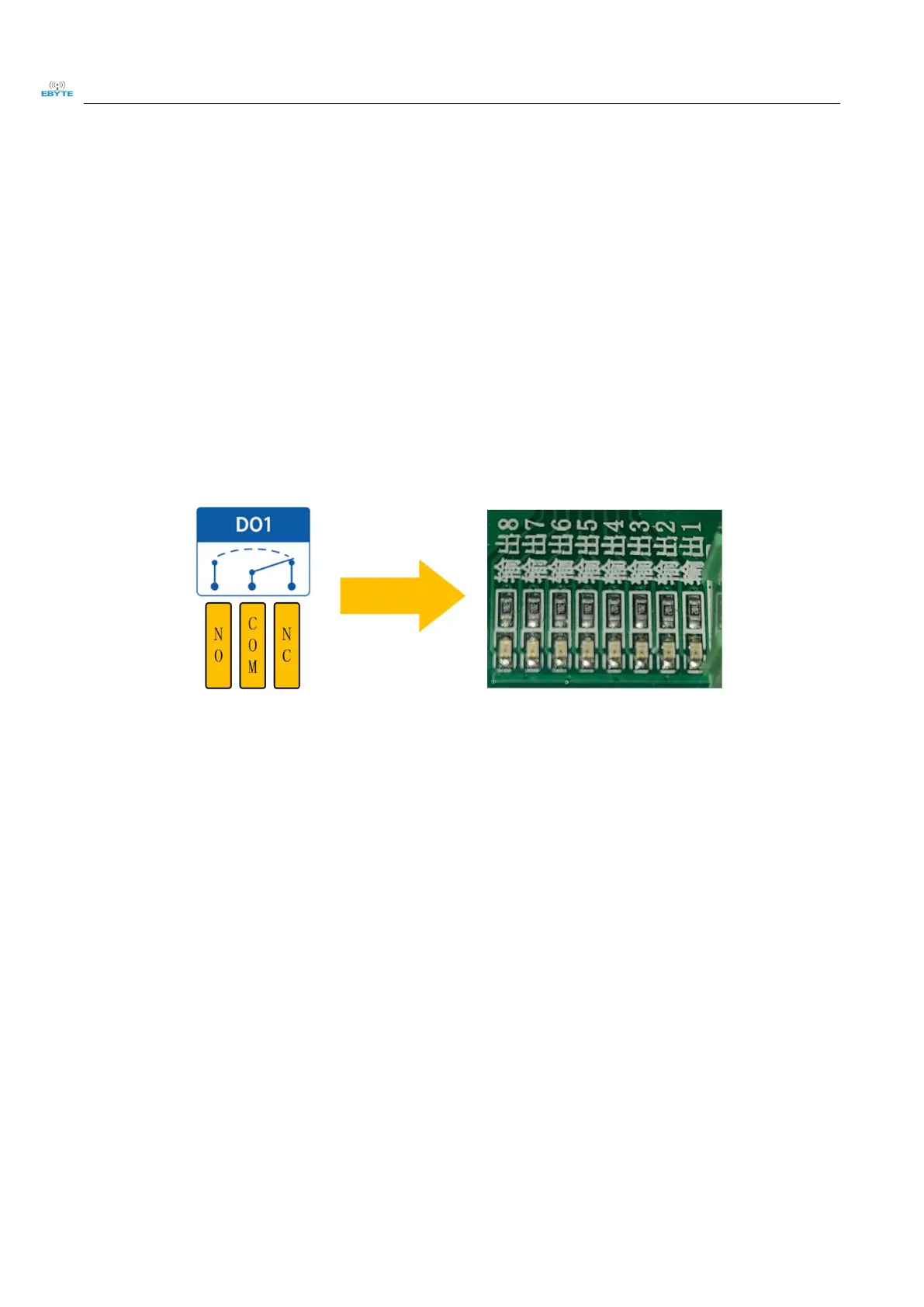

Figure 4-1-1 Switches output DO interface
4.2.2 Switch output DO mode settings
(1) level mode
Depending on the level set by the user, the switching characteristics of the level mode are similar to those of the
self-locking switch.
(2)pulse mode
When the switch output DO is on, the switch output DO switches off automatically after the set pulse width time (in
ms) is maintained. Pulse width settings range from 50to65535(default 50).
(3) Follow the mode
After the user sets the follow mode, set the following input after. The switch output DO side is consistent with the
DI input.
Note: Multiple switch output DO ends can be set to follow one DI input, not one switch output DO side to follow
multiple DI inputs.
