Chengdu Ebyte Electronic Technology Co.,Ltd. 【8DO】MA01 -XXCX0080 User Manual
Copyright ©2012–2021，Chengdu Ebyte Electronic Technology Co.,Ltd.

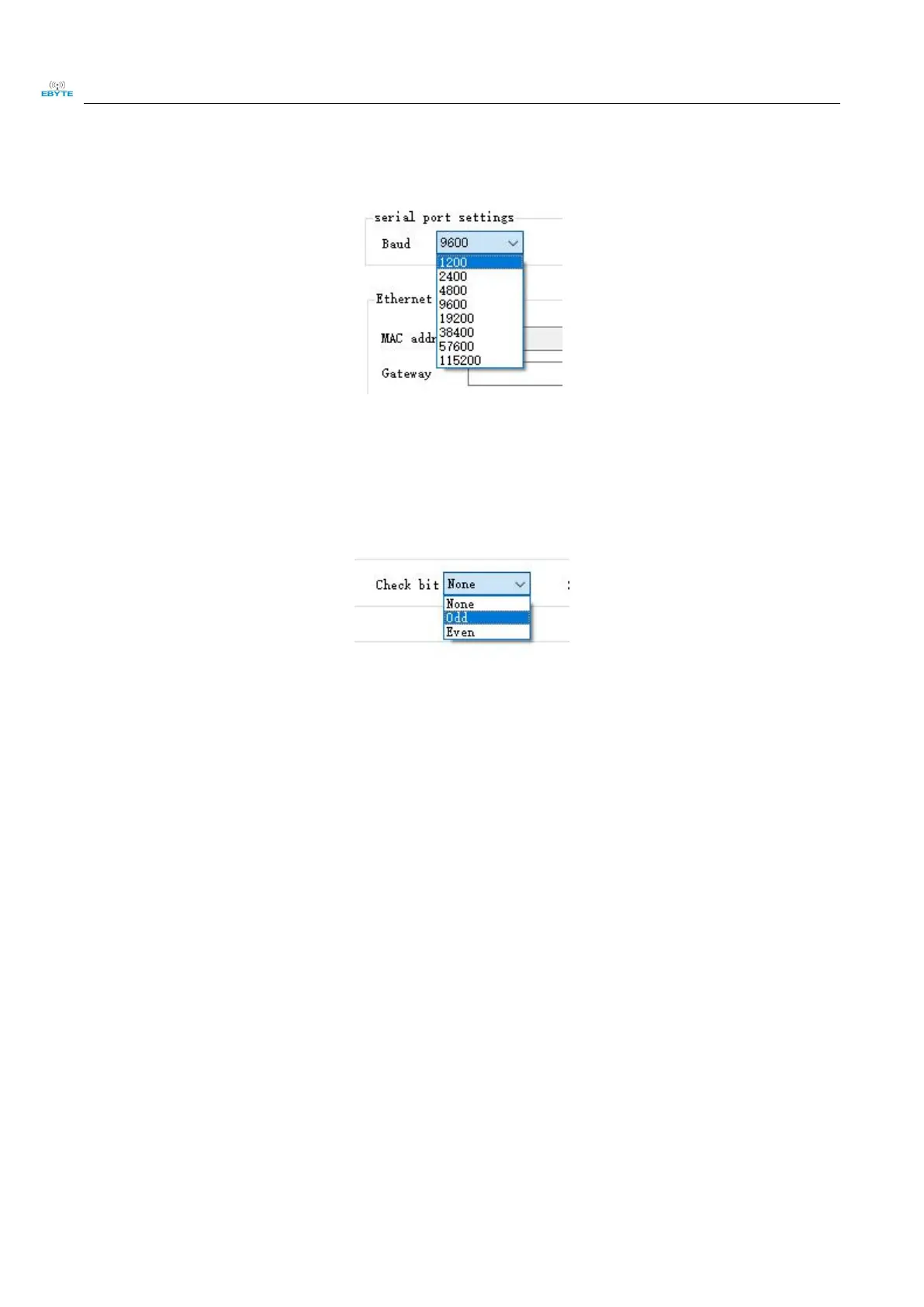

(2)Device serial settings
Supports setting Baud Rate(1200,2400, 4800,9600,19200,38400,57600,115200)by default 115200.
Figure 6-2-14 Baud Rate Settings Interface
Supports setting check bits, which can be set (none, parity, parity), and no checks by default.
Figure 6-2-16 Check bit settings interface
6.3 Device status query
The configuration software supports device status queries, and once the device is connected, the device status can be
queried through the Refresh All Data menu.
Example: The configuration software is connected to 2 devices, try to query select one of the devices, click on the
"Refresh all data" menu, complete the device status query.
(1)IO demo interface
