Chengdu Ebyte Electronic Technology Co.,Ltd. 【8DO】MA01 -XXCX0080 User Manual
Copyright ©2012–2021，Chengdu Ebyte Electronic Technology Co.,Ltd.
4
1.Product introduction

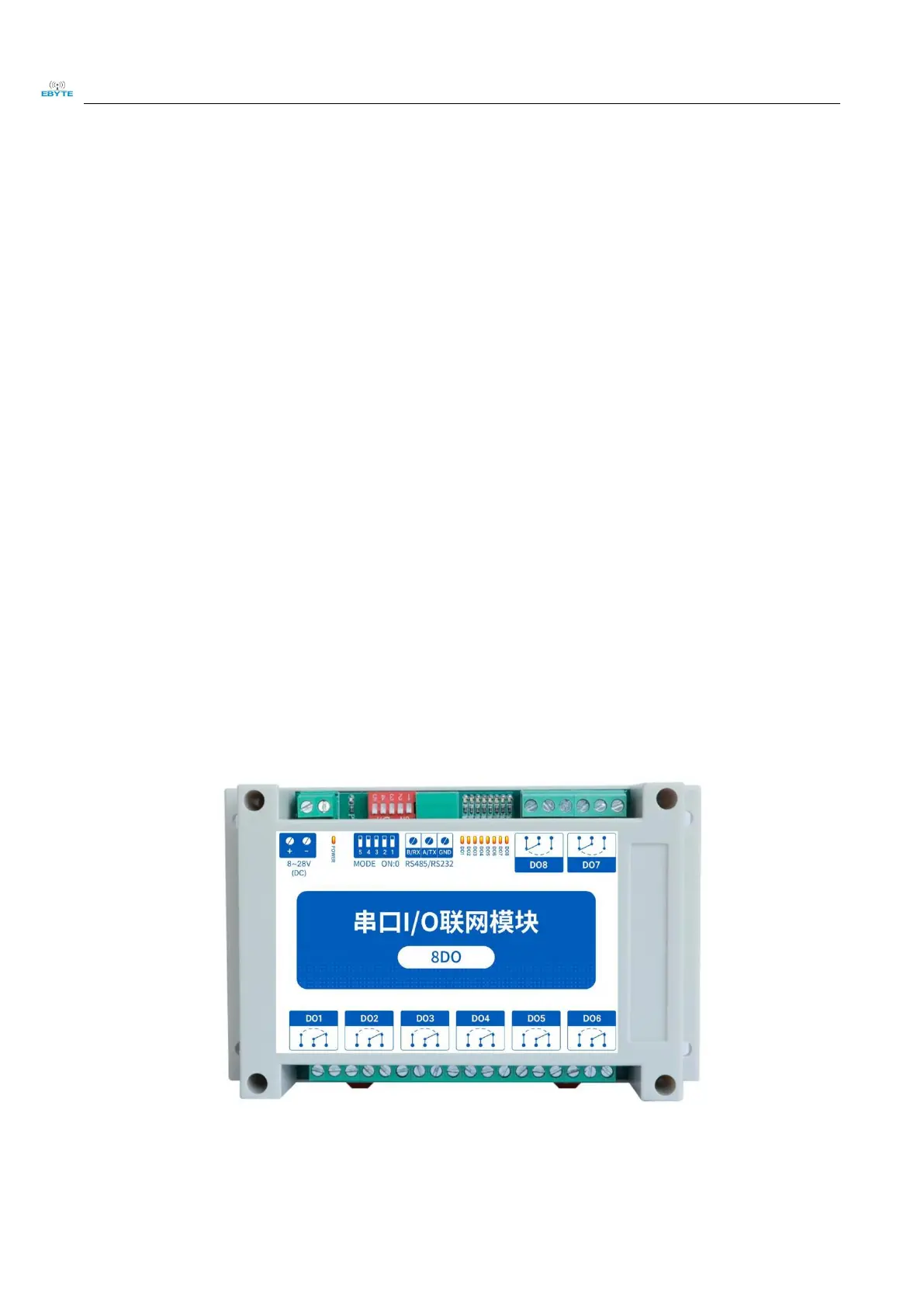

MA01 -XXCX0080 is a supporting configuration software or PLC, through the serial port (RS485) issued
instructions to control the 8 relay switch output (DO), to achieve remote control function of the serial I/O networking
module (also known as "remote IO").
Features
 Support for modbus RTU protocols;
 Support for all types of configuration software / PLC / touch screen;
 RS485 controls the IO;
 DC 8to28V power supply;
 8 switch output DO(relay);
 Switch output(DO)supports level mode, pulse mode;
 Communication Baud Rate 1200to115200(default 9600),supports custom settings;
 Support for 1to247 substations,5-bit dial switch can be set 1to31 address code, greater than 31 can be set by
software.

Ebyte 8DO Specifications

General

Brand	Ebyte
Model	8DO
Category	Modem
Language	English
