Note: The figure above takes the contactor coil voltage AC 220V as an example, the coil voltage may be different from
contactor.
5.2.3 Output Control Contactor (Contactor Control High Power 380V Device).

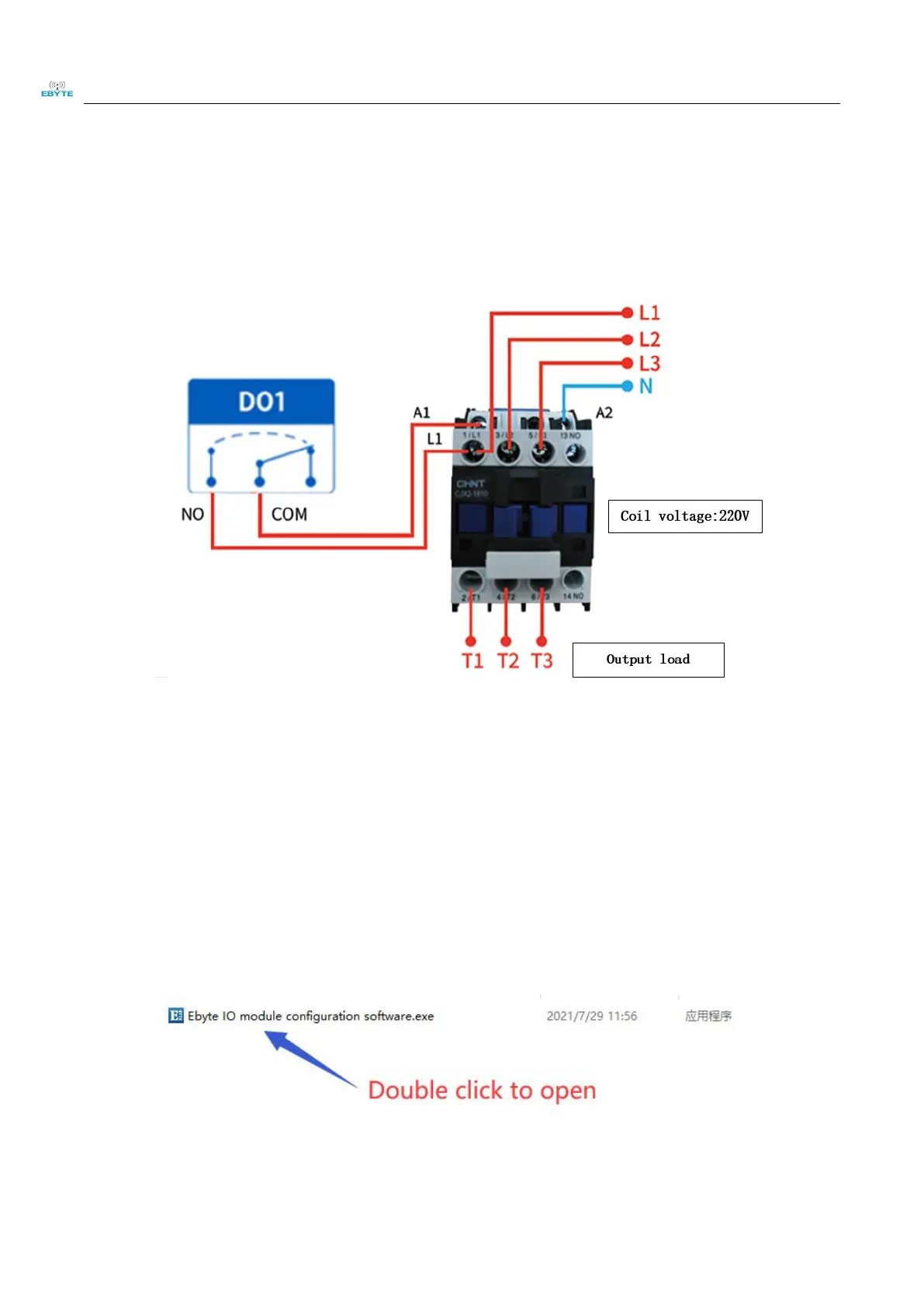

Figure 5-2-3 Output Control Contactor Wiring Diagram
Note: The figure above takes the contactor coil voltage AC 220V as an example, the coil voltage may be different from contactor.
6.The use of software
6.1 Software installation
The configuration tool software is driver-free and is ready to use by double-clicking directly on the .exe file open.
Figure 6-1-1 Software Installation File
