Ebyte 8DO User Manual

Chengdu Ebyte Electronic Technology Co.,Ltd. 【8DO】MA01 -XXCX0080 User Manual
Copyright ©2012–2021，Chengdu Ebyte Electronic Technology Co.,Ltd.
18

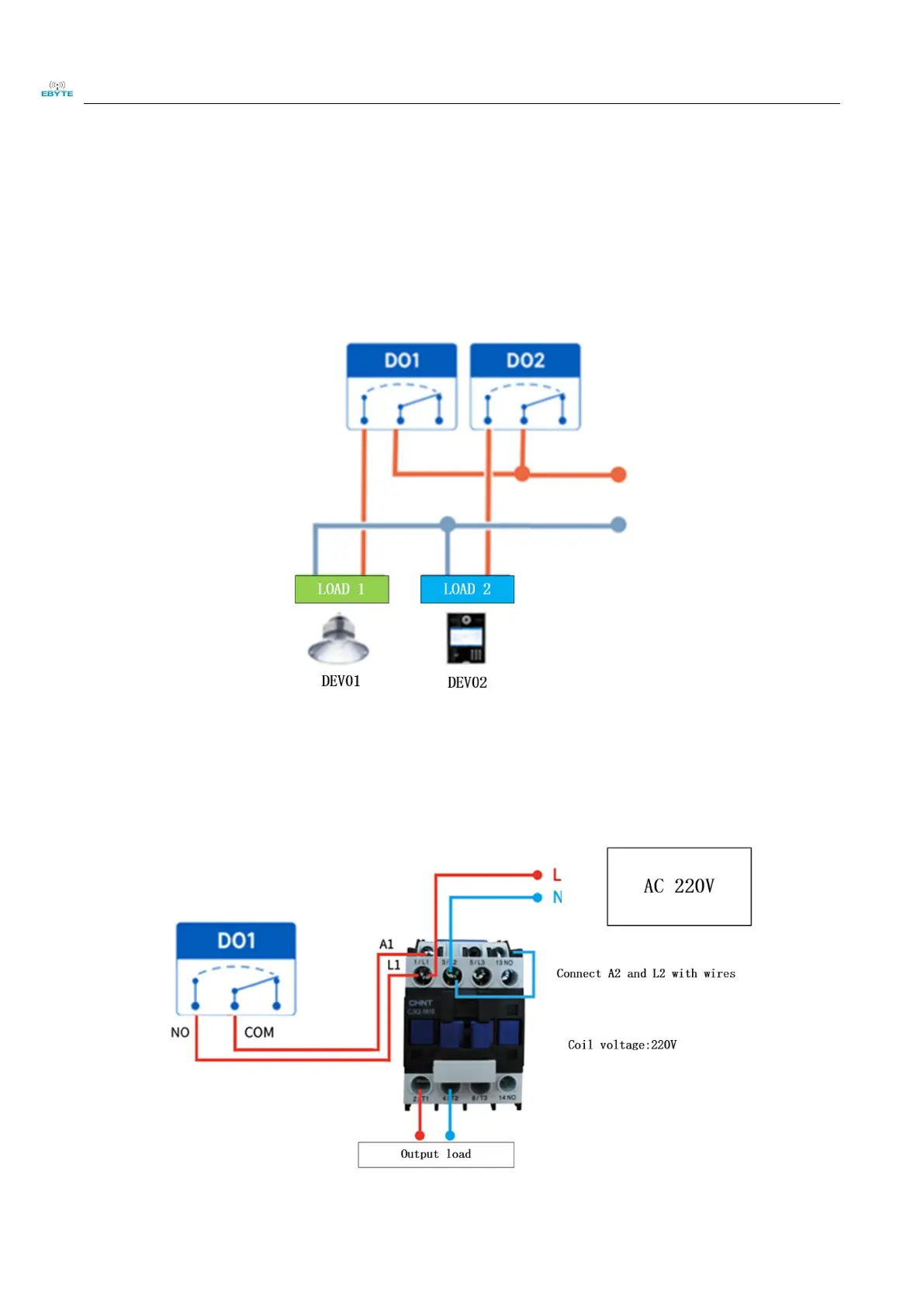

5.Port wiring
5.1 Switch output DO port wiring
5.1.1 Output direct control load (small power device within 1kW).
Figure 5-1-1 Output Direct Control Load Wiring Diagram
5.2.2 Output Control Contactor (Contactor Control High Power 220V Device).
Figure 5-2-2 Output Control Contactor Wiring Diagram
